Camera rotation 5.10

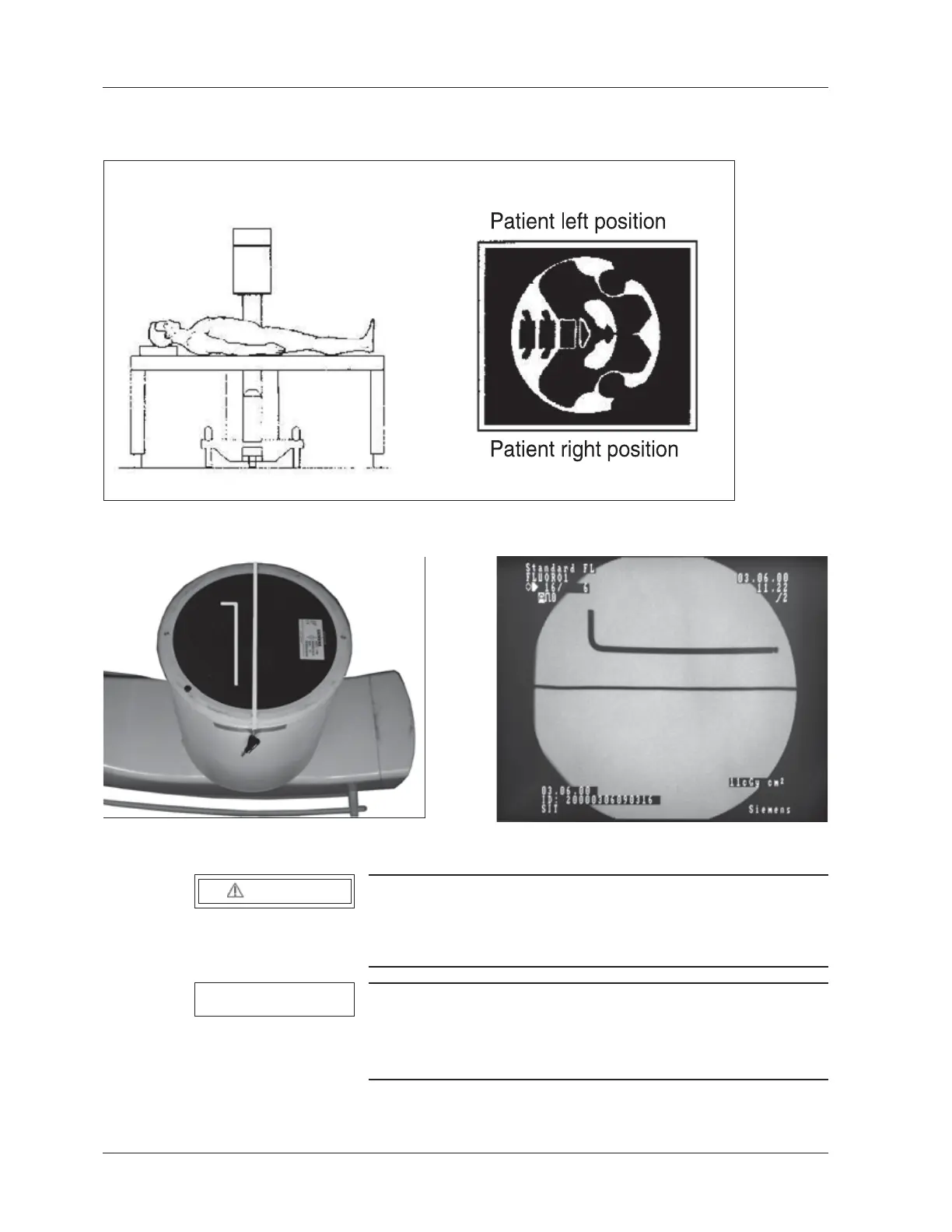

Fig. 20:
WARNING
X-ray radiation!
¹ See (Safety information / p. 11).
¹ Radiation protection is required. Wear a lead apron.
NOTE
The keys for horizontal and vertical image reversal must be
off before the camera rotation is adjusted. Camera rotation
should be set in the 0° position. (Fig. 20 / p. 62),
(Fig. 21 / p. 62) and (Fig. 22 / p. 62) show the 0° position.
Fig. 21:
Fig. 22:
