140 Brakes / Movements
SIREMOBIL Iso-C SPR2-230.840.01.01.02 © Siemens, 2008
08.08 CS PS SP
Page 140 of 148
For internal use only
Vertical lift brake 7.3
WARNING
Risk of injury!
Noncompliance can lead to medium to severe injuries and/or
property damage.
¹ To replace the vertical lift brake, the SIREMOBIL Iso-C
must be placed on its side. This requires 6 people. To
prevent damage to the SIREMOBIL Iso-C or the floor,
we recommend using several wool blankets or corru-
gated cardboard or other suitable floor covering.
x Remove the basic unit cover.
x Carefully place the SIREMOBIL Iso-C on its side.
x Remove plug D30.X8 and eject the contacts.
x Remove the three attachment screws for the vertical lift brake and replace the brake.
x Remove plug D30.X8.
x Eject the contacts from plug D30.X8.
x Route the wires of the new vertical lift brake to board D30 and insert the contacts into
the plug housing.

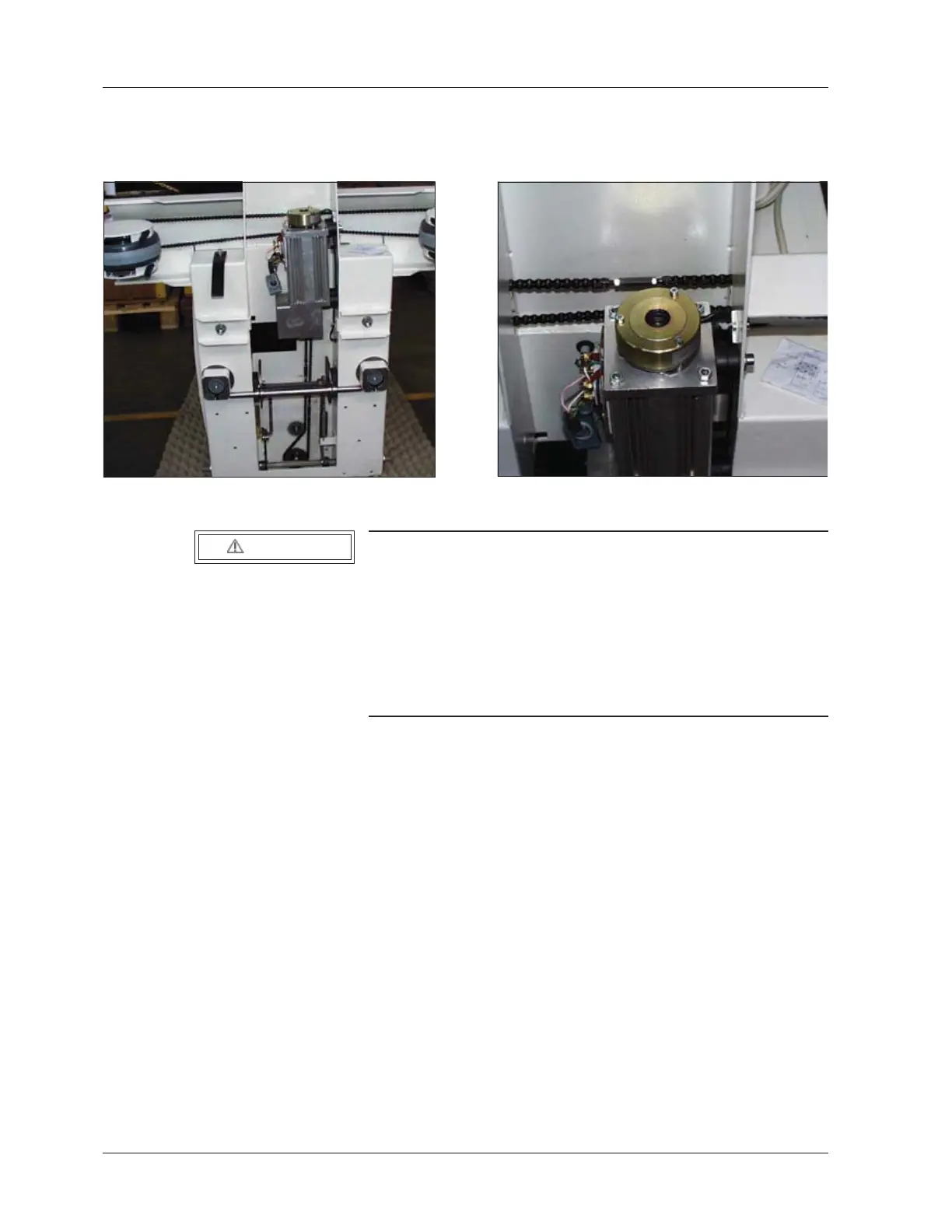

Fig. 55:
Fig. 56:
