Brakes / Movements 135
Page 135 of 148
For internal use only
7- 7Brakes / Move ments
Brake force / brake torque 0

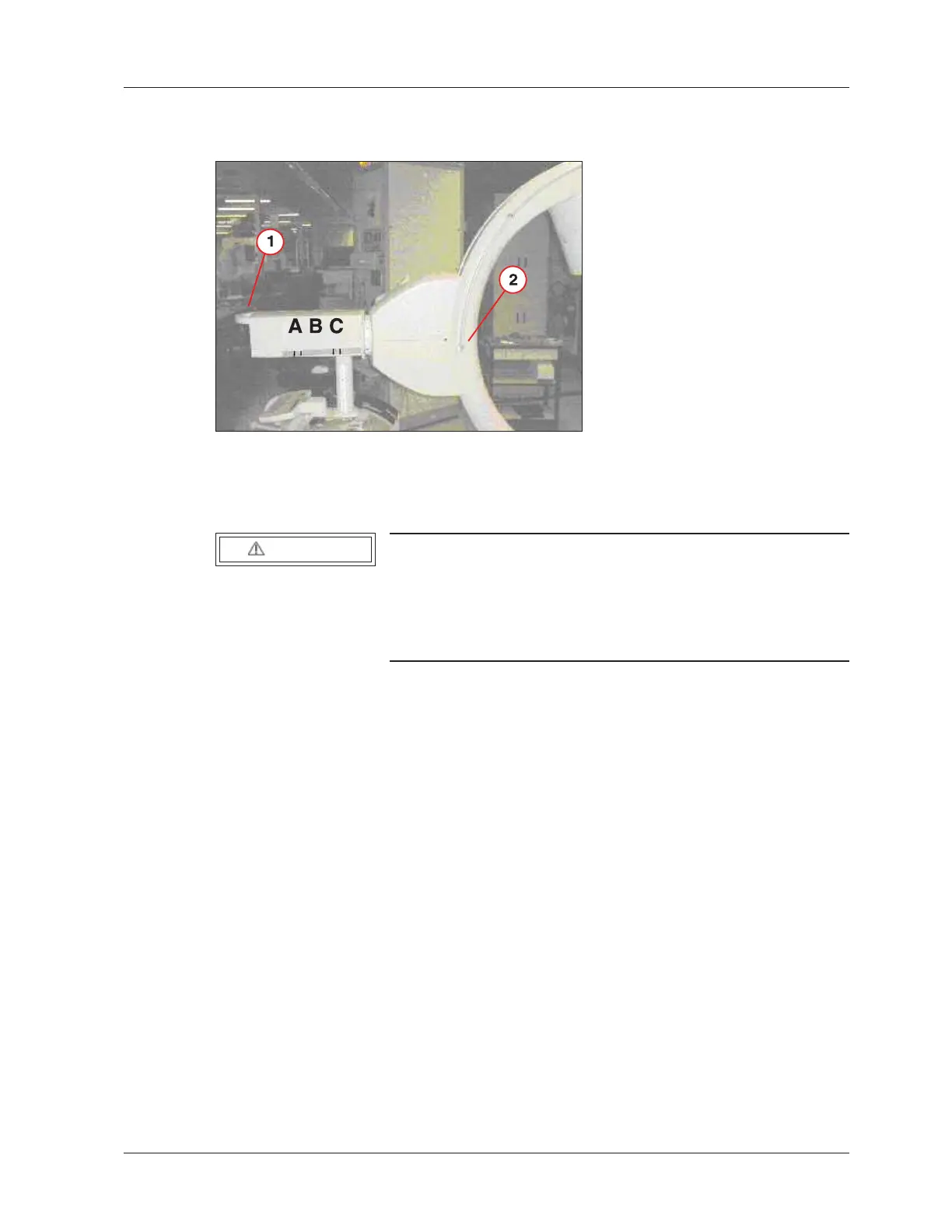

Fig. 52:
Pos. 1 Attachment points - spring scale
Pos. 2 Attachment points - spring scale
WARNING
Risk of injury on mechanical parts!
If these guidelines are not followed, minor to moderate injury,
especially to the hands, can occur.
¹ Follow the notes concerning the C-arm carbon fiber
structure.
Measuring the horizontal force required for movement 0
The attachment point for the spring scale is the end of the railing near the image intensifier
in sector B and/or the handgrip of the horizontal carriage. The carriage must always be
pulled at a constant speed.
¹ The maximum force for moving the horizontal carriage consistently when the
brakes are released is 80 N.
¹ When the brakes are applied, the force must be t180 N.
Measurement A-C: At the handgrip of the horizontal unit, the measuring
points move to 30, 170 and 200 mm
Measurement C-A: At the railing near the image intensifier, the measur-
ing points move to 30, 170, and 200 mm
