WARNING
Electrical voltage!
Refer to (Safety information / p. 11).
¹ Disconnect the line voltage plug prior to removing cov-
ers.
Basic system 0
Removing the cover
x Apply the foot brake.
x Remove the screws from the cover.
x Pull the cover back.
x Unscrew the protective conductor from the cover.
x Pull the cover completely off and remove it.
Installing the cover
x Reattach the ground wire to the back cover.
x Push the cover forward.
x Replace the cover and tighten the screws.
Horizontal carriage cover 0
Removing the cover

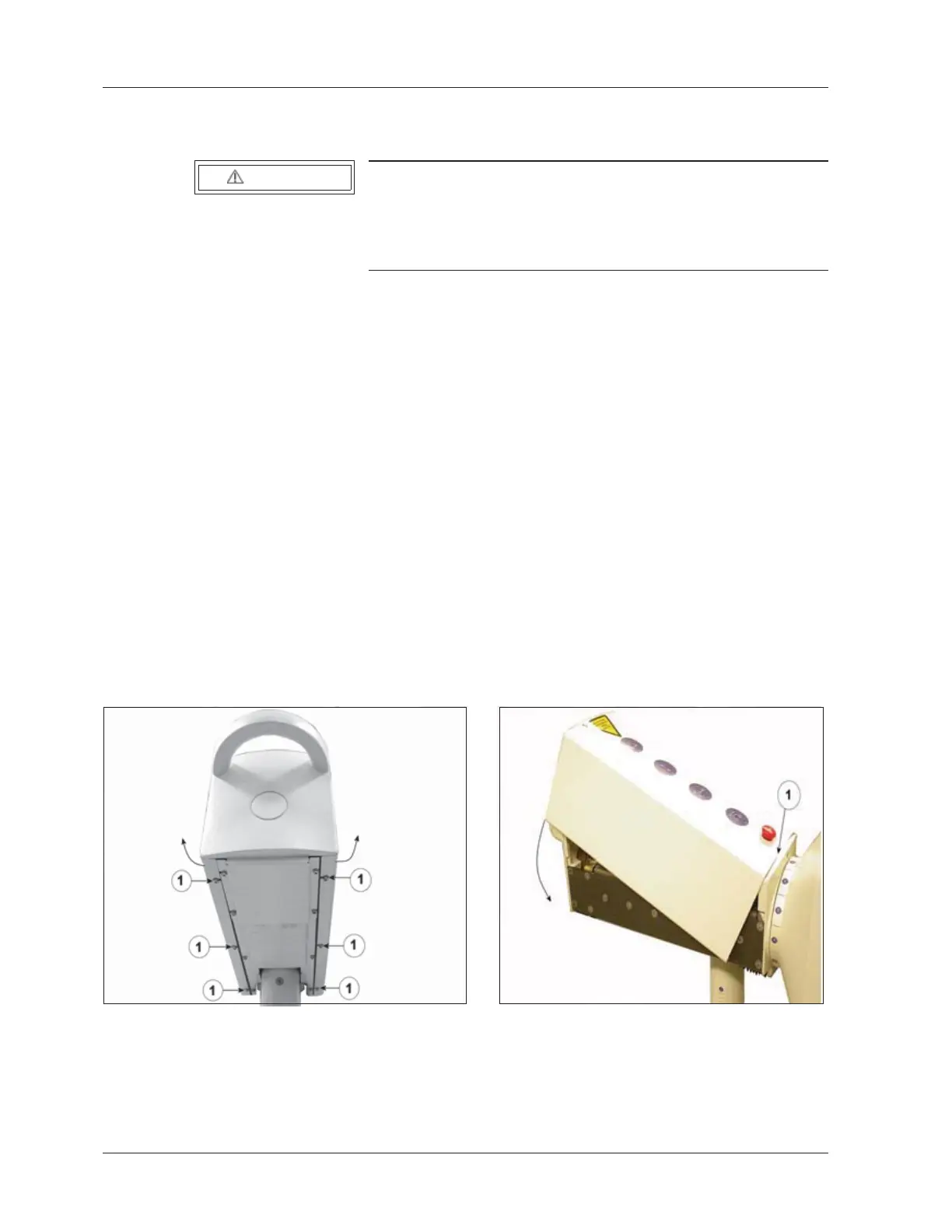

Fig. 5:
Fig. 6:
