66 Adjustments / Programs
SIREMOBIL Iso-C SPR2-230.840.01.01.02 © Siemens, 2008
08.08 CS PS SP
Page 66 of 148
For internal use only
Checking the programmed values 0

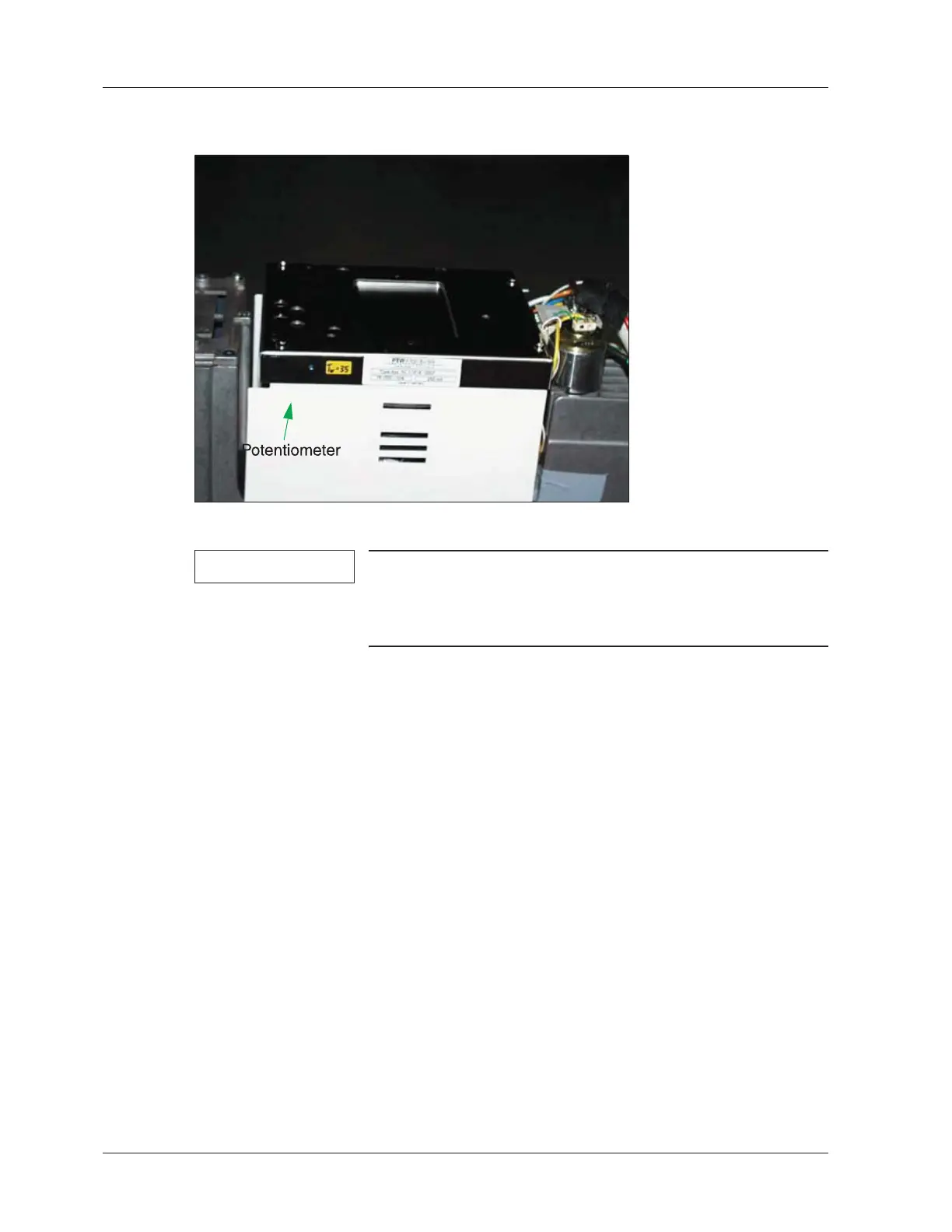

Fig. 23:
NOTE
Checking the programmed values will activate the self-test in
the electronic system of the dose-area product measurement
device. This serves to recalibrate the electronic system of the
dose-area product measurement device.
Prerequisites
The T
w
value is already programmed. See Programming.
x Connect the service PC to the serial interface of the SIREMOBIL Iso-C.
x Start the service program.
x Select the Adjustment, Calibrations menu.
x Click "Yes" to answer the query.
x In the Combo box "Function Group:", select "Diamentor".
x In the window "Available Functions", select the line "Start Diamentor Test" and click
"Execute".
x Close the status window by clicking the OK button.
x Respond to the query "Do you want to reset the unit" by clicking "No".
x Press the -0- key (reset key for fluoroscopic time).
x The tested T
w
value is displayed on the monitor of the SIREMOBIL Iso-C.
x This value must match the programmed CONSTANT (Qt*Kg) value. Tolerance: r 5 %.
x By pressing the -0- key (reset key for fluoroscopic time) the test is repeated and is dis-
played again on the monitor.
x The potentiometer ((Fig. 23 / p. 66)) of the dose-area product measurement device can
be used to adjust the test value to the programmed value (Qt*Kg).
