Siemens SIREMOBIL Iso-C User Manual

90 Replacing boards and components
SIREMOBIL Iso-C SPR2-230.840.01.01.02 © Siemens, 2008
08.08 CS PS SP
Page 90 of 148
For internal use only

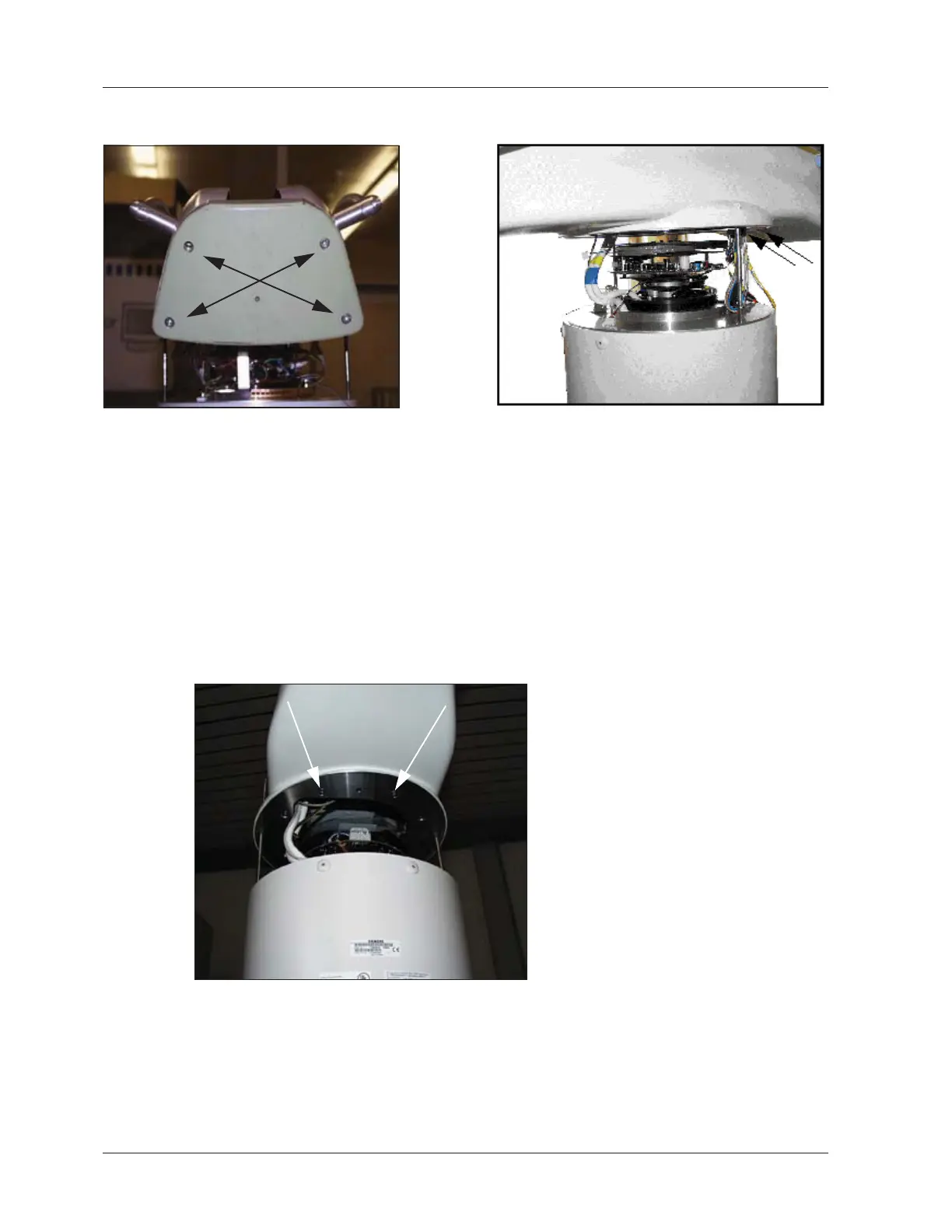

x Remove the cover on the front side of the C-arm by removing the screws (I.I. side, refer
to (Fig. 29 / p. 90)).
x Move the I.I. into the service position. See (I.I. service position / p. 25).
x Remove both attachment screws for the control section in the I.I. flange of the C-arm
(arrow/(Fig. 30 / p. 90)).
x Carefully remove the control section from the C-arm and disconnect all the plugs.
x Disconnect the protective conductor.
x Remove the VIDEOMED DC camera from the I.I.
x See Replacing boards / Replacing components VIDEOMED DC.
Fig. 31:
x Remove both attachment screws for the high voltage section from the I.I. flange of the
C-arm ((Fig. 31 / p. 90)).
x Remove the high voltage section from the C-arm.
Fig. 29:
Fig. 30:
