Procedure
1. Use the
and buttons to navigate in the measurement view.
2. To switch to the parameter view, press the button.
7.1.2.3 Parameter view
Parameter view
The parameter view shows the parameters, parameter values and the wizards of the device.
① Name and unit of the parameter (alternating)
② Parameter value
③ Parameter ID
④ "EDIT" symbol (permanently enabled)

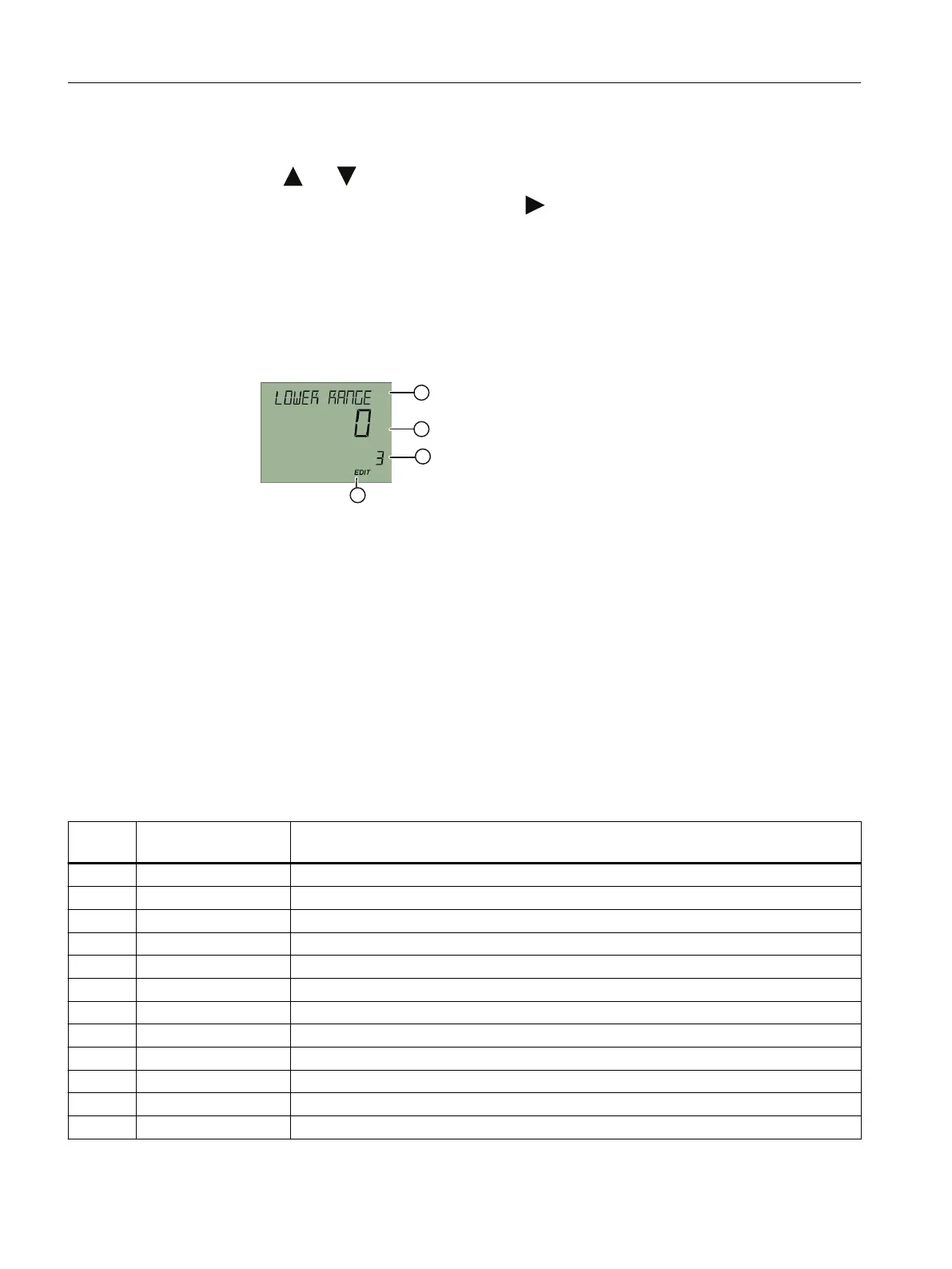

Figure 7-4 Example of parameter view
For parameters with an associated unit, the parameter name and unit are displayed as
alternating values in ①. Example: Lower range value in °C.
List of parameters on the display
The parameters are displayed with parameter ID and parameter name.
Depending on the parameter settings or the device version of your device, some parameters are
not visible.
Parame‐
ter ID
Parameter name on
the display
Meaning
01 TYPE INPUT 1 Input type 1
02 WIRING 1 Connection type for input 1
03 WIRE RES 1 Wire resistance for connecting cable at Input 1
04 TYPE INPUT 2 Input type 2
05 WIRING 2 Connection type for input 2
06 WIRE RES 2 Wire resistance for connecting cable at Input 2
07 PV MAPPING Assignment of the primary variable
08 UNITS Set unit of the primary variable
09 LOWER RANGE Set the lower range value of the primary variable
10 UPPER RANGE Set upper range value of the primary variable
11 DAMPING Damping value
12 FUNCT SAFETY Enable and disable Functional Safety
Operating
7.1 Local operation
SITRANS TS100/TS200/TS300/TS500/TSinsert/TSthermowell
62 Operating Instructions, 08/2020, A5E47810090-AA
