6.3.3 Connecting USB modem
Procedure
&20
&20
&20
&20
86%

(UURU
&RPP
32:(5
① PC
② USB modem
③ Connecting cable to the temperature transmitter
Red cable plus
Black cable minus
④ USB cable
⑤ SITRANS TH100slim
⑥ M12
Contact 1 plus
Contact 3 minus

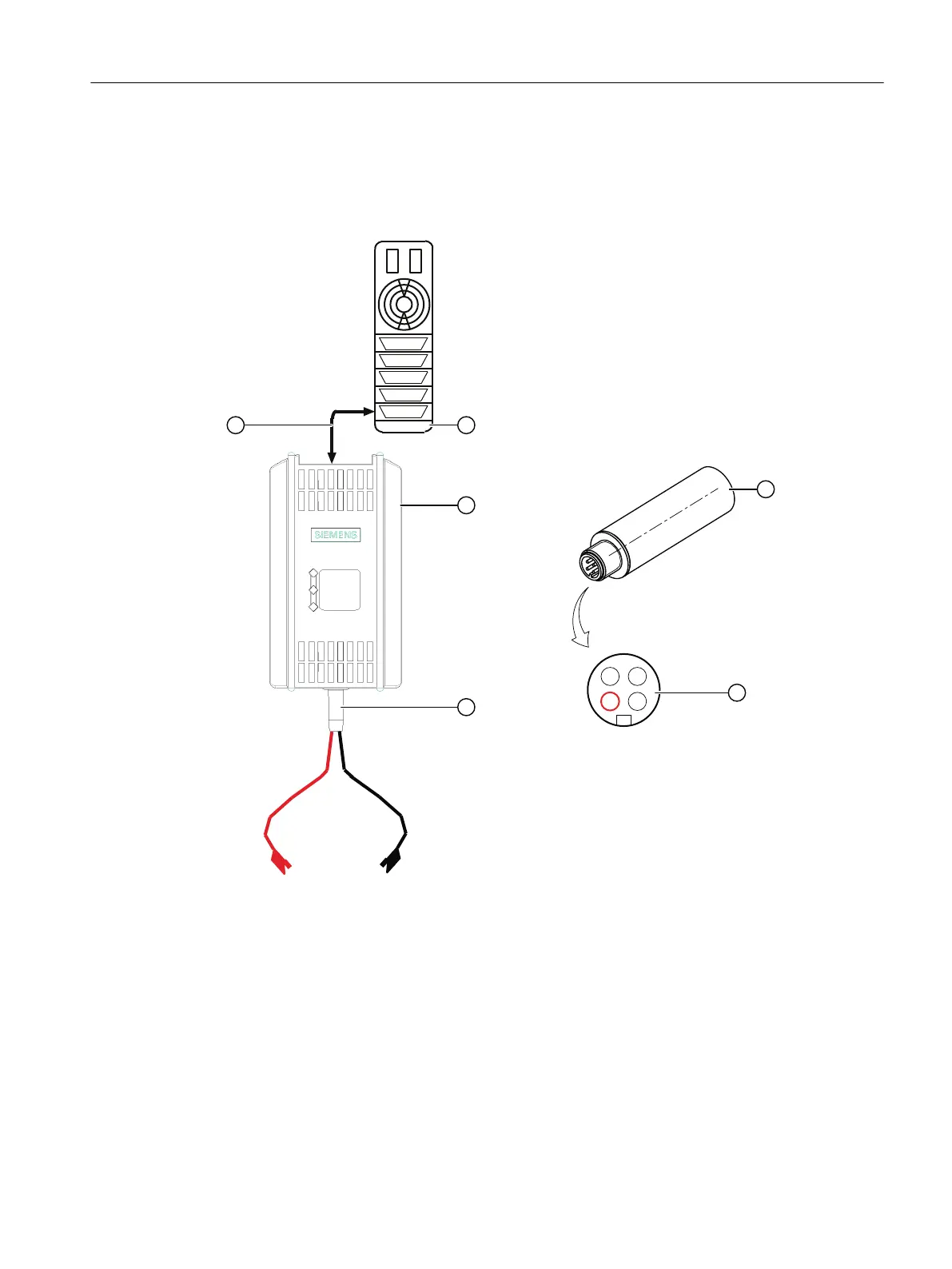

Figure 6-2 Connecting USB modem
Commissioning
6.3 Commissioning the USB modem and SIPROM T
SITRANS TS100/TS200/TS300/TS500/TSinsert/TSthermowell
Operating Instructions, 08/2020, A5E47810090-AA 57
