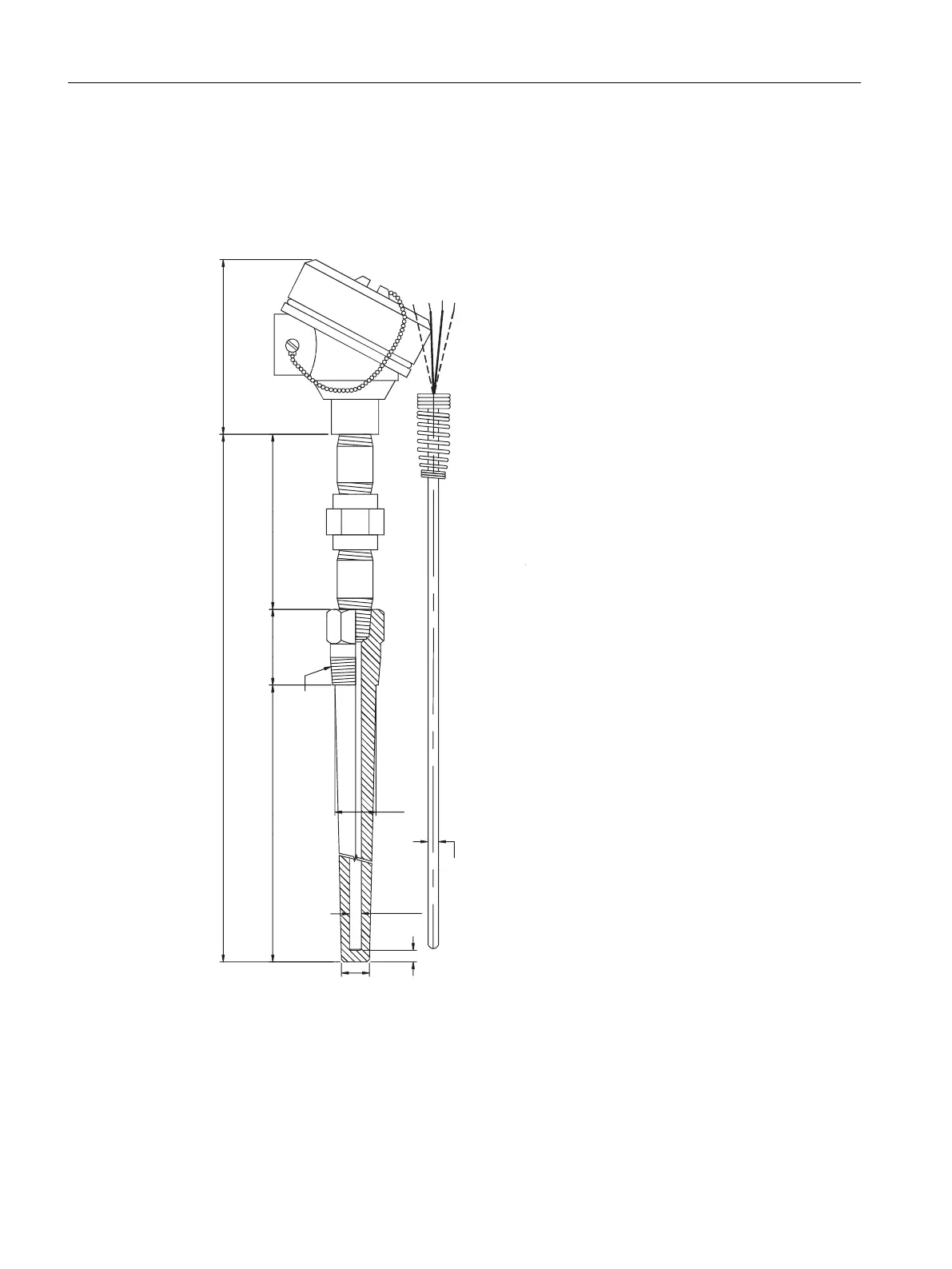

Figure 12-9 Dimensional drawings SITRANS TS500, types 4 and 4F - dimensions in mm (inch)
12.5.6 SITRANS TS500, type ST, threaded tapered well (7MC65..)
Ød
6,35 (0.25)
ØD2
E
ØD
95 (3.74)N
U1
35,56 (1.4)
X
6,604 (0.26)
bore
∅d External diameter of measuring insert E Thread dimension of process connec‐
tion
∅D External diameter of process connection N Nominal length
∅D2 External diameter of tip U1 Unsupported length
X Extension
Dimension drawings
12.5 SITRANS TS500
SITRANS TS100/TS200/TS300/TS500/TSinsert/TSthermowell
164 Operating Instructions, 08/2020, A5E47810090-AA
