Siemens SITRANS TSinsert - SITRANS TS500, Type FR, Flanged Reduced Well (7 MC65

12.5.16 SITRANS TS500, type FR, 󹪞anged reduced well (7MC65..)
Ød
Weld
19,05 (0.75)
6,35 (0.25)
12,7 (0.5)
95 (3.74)
N
U
57,15 (2.25)
X
6,604 (0.26)
bore
63,5 (2.5)
∅d External diameter of measuring insert (6 (0.24)) N Nominal length
X Extension U Mounting length

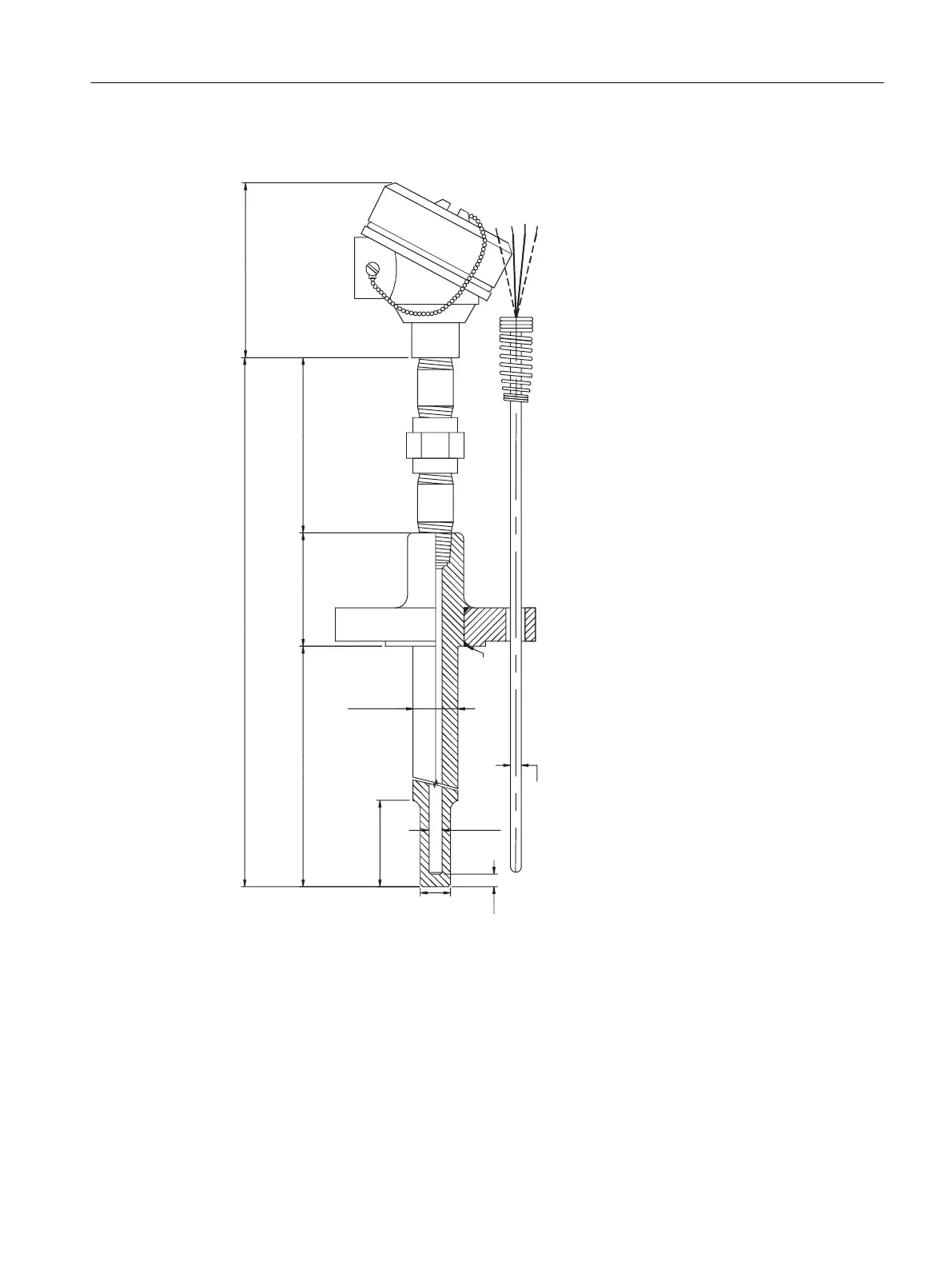

Figure 12-20 Dimensional drawings SITRANS TS500, type FR, 󹪞anged reduced well - dimensions in mm
(inch)
Dimension drawings
12.5 SITRANS TS500
