Siemens SITRANS TSinsert - Connecting the SITRANS TS500; Opening the Device

+
-
4-wire connection 3-wire connection
Red BlackWhiteRed White
1x Thermocouple
2x Thermocouple
Yellow
Transmitters TH:
flying leads
WhiteRed
2 7 6
3
3
41
1
+
+
-
+
- -
3
2
8
3
5
4
74
1x PT100 2x PT100








1 2
Connection of DVM-LCD and transmitter
3RZHU
HQWU\
'90/&'
PRGXOH
7+
WUDQVPLWWHU
7RPHDVXULQJ
LQVHUW

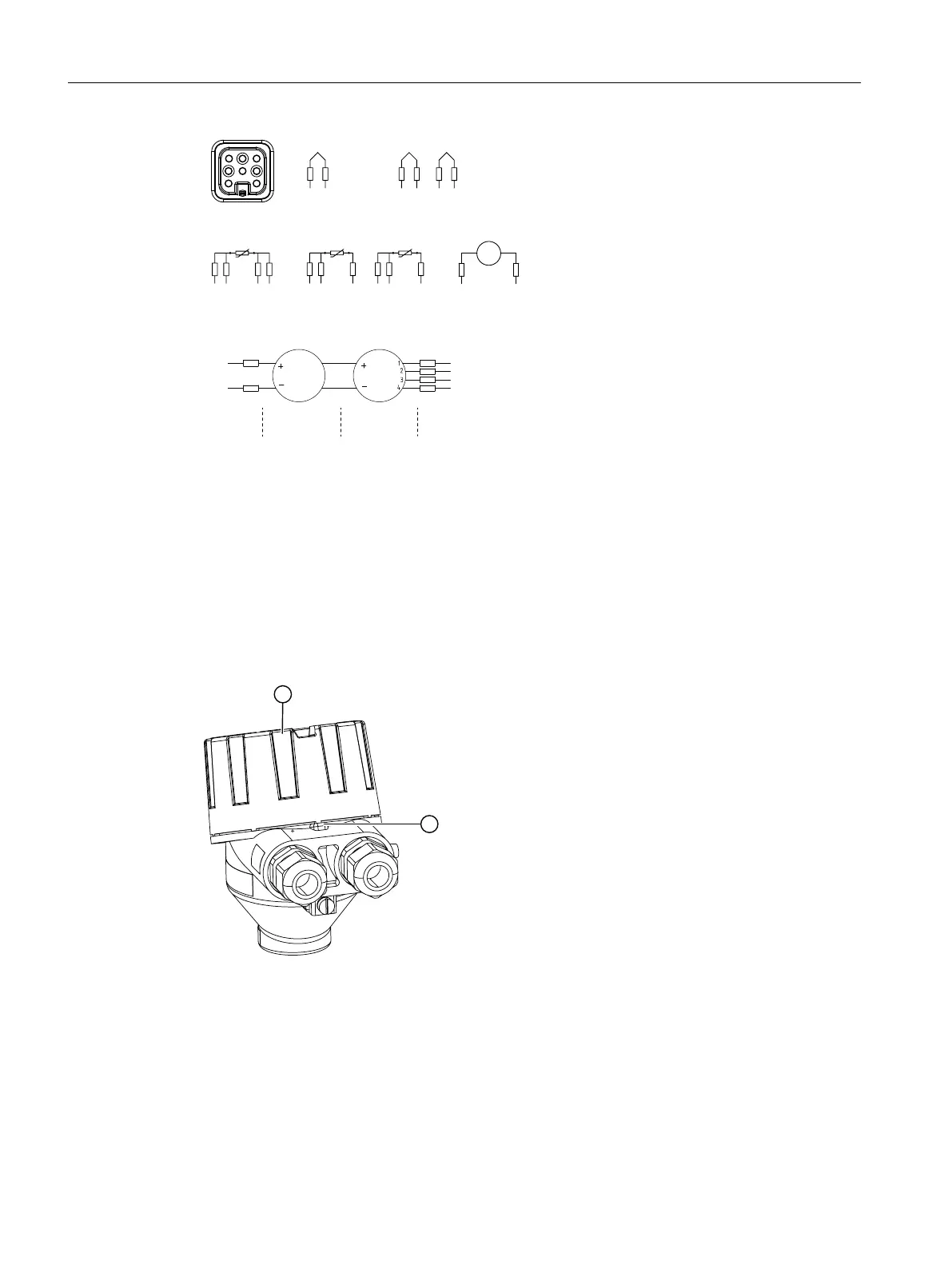

5.6 Connecting the SITRANS TS500
5.6.1 Opening the device
Procedure


① Cover of the electrical cable compartment
② Safety catch
Figure 5-1 Opening device with single chamber housing
1. Use a 3 mm Allen key to loosen the safety catch ②.
2. Unscrew the cover of the electrical cable compartment ①.
Connecting
5.6 Connecting the SITRANS TS500
SITRANS TS100/TS200/TS300/TS500/TSinsert/TSthermowell
42 Operating Instructions, 08/2020, A5E47810090-AA
