12.6 SITRANS TSinsert - measuring inserts for SITRANS TS500
$
%
&
B
TSL
NBL
Ød
Ø42
(1.66)
Ø33 (1.30)
25 (0.99)
Ø42
(1.65)
Ø33 (1.30)
25
(0.99)
33 (1.30)
28 (1.10)
Ø42
(1.65)
K1
K2
150 (5.90)
X
B
TSL
NBL
Ød
NPT1/2
NPT1/2)

① American version ∅d External diameter of measuring in‐
sert
② European version K1, 2 Penetration depth
Ⓐ To ②, cold end: Ceramic base NBL Non bendable length
Ⓑ To ②, cold end: Free wire ends TSL Temperature sensitive length
Ⓒ To ②, cold end: Mounted transmitter X Extension
B Length of measuring insert

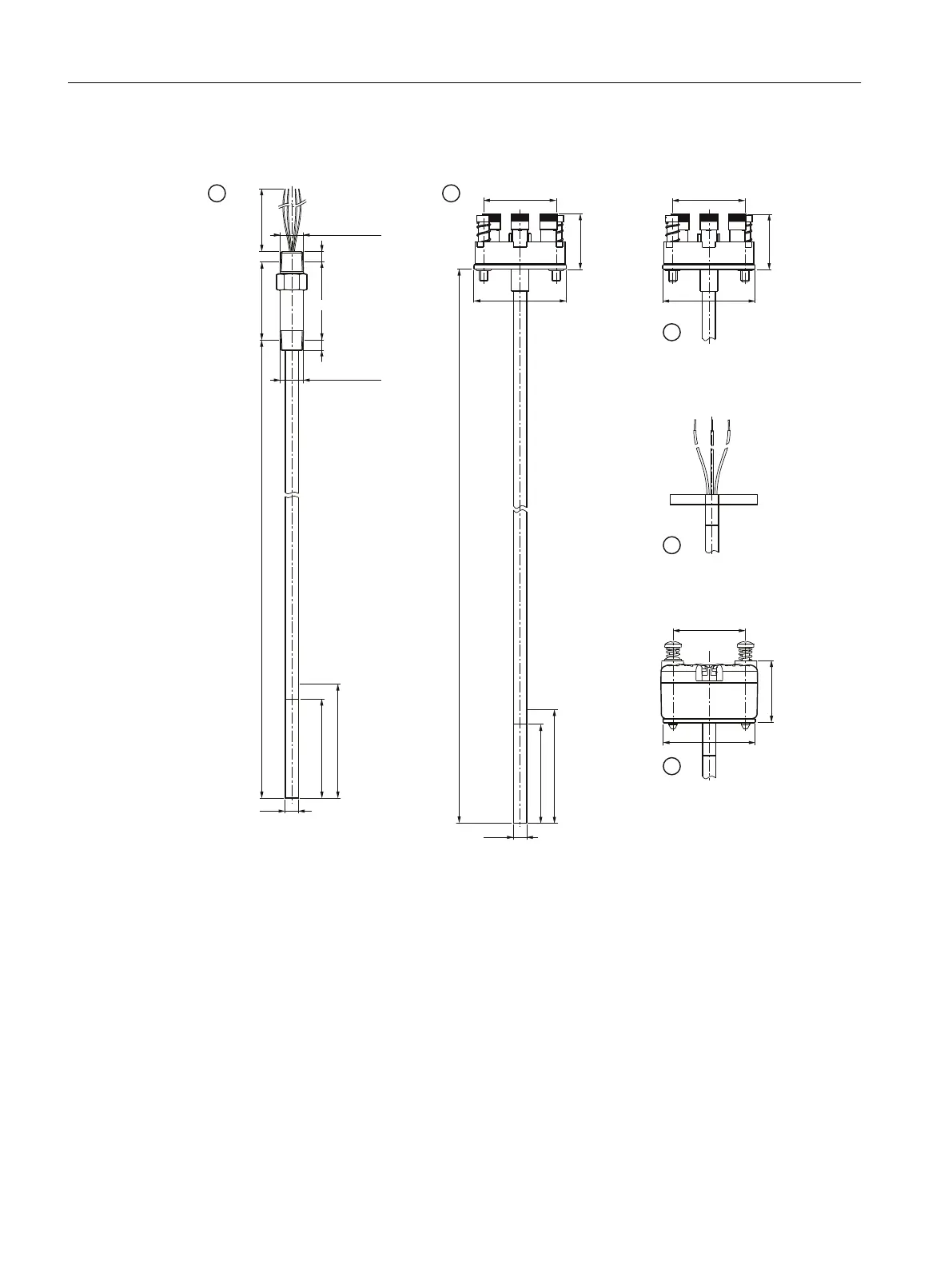

Figure 12-30 Dimensional drawings SITRANS TSinsert - measuring inserts for SITRANS TS500 -
dimensions in mm (inch)
