12.5.22 SITRANS TS500, type SWR, socket reduced well (7MC65..)
Ød
D8
ØD
6,35 (0.25)
12,7 (.5)
95 (3.74)N
44,45 (1.75) X
U
6,604 (0.26)
bore
63,5 (2.5)
∅d External diameter of measuring insert (6 (0.24)) N Nominal length
∅D External diameter of process connection U Mounting length
∅D8 Internal diameter of tip X Extension

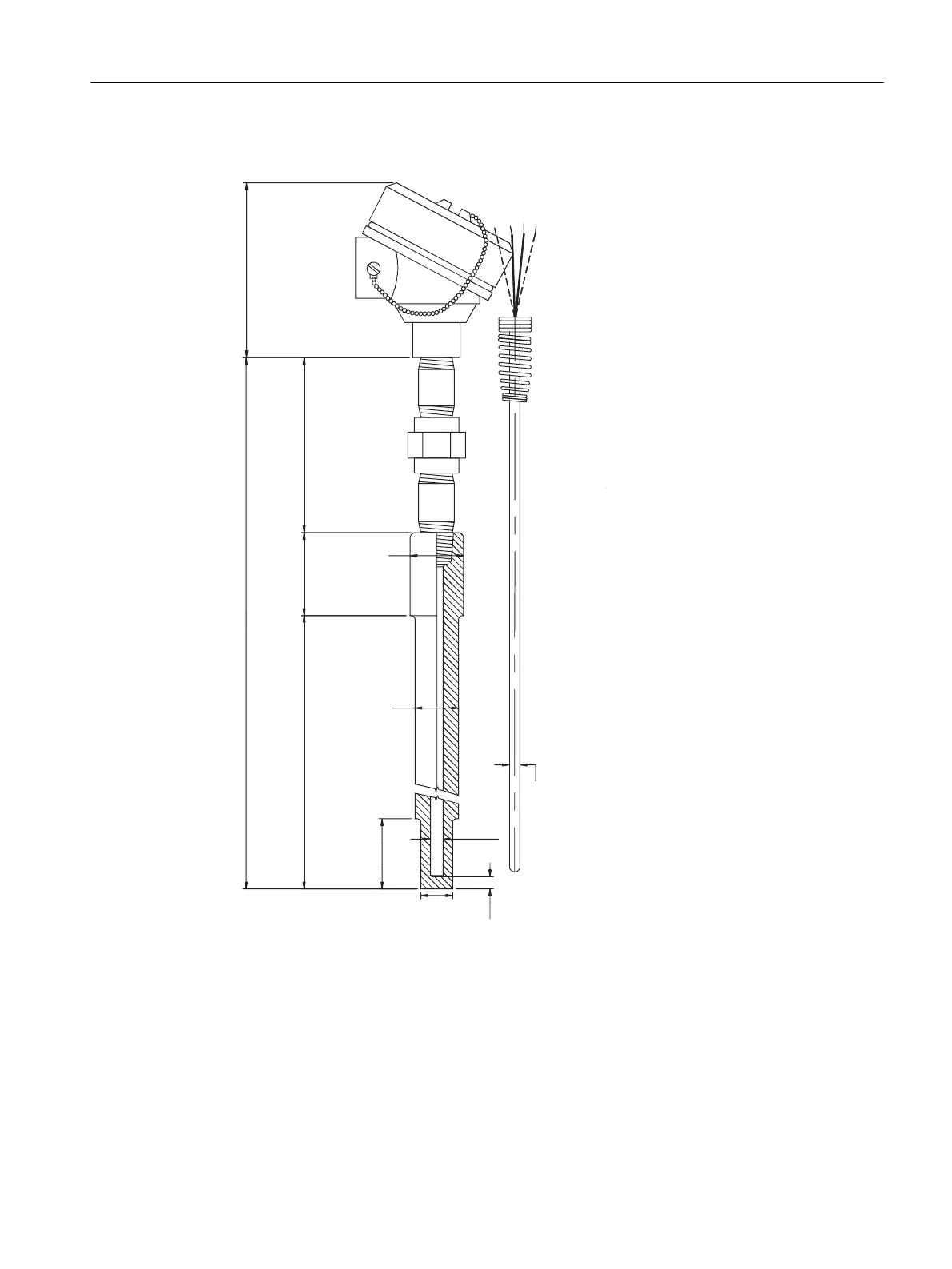

Figure 12-26 Dimensional drawings SITRANS TS500, type SWR, socket reduced well - dimensions in mm
(inch)
Dimension drawings
12.5 SITRANS TS500
SITRANS TS100/TS200/TS300/TS500/TSinsert/TSthermowell
Operating Instructions, 08/2020, A5E47810090-AA 183
