12.5.7 SITRANS TS500, type SST, threaded tapered well (7MC55..)
% 1+

)
L Length of thermowell B Length of insert
∅D1 External diameter of process connection N Nominal length
∅D2 External diameter of tip U Insertion length
U
1
Unsupported length
X Extension H
1
Head bottom thickness:
Type Axx = 41 (1.61)
Type Bxx = 26 (1.02)
X
1
Lag length C Cone length
F Thermowell bottom thickness

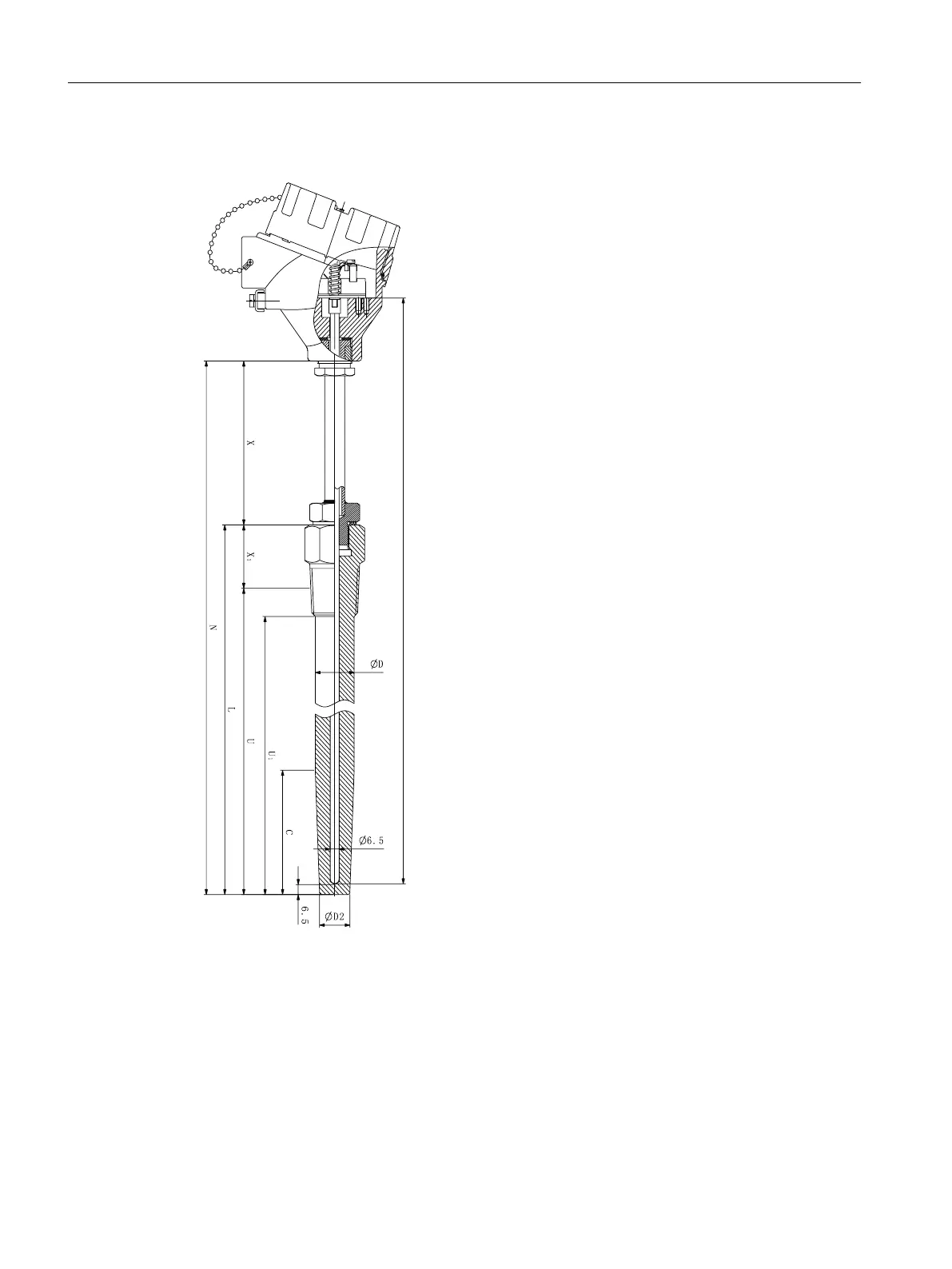

Dimension drawings
12.5 SITRANS TS500
SITRANS TS100/TS200/TS300/TS500/TSinsert/TSthermowell
166 Operating Instructions, 08/2020, A5E47810090-AA
