3.7 Connection heads for SITRANS TS500
The transmitters can be mounted in connection heads of type B and bigger. The following
mounting types are possible:
• Measuring insert mounting
– Standard type with compact design
– Measuring insert (sensor) and transmitter form one unit

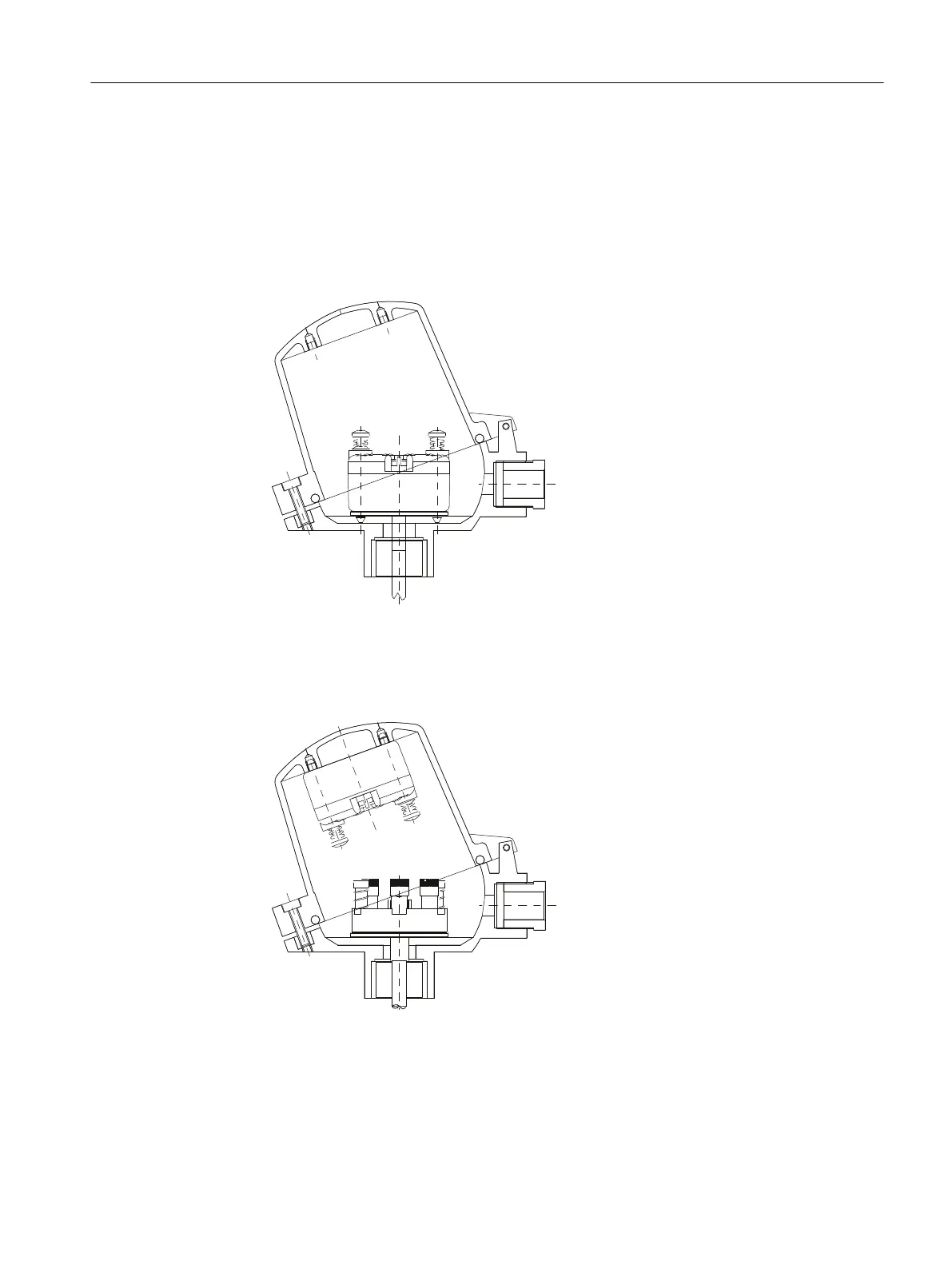

Figure 3-1 Measuring insert mounting of transmitter
• Hinged cover mounting
– Standard type for connection heads of type BC0: B head with high hinged cover
– Separate maintenance of the measuring insert and the transmitter is possible.
Figure 3-2 Hinged cover mounting of transmitter
Description
3.7 Connection heads for SITRANS TS500
SITRANS TS100/TS200/TS300/TS500/TSinsert/TSthermowell
Operating Instructions, 08/2020, A5E47810090-AA 23
