12.5.23 SITRANS TS500, type SWR, socket reduced well (7MC55..)
L Length of thermowell N Nominal length
∅D External diameter of process connection U Mounting length
B Length of measuring insert X Extension
H
1
Head bottom thickness:
Type Axx = 41 (1.61)
Type Bxx = 26 (1.02)
X
1
Lag length

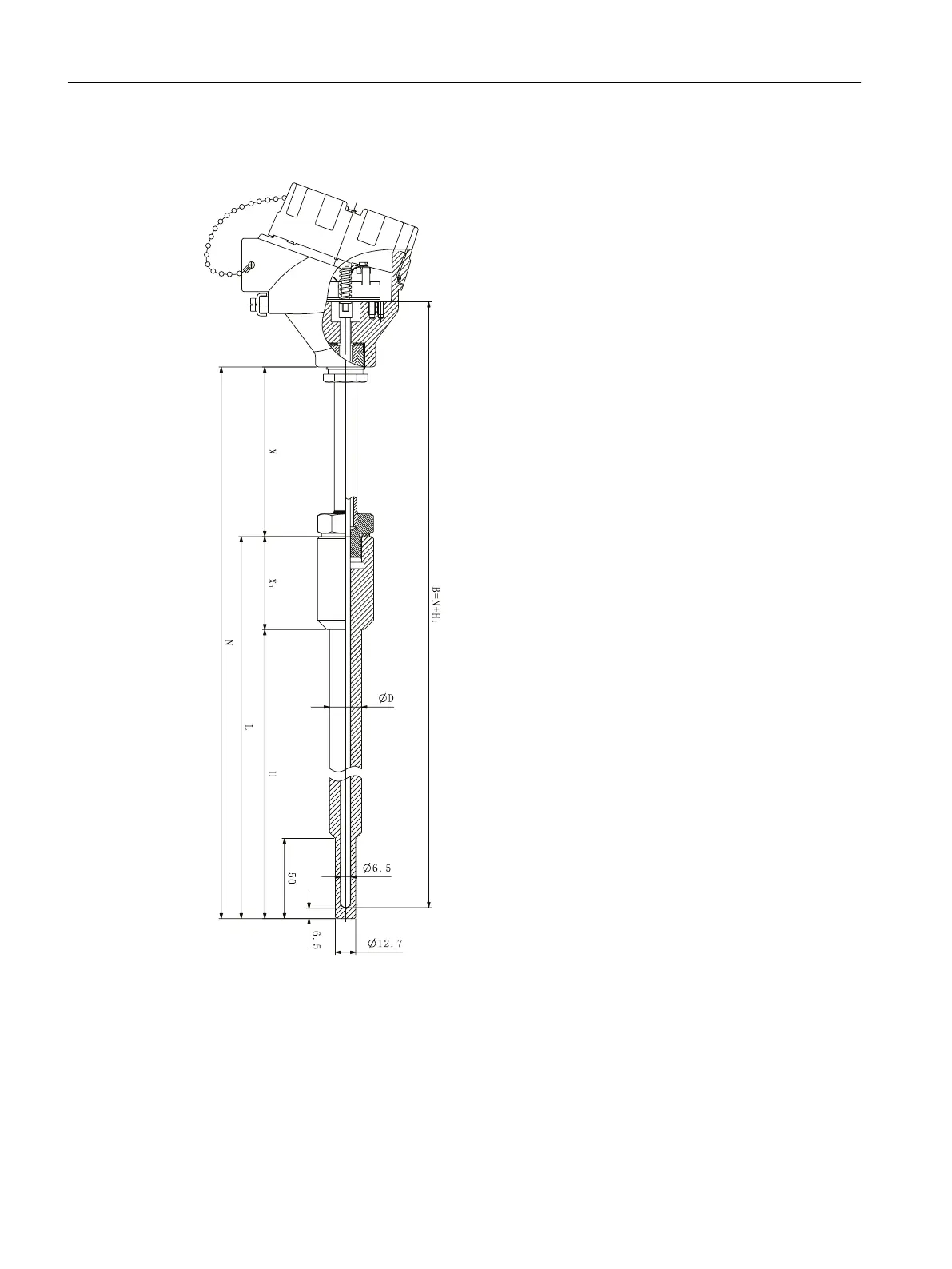

Figure 12-27 Dimensional drawings SITRANS TS500, type SWR, socket reduced well (7MC55…)
