3. Use the button to con󹪝rm.

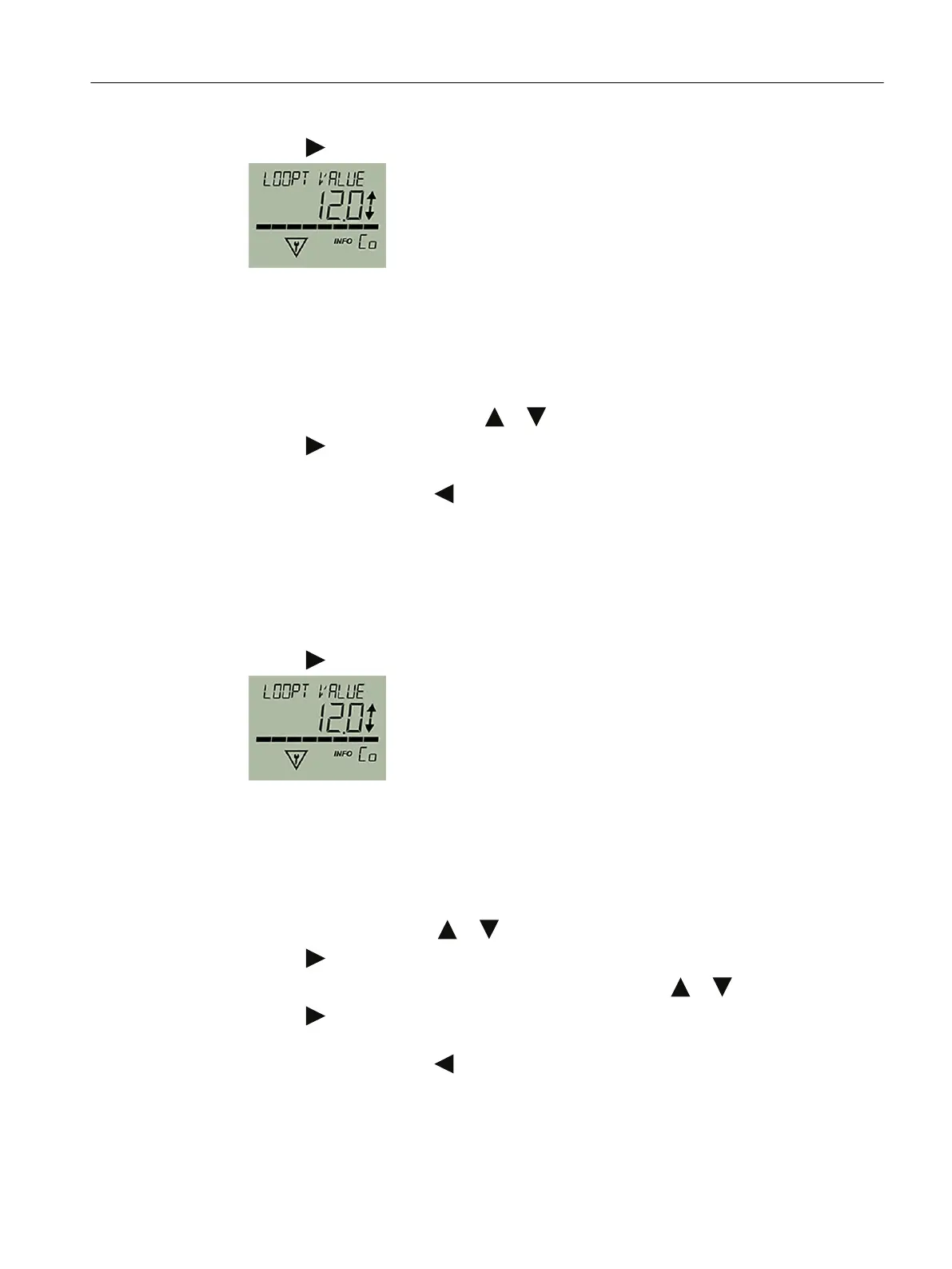

The loop test starts:
– The "EDIT" symbol 󹪞ashes.
– The "Function check" symbol is displayed.
– The "Co" symbol (constant current mode) is displayed.
4. Change the preset value with the
or button.
5. Use the button to con󹪝rm.
The loop test starts.
6. End the loop test with the button.
8.3.12.2 Loop test with user de󹪝ned loop current value
1. Navigate into the parameter view.
Navigating in the views (Page 60)
2. In the parameter view, select the "Loop test" parameter.
3. Use the button to con󹪝rm.
The loop test starts:
– The "EDIT" symbol 󹪞ashes.
– The "Function check" symbol is displayed.
– The "Co" symbol (constant current mode) is displayed.
4. Change to "USER" with the or button.
5. Use the button to con󹪝rm.
6. Set a value between 3.6 mA and 22.8 mA using the buttons or .
7. Use the button to con󹪝rm.
The loop test starts.
8. End the loop test with the button.
Parameter assignment
8.3 Parameter assignment over device with display
