7. Close the device.
Closing the device (Page 48)
8. Connect the device to the plant with the protective conductor connection ⑦.
5.6.4 Closing the device
Procedure
① Cover
② Safety catch
③ Cable gland

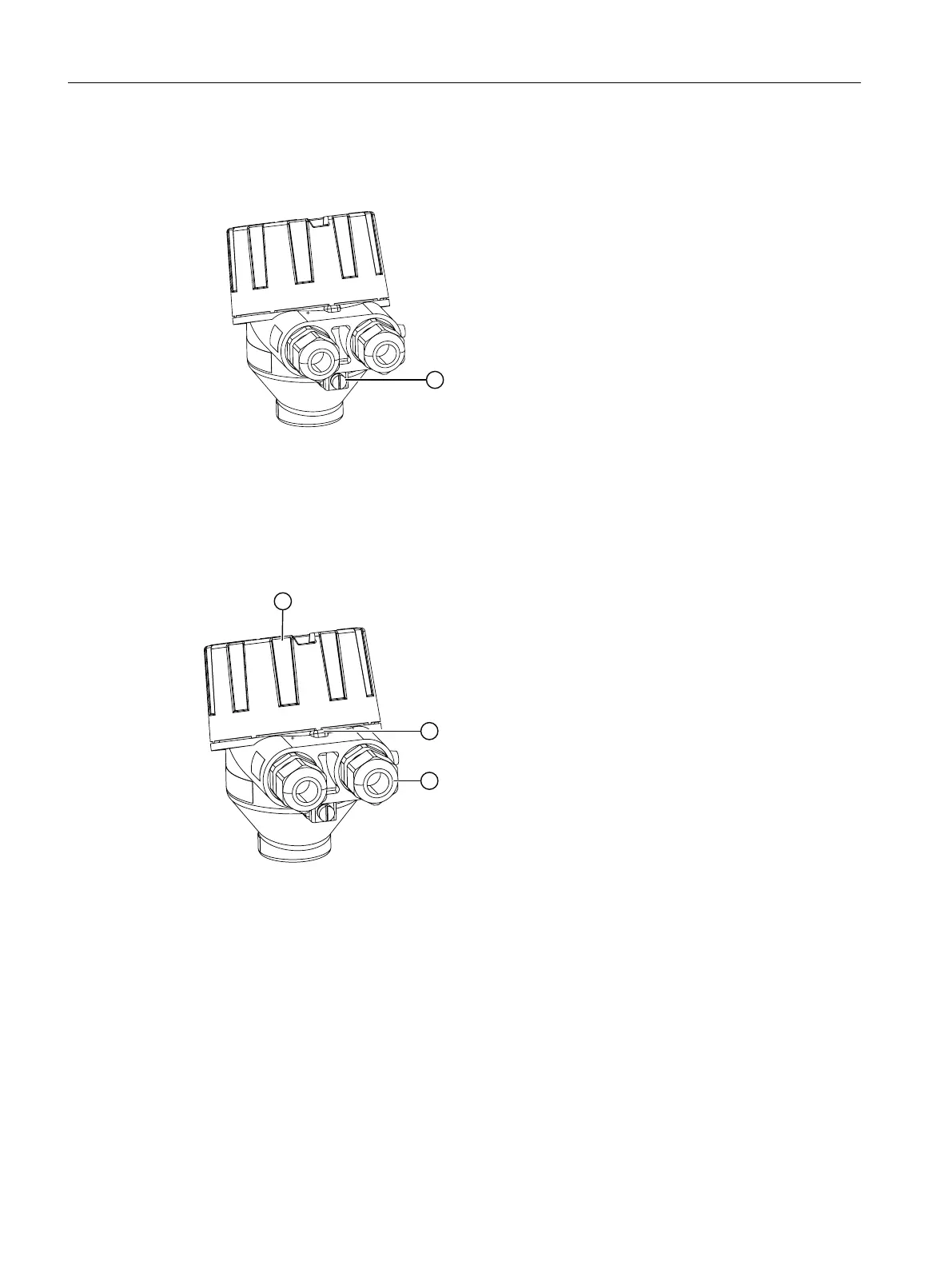

Figure 5-4 Closing device with single chamber housing
1. Screw the cover ① back on as far as it will go.
2. Use a 3 mm Allen key to secure the cover with the safety catch ②.
3. Check the tightness of the cable glands ③ in accordance with the degree of protection.
Connecting
5.6 Connecting the SITRANS TS500
SITRANS TS100/TS200/TS300/TS500/TSinsert/TSthermowell
48 Operating Instructions, 08/2020, A5E47810090-AA
