12.5.14 SITRANS TS500, type FS, 󹪞anged straight well (7MC65..)
Ød
Weld
6,35 (0.25)
19.05(0.75)
95 (3.74)
N
57,15 (2.25)
X
U
6,604 (0.26)
bore
∅d External diameter of measuring insert (6 (0.24)) N Nominal length
X Extension U Mounting length

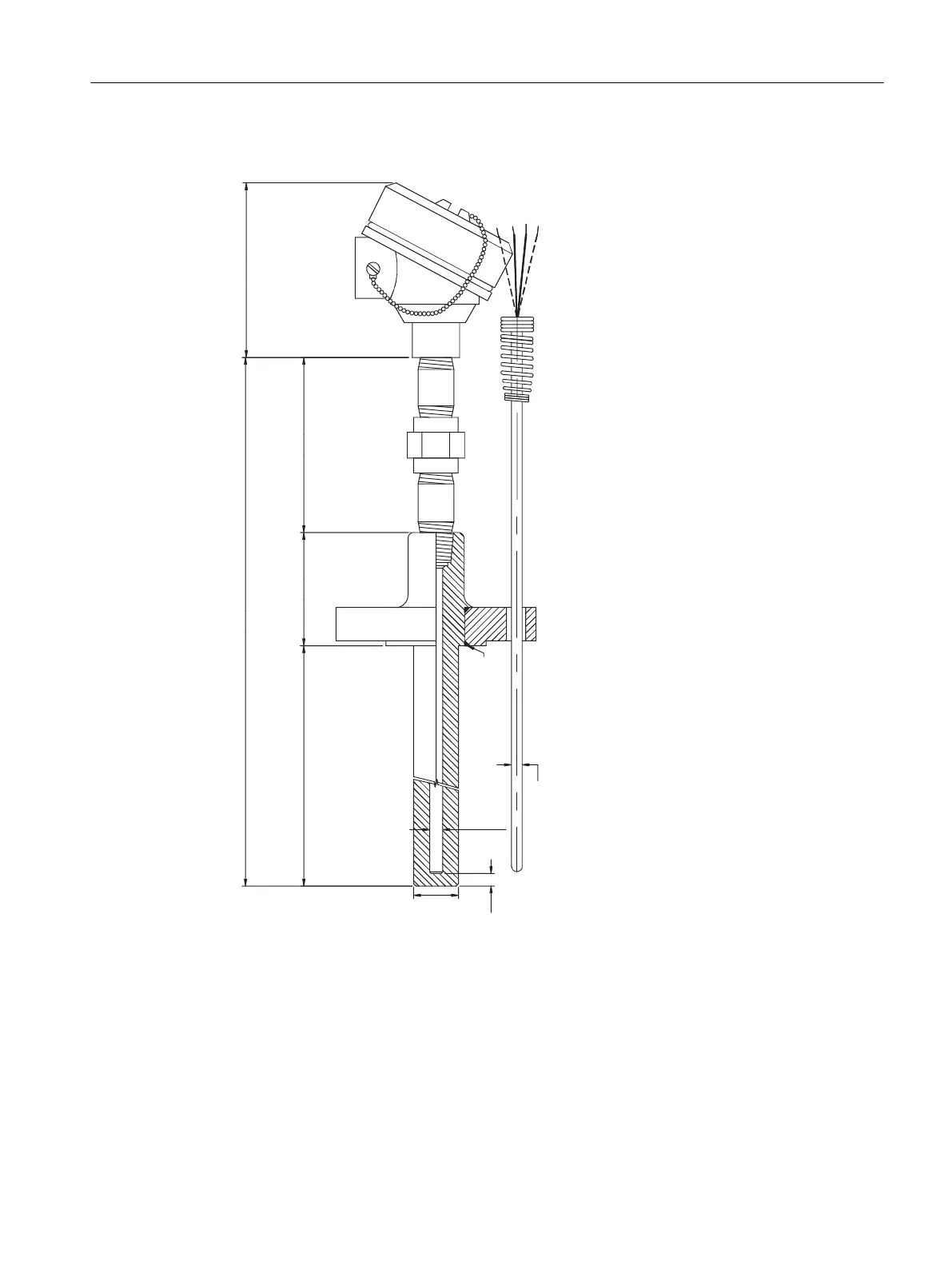

Figure 12-18 Dimensional drawings SITRANS TS500, type FS, 󹪞anged straight well - dimensions in mm
(inch)
Dimension drawings
12.5 SITRANS TS500
SITRANS TS100/TS200/TS300/TS500/TSinsert/TSthermowell
Operating Instructions, 08/2020, A5E47810090-AA 175
