12.3 SITRANS TS200






U
B
15
(1.59)
B
U
150
(5.91)
10
(0.39)
B
U
50
(1.97)
5
(0.20)
B
U
40
(1.57)
U
36
(1.41)
U
H
20
(0.79)
B
10
(0.39)
10
(0.39)
B
B Length of measuring insert U Mounting length
H Height of head
① Basic sensor U = B
② Flying Leads U = B + 10 (0.39)
③ Coupling LEMO 1S U = B - 10 (0.39)
④ M12 connector U = B - 10 (0.39)
⑤ Thermocouple coupling U = B - 5 (0.20)
⑥ Miniature connection head U = B - 20 (0.79)

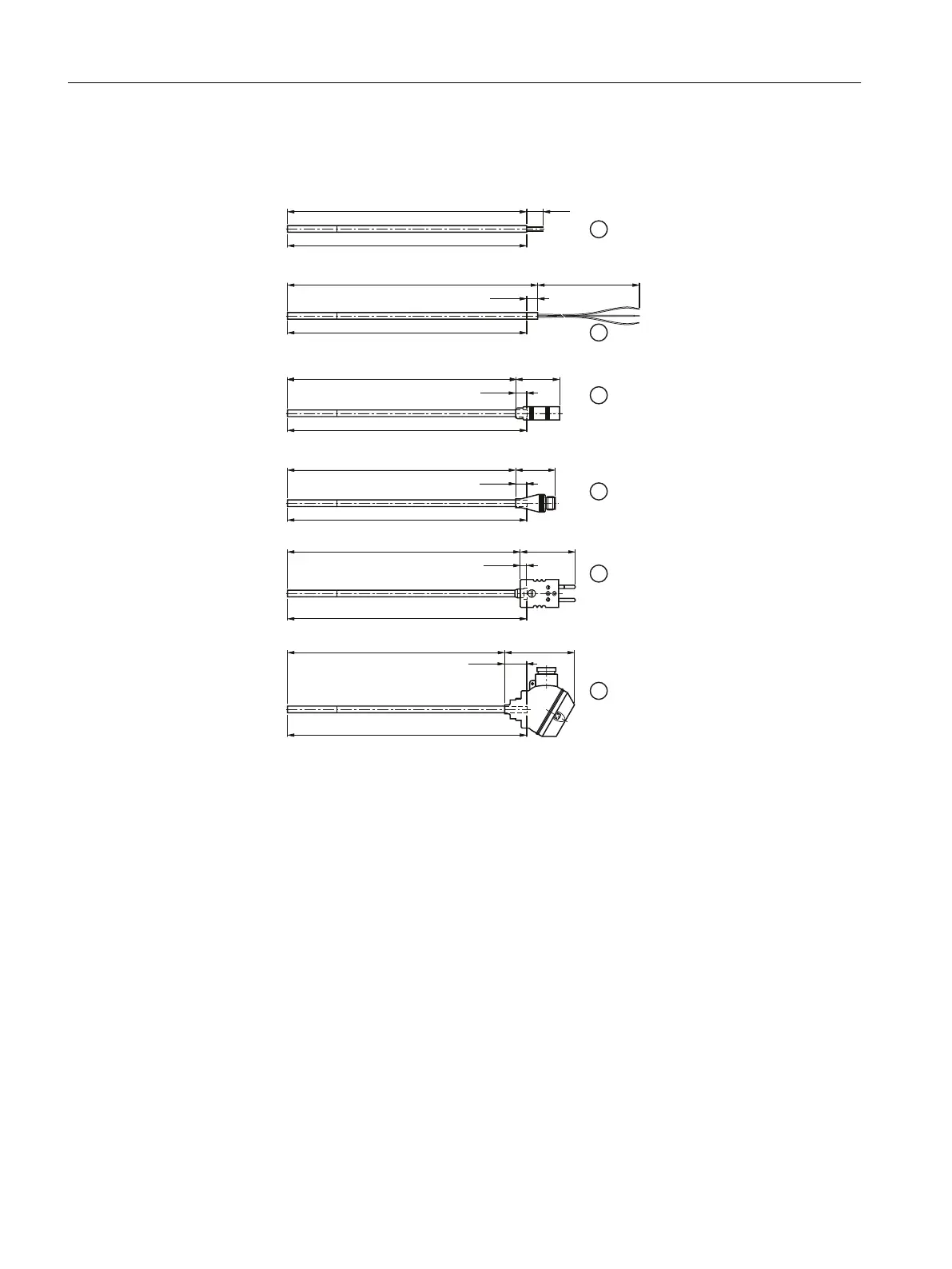

Figure 12-2 Dimensional drawings SITRANS TS200 - dimensions in mm (inch)
Dimension drawings
