7. Close the device.
Closing the device (Page 48)

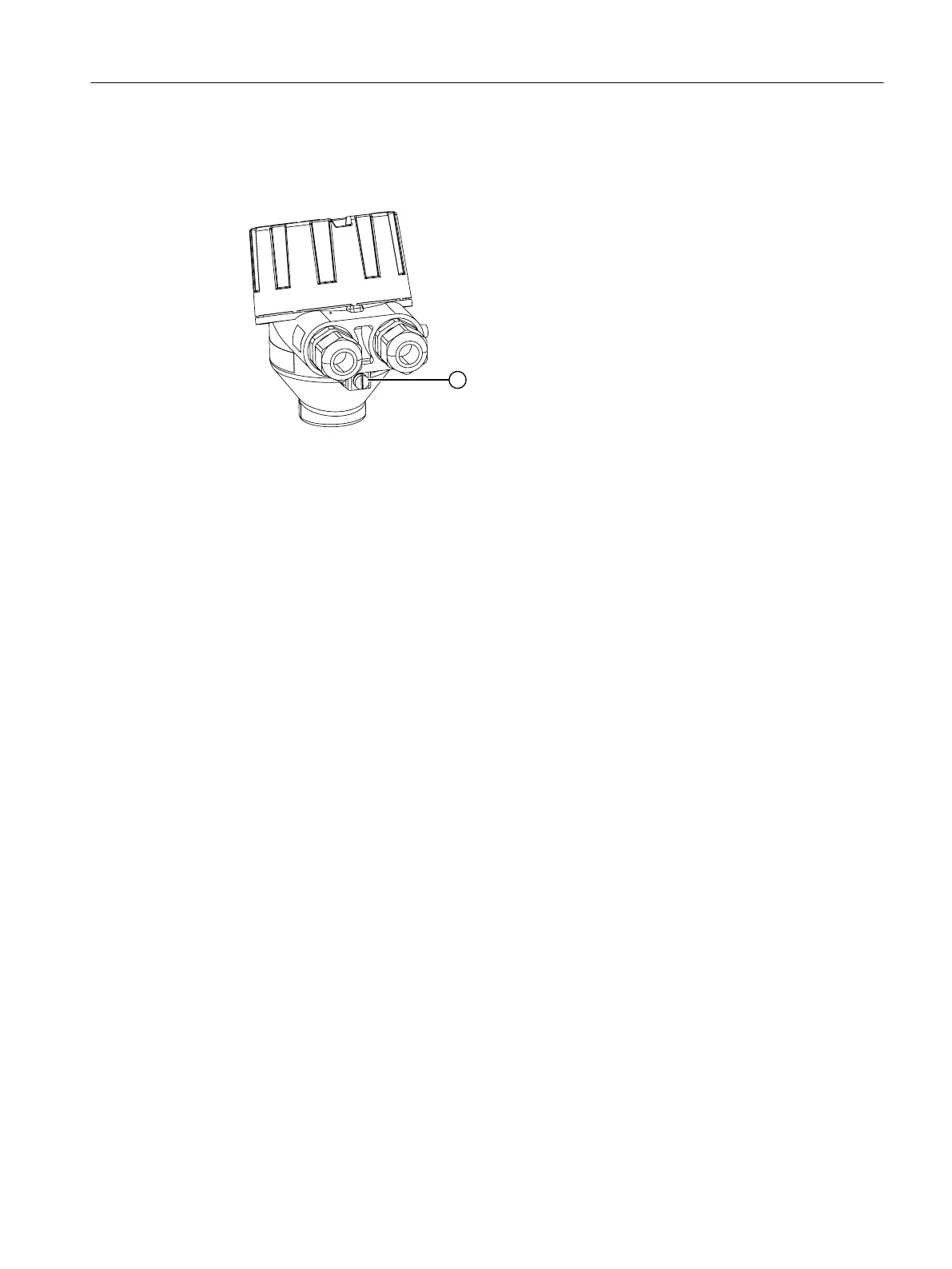

8. Connect the device to the plant with the protective conductor connection ⑦.
5.6.3 Connecting the SITRANS TS500 and TH420
Condition
The device is opened. (Page 42)
If you use stranded wire used, you need a ferrule.
Note the maximum permissible core cross-section (Page 140).
Connecting
5.6 Connecting the SITRANS TS500
SITRANS TS100/TS200/TS300/TS500/TSinsert/TSthermowell
Operating Instructions, 08/2020, A5E47810090-AA 45
