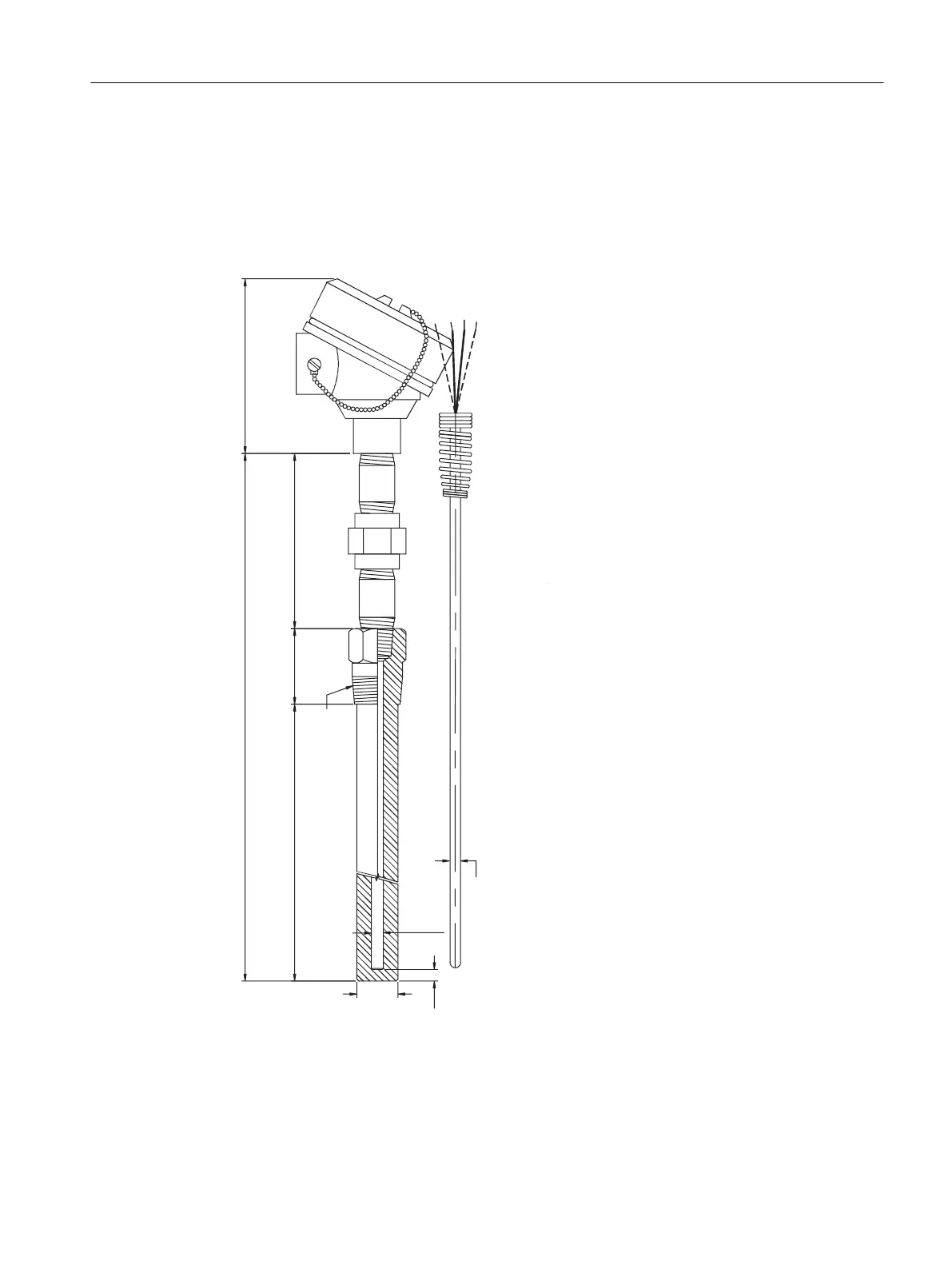

Figure 12-11 Dimensional drawings SITRANS TS500, type SST, threaded tapered well (7MC55…) -
dimensions in mm (inch)
12.5.8 SITRANS TS500, type SS, threaded straight well (7MC65..)
Ød
6,35 (0.25)
E
ØD
95 (3.74)N
35,56 (1.4) X
U1
6,604 (0.26)
bore
∅d External diameter of measuring insert E Thread dimension of process connec‐
tion
∅D External diameter of process connection N Nominal length
X Extension U1 Unsupported length
Dimension drawings
