Siemens SITRANS TSinsert - Connecting the Thermocouple

5'
5'
:+
:+

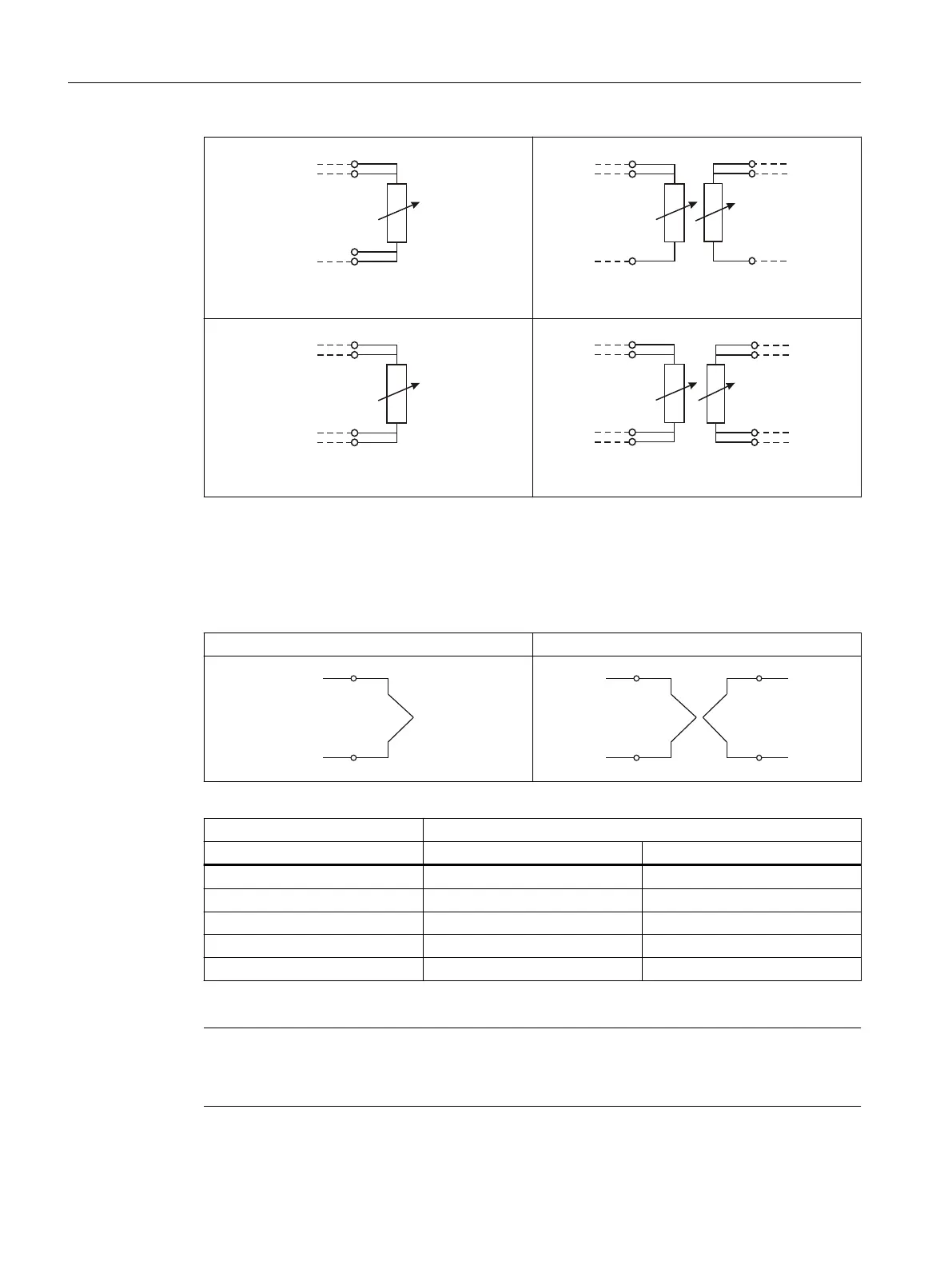

3-wire connection
5'
5'
:+
%.
%.
<(
3-wire connection
5'
:+
5'
:+
4-wire connection
5'
5'
:+
:+
%.
%.
<(
<(
4-wire connection
Abbreviation of color: RD = red; WH = white; YE = yellow; BK = black
5.4 Connecting the thermocouple
1 thermocouple 2 thermocouples





Thermocouples Cable colors
Type + -
J Black White
K Green White
N Pink White
E Violet White
T Brown White
Note
2 thermocouples
On the terminal block is an additional mark to di󹪜erentiate between sensor 1 and sensor 2.
Connecting
5.4 Connecting the thermocouple
SITRANS TS100/TS200/TS300/TS500/TSinsert/TSthermowell
40 Operating Instructions, 08/2020, A5E47810090-AA
