5.6.2 Connecting the SITRANS TS500 and TH320
Condition
The device is opened. (Page 42)
If you use stranded wire used, you need a ferrule.
Note the maximum permissible core cross-section (Page 140).
Procedure

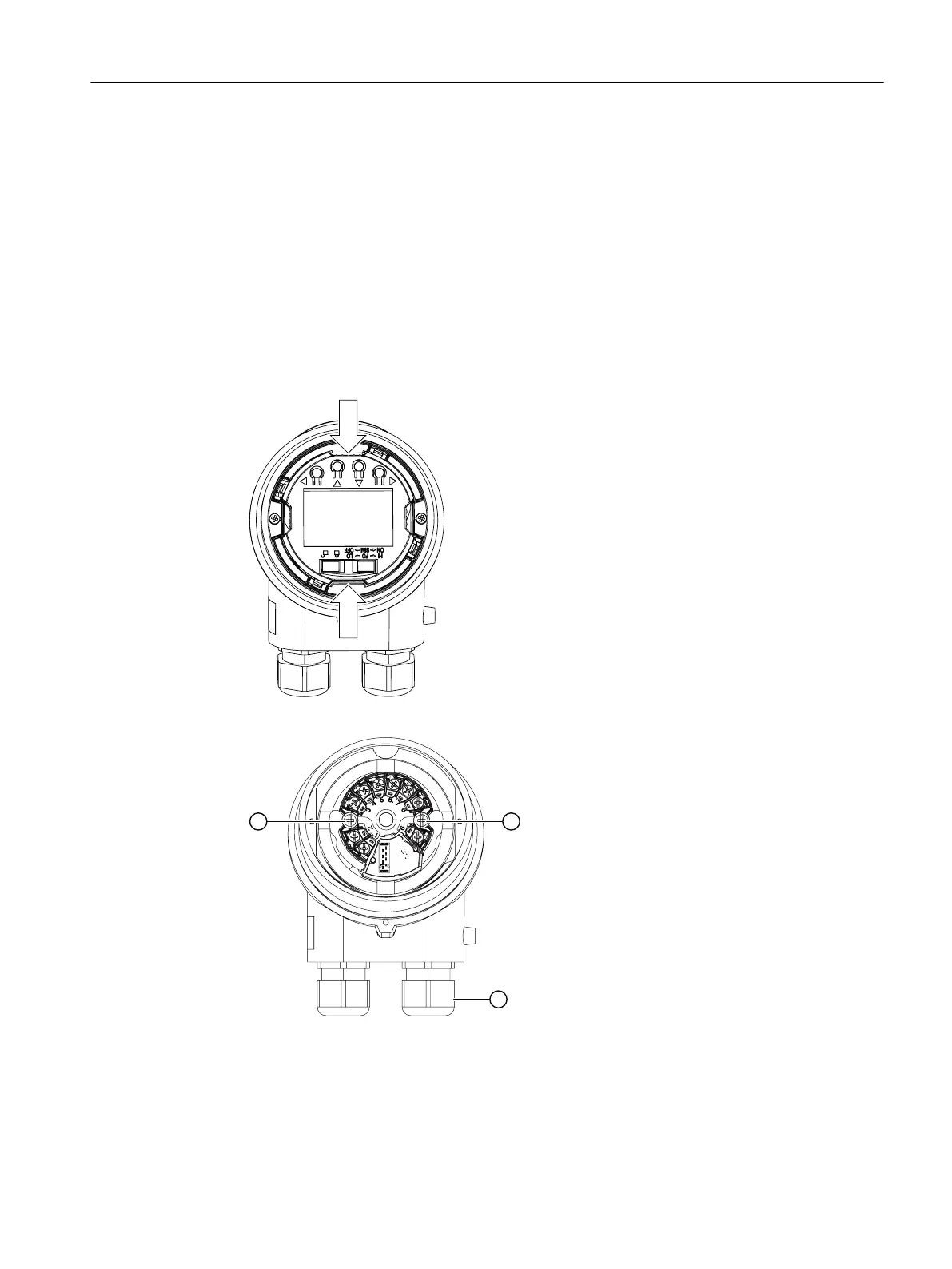

1. Remove the local display from the holder.
2. Loosen the fastening screws of the temperature transmitter ① and remove it.
Connecting
5.6 Connecting the SITRANS TS500
SITRANS TS100/TS200/TS300/TS500/TSinsert/TSthermowell
Operating Instructions, 08/2020, A5E47810090-AA 43
