12.5.18 SITRANS TS500, type SWT, socket tapered well (7MC65..)
Ød
6,604 (0.26)
bore
95 (3.74)
N
44,45 (1.75)
X
U
D8
ØD
ØD2
6,35 (0.25)
∅d External diameter of measuring insert (6 (0.24)) N Nominal length
∅D External diameter of process connection U Mounting length
∅D2 External diameter of tip X Extension
∅D8 Internal diameter of protective tube

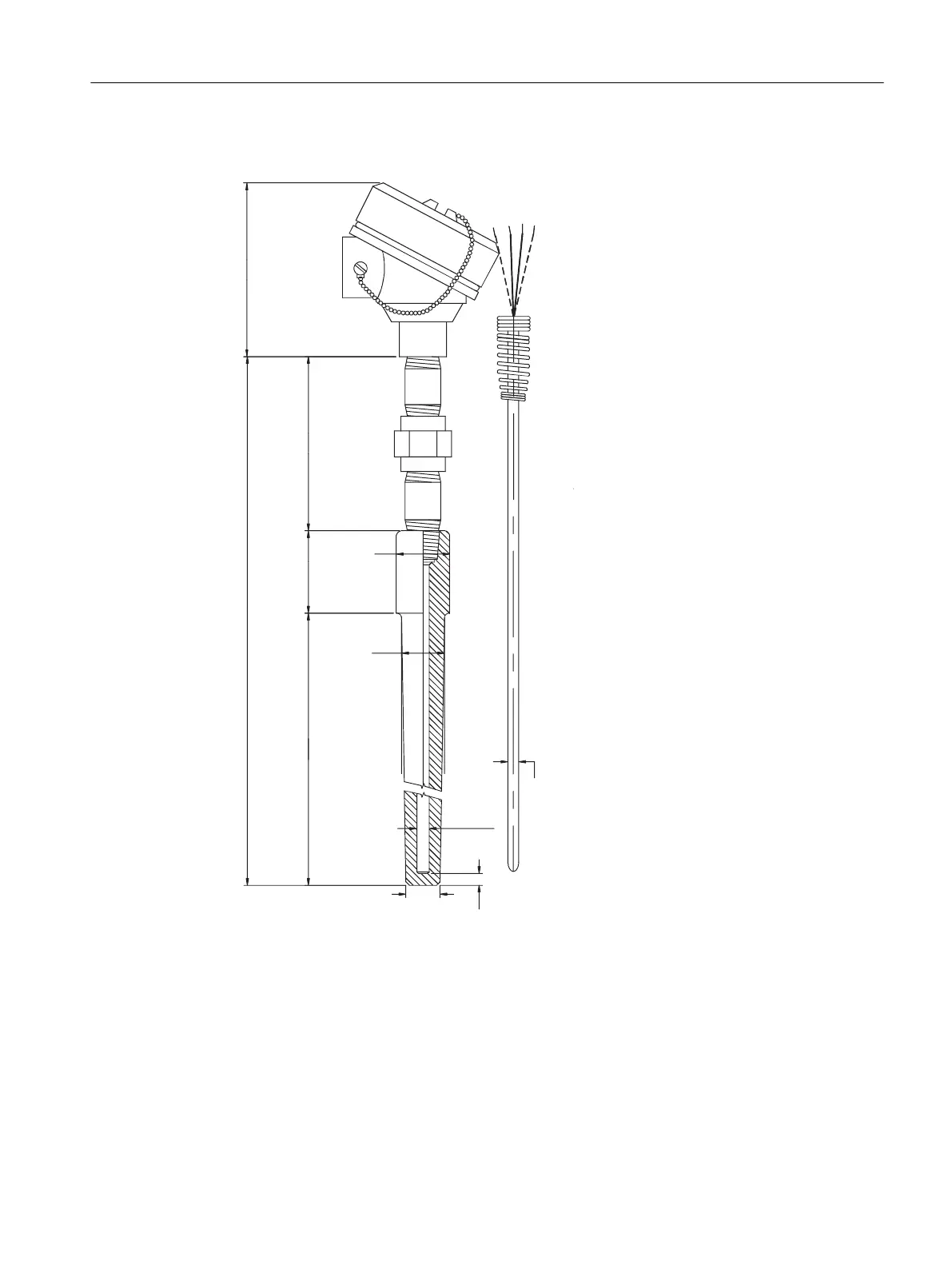

Figure 12-22 Dimensional drawings SITRANS TS500, type SWT, socket tapered well - dimensions in mm
(inch)
Dimension drawings
12.5 SITRANS TS500
SITRANS TS100/TS200/TS300/TS500/TSinsert/TSthermowell
Operating Instructions, 08/2020, A5E47810090-AA 179
