12.5.19 SITRANS TS500, type SWST, socket tapered well (7MC55..)
L Length of thermowell B Length of measuring insert
∅D1 External diameter of process connection N Nominal length
∅D2 External diameter of tip U Insertion length
X Extension length H
1
Head bottom thickness
Type Axx = 41 (1.61)
Type Bxx = 26 (1.02)
X
1
Lag lenght C Cone Length

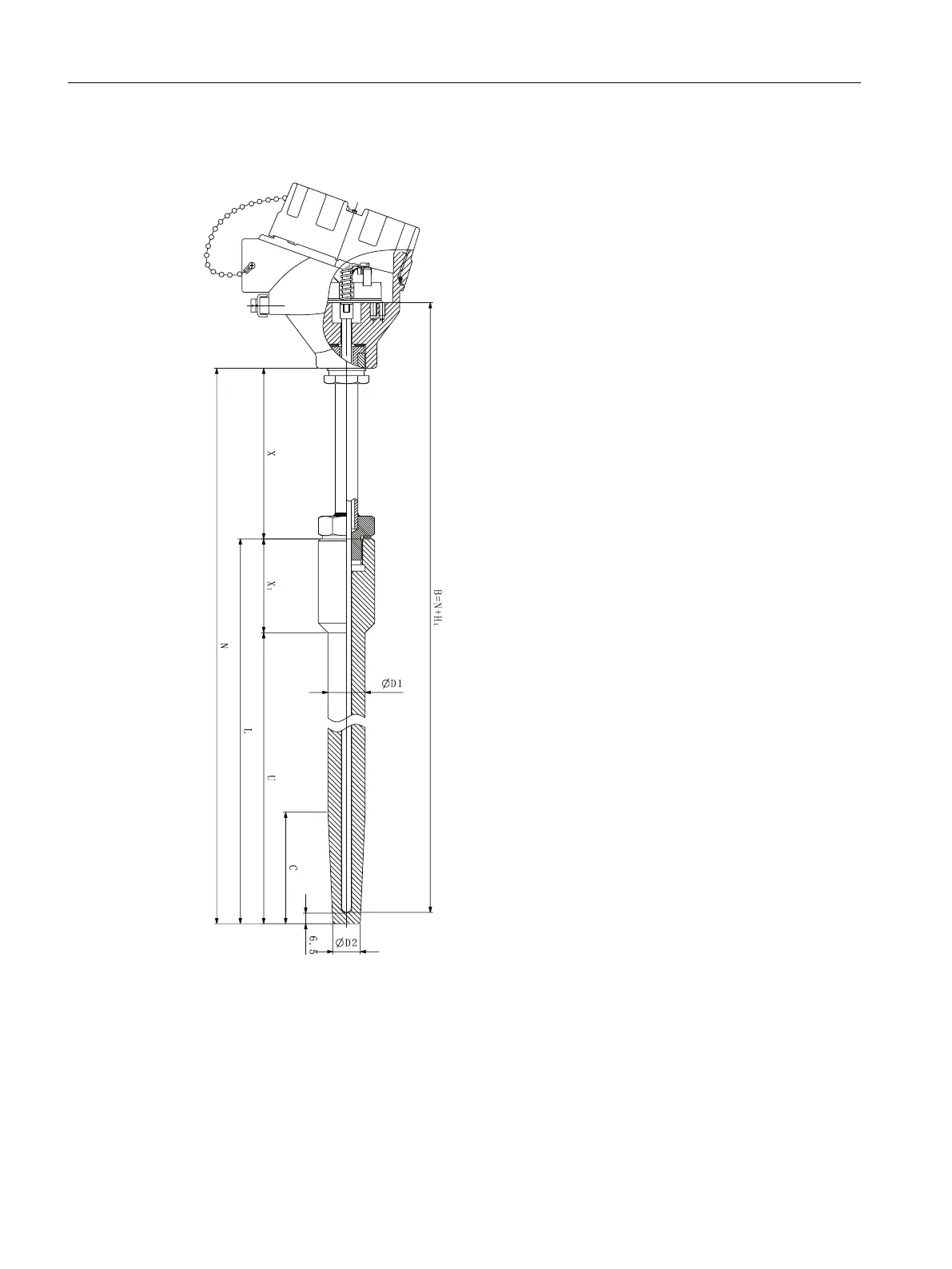

Figure 12-23 Dimensional drawings SITRANS TS500, type SWST, socket tapered well (7MC55…)
Dimension drawings
12.5 SITRANS TS500
SITRANS TS100/TS200/TS300/TS500/TSinsert/TSthermowell
180 Operating Instructions, 08/2020, A5E47810090-AA
