Siemens SITRANS TSinsert User Manual

12.5.4 SITRANS TS500, types 3G and 3F
LE
Ød
ØD3
HN
X
ØD2
U
K
1
E
35 (1.38)
50 (1.97)
ØD
ØD1
1
50 (1.97)
35 (1.38)
Leitungs-
einführung
Ød
ØD3
HN
XU
ØD2
ØD
ØD1
1

B = N + H
1
- 3
B = N + H
1
- 3
① Type 3G, fast pipe version with screw-in nipple and extension
② Type 3F, fast pipe version with 󹪞ange and extension
B Length of measuring insert (European) H
1
Type Axx: 41 (1.61)
Type Bxx: 26 (1.02)
∅d External diameter of measuring insert (6 (0.24)) H Height of head
∅D External diameter of process connection K Penetration depth
∅D1 Internal diameter of tip LE Cable inlet
∅D2 External diameter of tip N Nominal length
∅D3 Internal diameter of protective tube U Mounting length
E Thread dimension of process connection X Extension

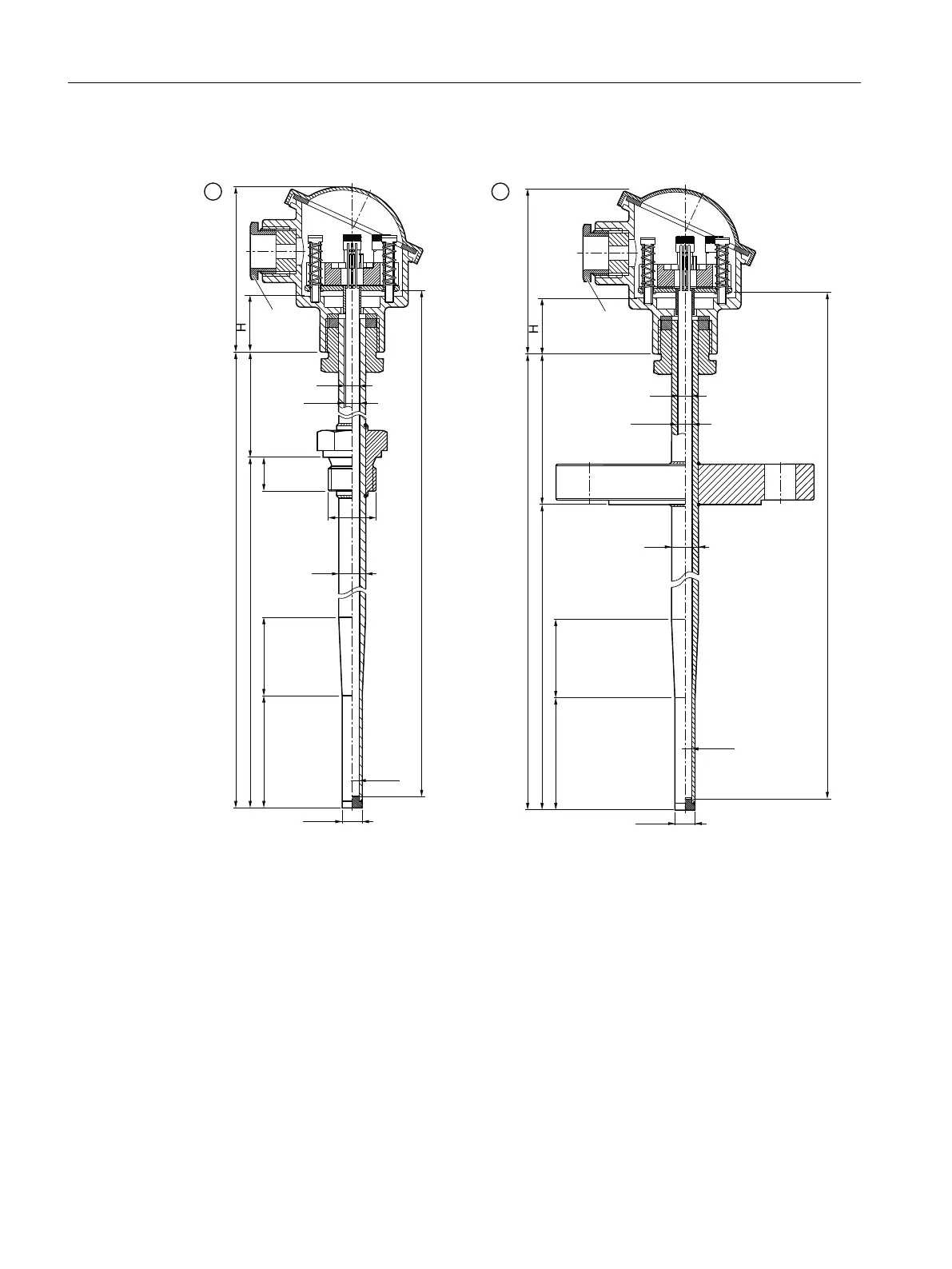

Figure 12-8 Dimensional drawings SITRANS TS500, types 3G and 3F
Dimension drawings
12.5 SITRANS TS500
SITRANS TS100/TS200/TS300/TS500/TSinsert/TSthermowell
162 Operating Instructions, 08/2020, A5E47810090-AA
