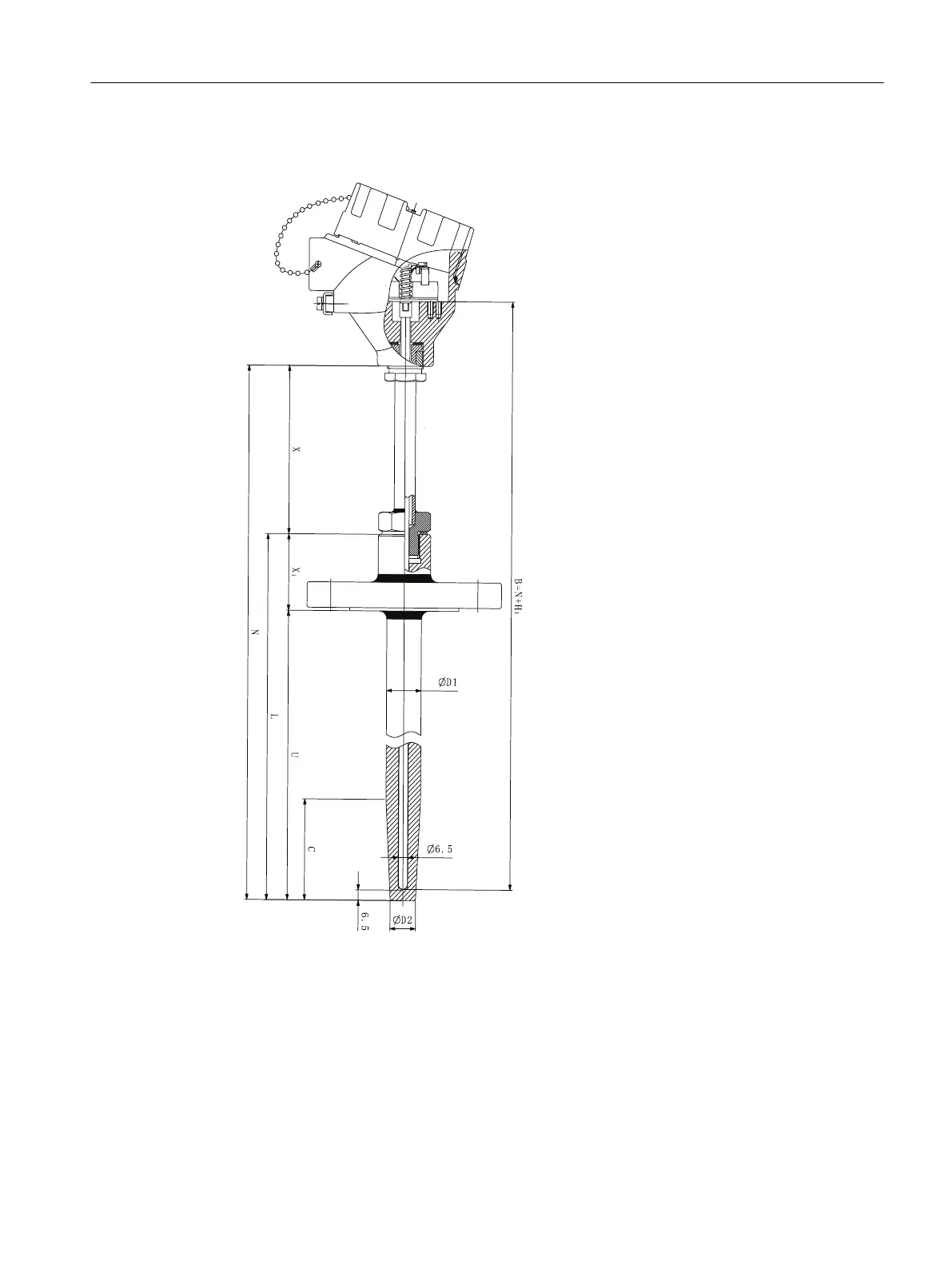

12.5.13 SITRANS TS500, type FST, anged tapered well (7MC55..)
L Length of thermowell B Length of measuring Insert
∅D1 External diameter of process connection N Nominal length
∅D2 External diameter of tip U Insertion length
Dimension drawings
12.5 SITRANS TS500
SITRANS TS100/TS200/TS300/TS500/TSinsert/TSthermowell
Operating Instructions, 08/2020, A5E47810090-AA 173
