Siemens SITRANS TSinsert - Lower Saturation Limit Parameter

3.8 mA
22.8 mA20 mA
20.5 mA
4 mA3.55 mA





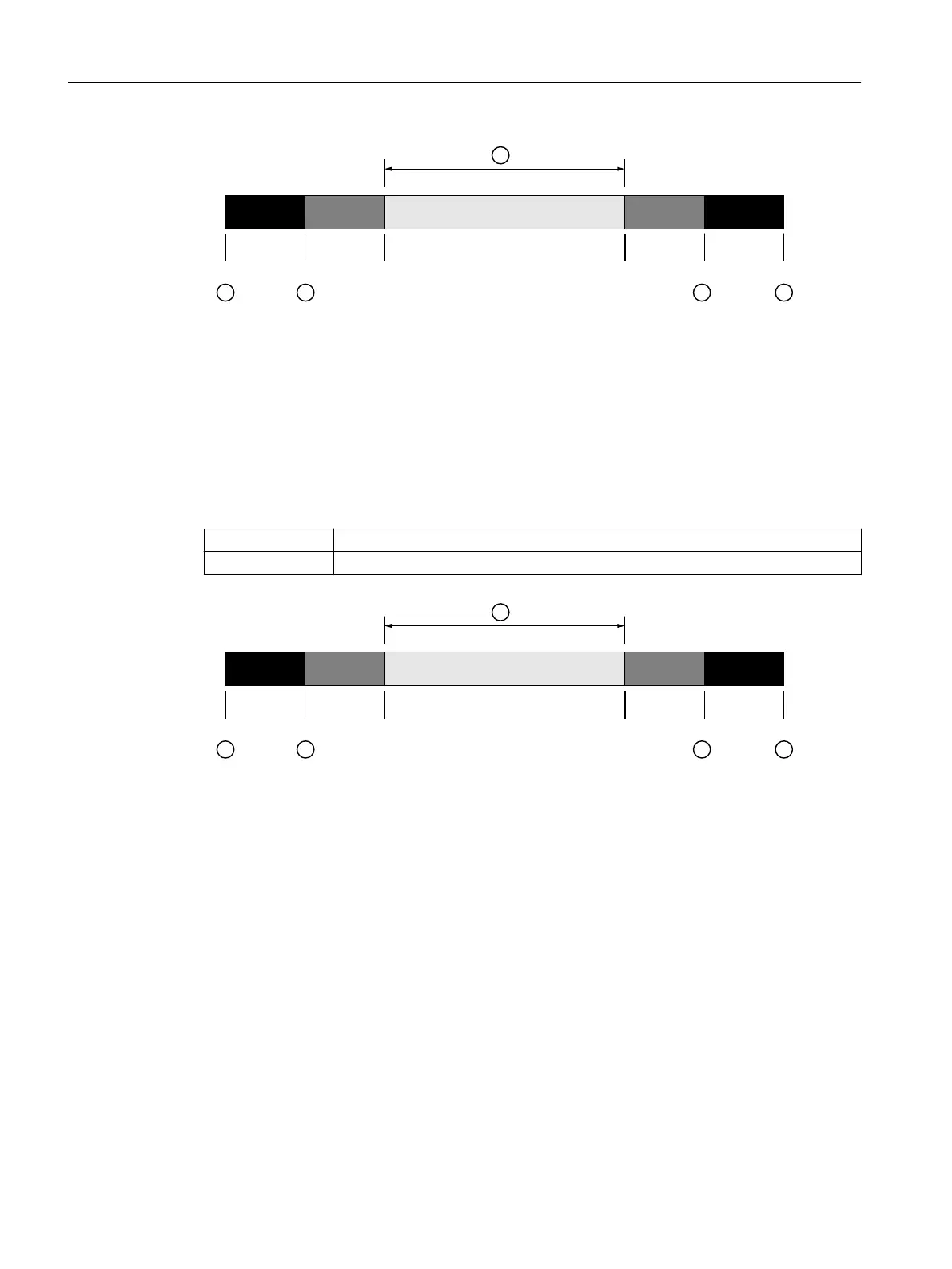

① Normal operation
② Lower fault current (factory setting)
③ Lower saturation limit (factory setting)
④ Upper saturation limit (factory setting)
⑤ Upper fault current (factory setting)
Upper fault current parameter
Adjusts the magnitude of the upper fault current ⑤.
Setting range: Between upper saturation limit ④ und 22.8 mA
Factory setting: 22.8 mA, or as speci󹪝ed in order
3.8 mA
22.8 mA20 mA
20.5 mA
4 mA3.55 mA




① Normal operation
② Lower fault current (factory setting)
③ Lower saturation limit (factory setting)
④ Upper saturation limit (factory setting)
⑤ Upper fault current (factory setting)
See also
Setting the fault current of the internal transmitter with switch to ≥ 21 mA (Page 106)
8.4.9.2 Lower saturation limit parameter
Sets the lower threshold for the lower saturation limit③.
Parameter assignment
8.4 Assigning parameters using remote operation
