3. Increase the protection from high-frequency radiation through shielded connecting cables.
– Lead the shielded connecting cables through the EMC cable glands ②.
- or -
– Connect the cable shield to the screw of the ground terminal ③.
The screw of the ground terminal is electrically connected to the external protective
conductor connection.
4. Connect the input terminals ④ and output terminals ⑤.
Connecting TH320 (Page 49)

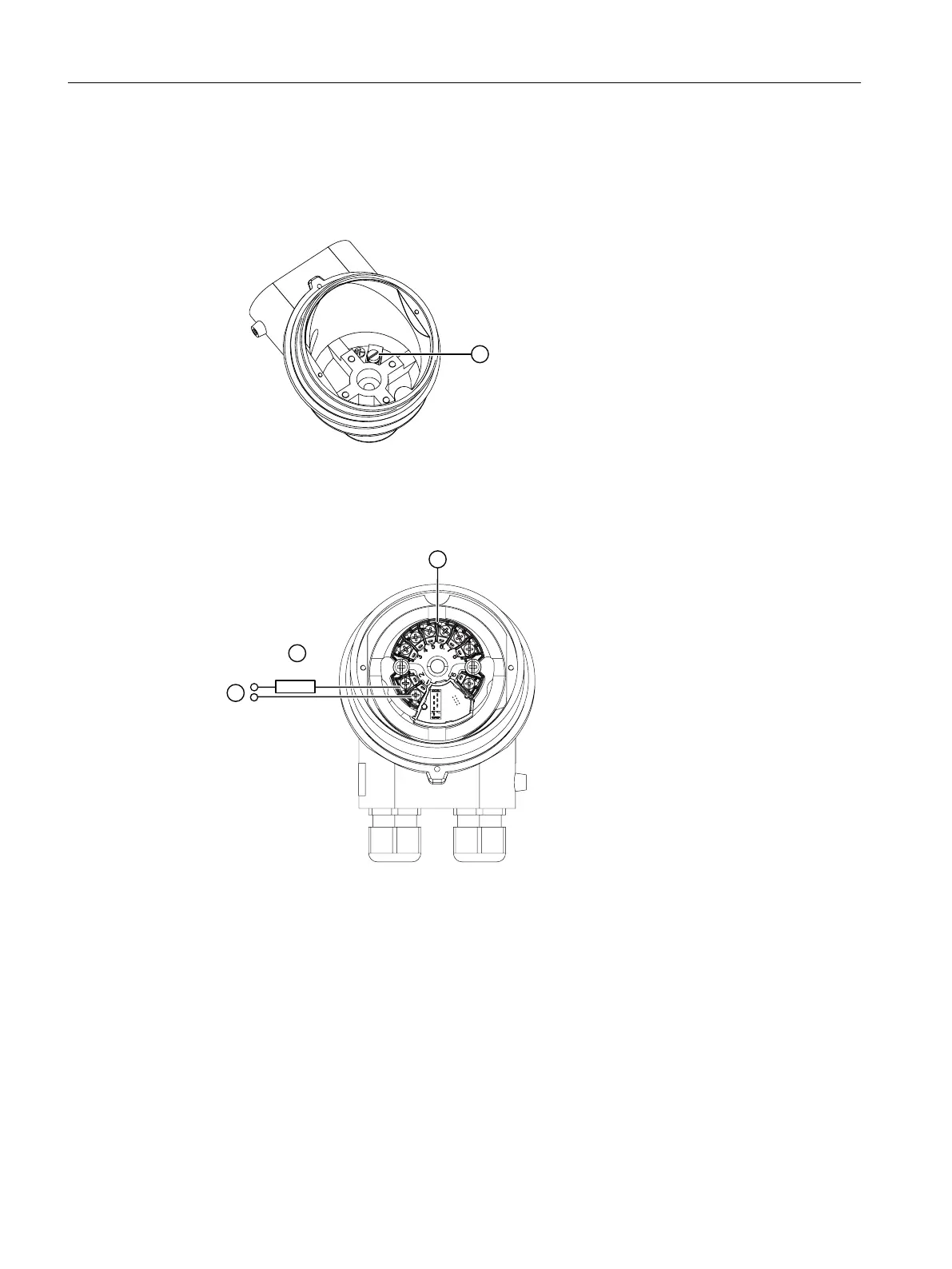

Figure 5-2 HART communication resistor ⑥ (optional)
5. Insert the temperature transmitter and screw it into place.
6. Insert the local display.
Connecting
5.6 Connecting the SITRANS TS500
SITRANS TS100/TS200/TS300/TS500/TSinsert/TSthermowell
44 Operating Instructions, 08/2020, A5E47810090-AA
