Snap-On TRITON-D10 User Manual

Data Cable / Connections Data Cable Connection (OBD-II/EOBD Vehicles)
18

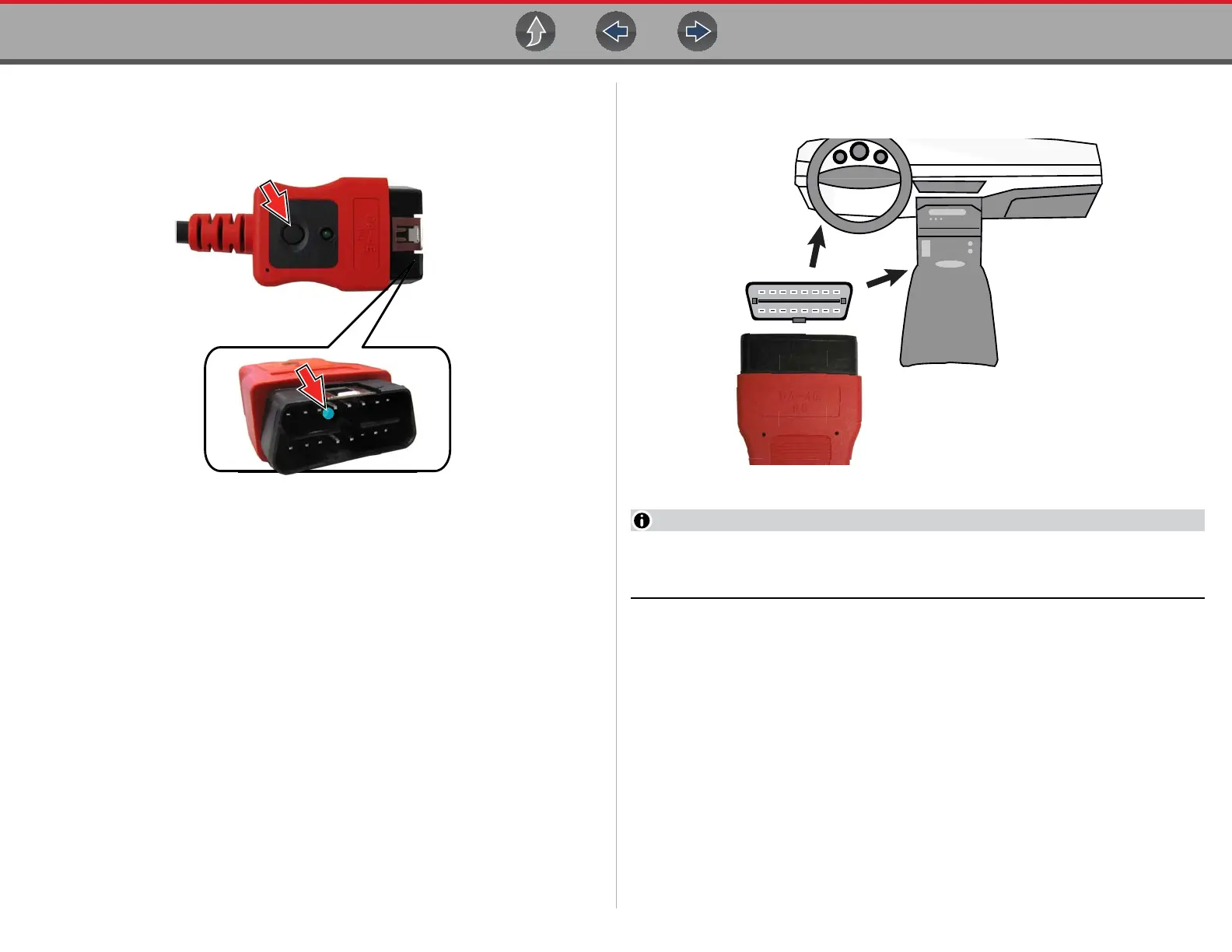

The supplied data cable, includes an LED flashlight on the vehicle DLC
connector end (Figure 3-2). The LED flashlight is powered by the diagnostic
tool battery, and is useful when locating the vehicle DLC.
Figure 3-2
2. Connect the 16-pin (J-1962) end of DA-4E cable (Figure 3-3) to the vehicle
DLC.
Figure 3-3
NOTE
During vehicle identification, on-screen cable connection instructions may be
provided along with the location of the DLC.
21 3 4 5 6 7 8
109 11 12 13 14 15 16
J-1962
DA-4E

Snap-On TRITON-D10 Specifications

General

Processor	Octa-core 2.0 GHz
Memory	4 GB RAM
Connectivity	Wi-Fi, Bluetooth
Battery Life	Up to 8 hours
Operating System	Android
Software Updates	Automatic via Wi-Fi
Warranty	1-year warranty
Software	Snap-on Diagnostic Software
Diagnostic Capabilities	Live Data
