Scope Multimeter Operation and Controls
84
Probe (Probe type “test” selection)
Different types of Probes are available from the probe option menu, depending on
which type of test you are performing. Changing the probe selection, also changes
the vertical scale to the applicable type of measurement.

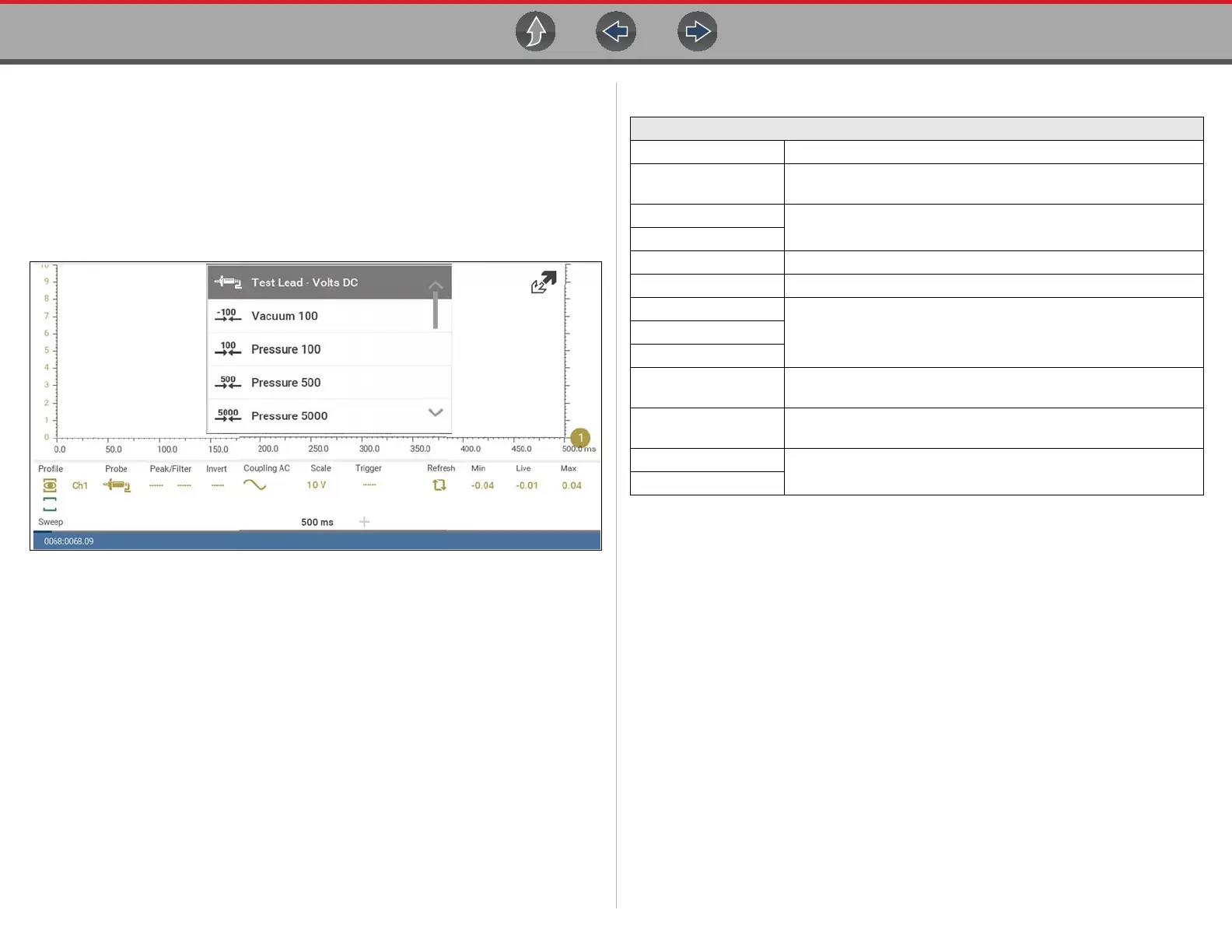

To select a Probe type, select the Probe icon to open the probe option menu, then
select a probe. The probe icon will change to the selected probe. Select Close from
the menu to close the menu.
Figure 9-19
For probe calibration information, see Test Lead / Probe Calibration on page 80.
Probe “test” Options
Menu Option Probe / Device Used
Test Lead - Volts DC
Standard Channel 1 and 2 test leads with alligator clips or test
probes
Vacuum 100
(optional) 0-100 psi pressure transducer with pressure adapter
Pressure 100
Pressure 500 (optional) 0-500 psi pressure transducer with pressure adapter
Pressure 5000 (optional) 0-5000 psi pressure transducer with pressure adapter
Low Amps 20
(optional) Low Amp ProbeLow Amps 40
Low Amps 60
Ignition
(optional) Secondary ignition adapter lead with desired secondary
ignition coil adapter
EEDM506D
Temperature
(optional) Part number - EEDM506D temperature adapter
MT5030 Vacuum
(optional) Part number - EEDM5030 0-500 pressure adapter
MT5030 Pressure
