S2 User Handbook
101
15 S2-ODPF/S2-ODP Digital Output PGM
Channel With & Without Master Fader
(Version 2)
A change was made to the hardware and rmware of the
S2-ODPF/S2-ODP modules around January 2008. Modules
prior to this date are likely to be Version 1, modules after this
date are likely to be Version 2. Externally, the only way to
check the Version number of this module which has
been tted into your S2, is to look at the layout of the
connectors on the rear panel. If the POWER and OUTPUTS
AND REMOTES connector is at the bottom of the panel
(see page 99), then you have a Version 2 module. If these
connectors are nearer the middle of the panel (see page 92),
then it is Version 1.

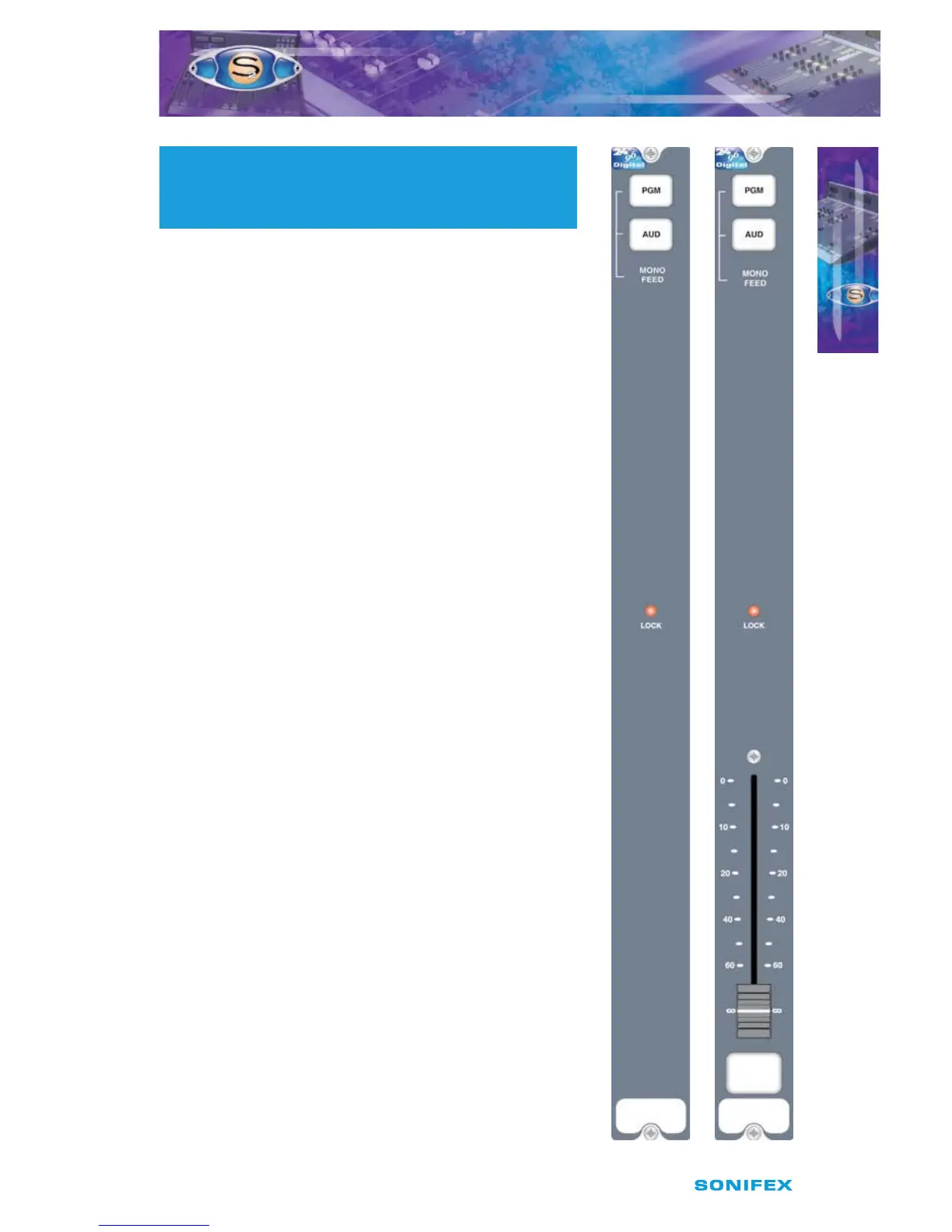

Panel Controls
Mono Output Selection
The Mono compatible output can be used to feed a mono
transmitter or any station output monitoring system that
requires a mono signal such as a background music system.
The Mono output can be derived from either the PGM or
AUD outputs by selecting the appropriate button.
Lock Indicator
The illuminated lock indicator shows that the digital output
is locked to the onboard master clock, incoming Word
clock or AES/EBU, S/PDIF compatible sync signal. If sync is
lost then the indicator will ash. The channel automatically
searches for a sync signal on the Word Clock, or the selected
digital input, and automatically locks to a valid sync clock.
To disable locking to the AES/EBU or S/PDIF input, simply
remove jumpers J10 and J11.
Fader (S2-ODPF only)
The 100mm VCA fader provides unity gain when fully open.
S2ODPF/S2ODP DIGITAL OUTPUT
PGM CHANNEL WITH & WITHOUT
MASTER FADER VERSION 2
S2ODPF/S2ODP DIGITAL OUTPUT PGM CHANNEL
WITH & WITHOUT MASTER FADER VERSION 2
15
S2 -ODP S2- ODPF
