S2 User Handbook
73
Summary of Jumper Settings for the 6 Way Stereo Source Channel With EQ
Jumper Set over Pins Eect
J1
1 & 2
None
Fader up signal cancels previously selected Cue/PFL.
Normal Cue/PFL function.
J2
1 & 2
None
Continuous momentary start from ON button, see following
description.
Normal start function.
J3
1 & 2
None
Latching contact for all remote starts.
Momentary contact for all remote starts.
J4
1 & 2
2 & 3
None
Auto start Timer 1.
Auto start Timer 2.
No timer function.
Note: Options in bold are set as default when shipped.

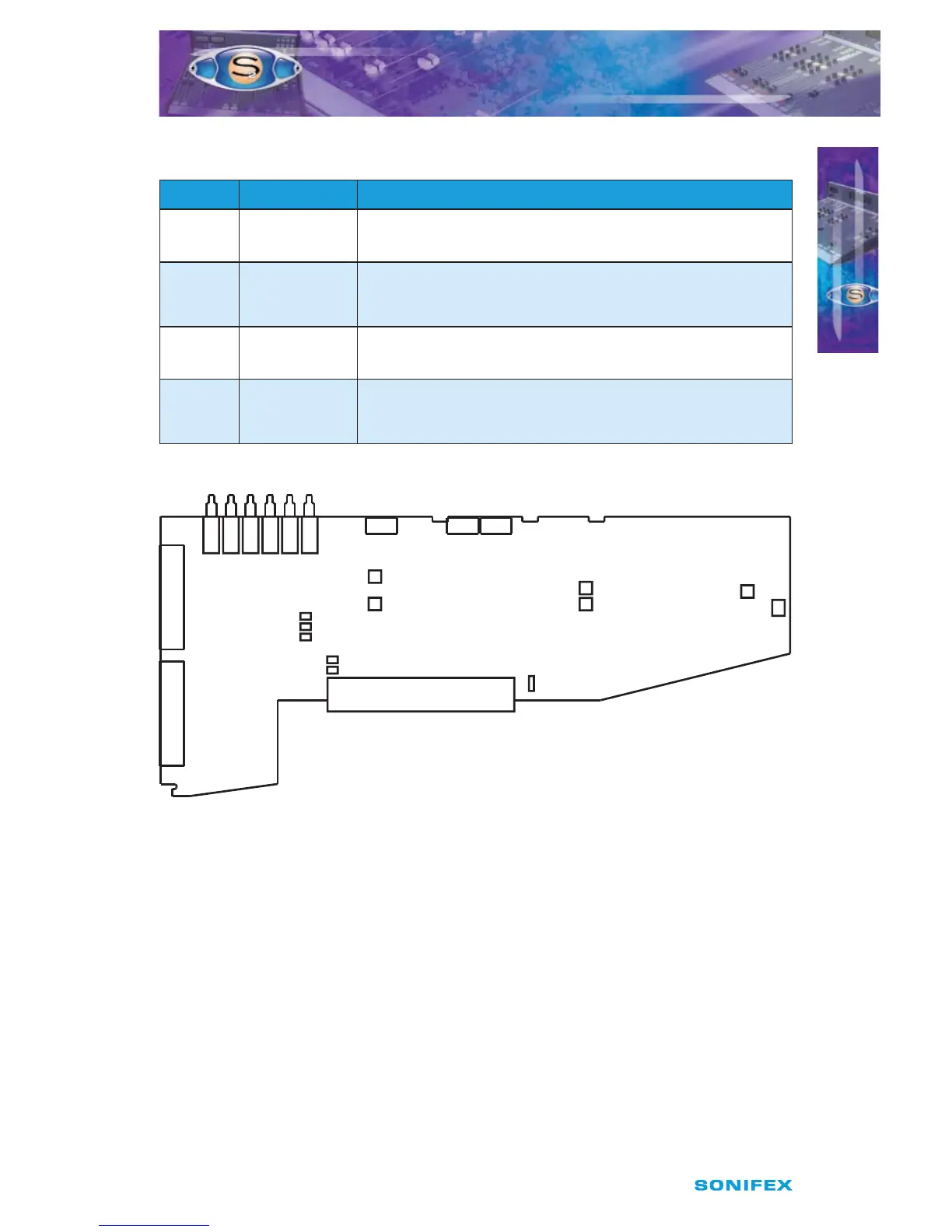

Fig 10-1 : S2 6 Way Source Selector Board Layout.
Cue/PFL Cancel
The Cue/PFL function is normally an alternate action. Press the button to select and press
again to de-select. However it may be desirable to have the fader up signal cancel a Cue/
PFL selection. Placing a jumper over J1 pins 1 & 2 will enable a previously selected Cue/PFL
function to be cancelled when the fader is up and the channel is ON. The default setting for
J1 is none (not tted).
Continuous Momentary Start
The continuous momentary start function can be used for equipment that only ever
requires a remote start but not a stop. Placing a jumper over J2 pins 1 & 2 enables the
function. When enabled the operation of the ON button is changed to a continuous start
button. With the fader down, the button shows red. With the fader up, the button shows
green and each press of the ON button will trigger a momentary start from the remote
contacts. The default setting for J2 is none (not tted).
S2-C6SS 6 WAY STEREO LINE SOURCE SELECT CHANNEL WITH EQ
S2-C6SS 6 WAY STEREO LINE SOURCE
SELECT CHANNEL WITH EQ
10
Left Sym.
Right Sym.
P3
P4
P5
LK4
LK5
Jumper Options
J1 = Fader Cancel CUE/PFL
J2 = Cont. Mom. Start from
On Button
J3 = Latch Start
A - Timer 1 B = Timer 2
Input Trim Left
P1
P2
Input Trim Right
J4
A
B
J4
J3
J2
J1
Special
Logic
Set VCA 0dB
