S2 User Handbook
Summary of Jumper Settings for the Dual Stereo Channel With & Without EQ
Jumper Set over Pins Eect
J1
1 & 2
None
Latching contact for Line 1 remote start.
Momentary contact for Line 1 remote start.
J2
1 & 2
None
Latching contact for Line 2 remote start.
Momentary contact for Line 2 remote start.
J3
1 & 2
None
Continuous momentary start from ON button, see
following description.
Normal start function.
J4
1 & 2
None
Fader up signal cancels previously selected CUE/PFL.
Normal CUE/PFL function.
J5 Not Fitted
J6
1 & 2
2 & 3
None
Auto start Timer 1.
Auto start Timer 2.
No timer function.
J7 Not Fitted
J8 Not Fitted
J9 Not Fitted
J10 Not Fitted
J11 Not Fitted
J12
1&2
None
Bal/Pan control is a Pan control
Bal/Pan control is a Balance control
J13
1&2
None
Bal/Pan control is a Pan control
Bal/Pan control is a Balance control
Note: Options in bold are set as default when shipped.

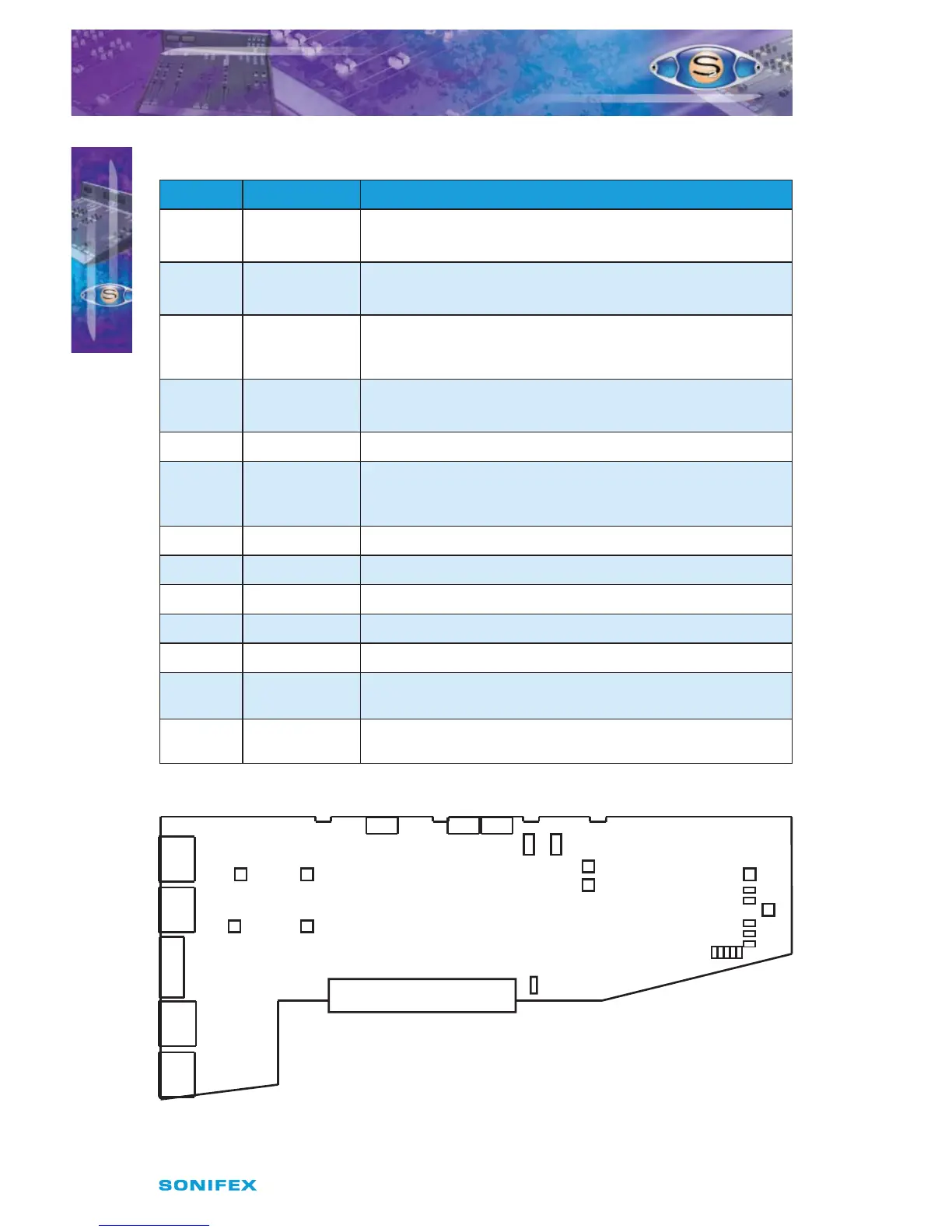

Fig 7-1 : S2 Dual Stereo Input With & Without EQ Board Layout.
P15
J13 J12
P16
P15 =
Left Sym.
P16 =
Right Sym.
Jumper Options
J1 = Latch Start I/P 1
J2 = Latch Start I/P 2
J3 = Cont. Mom. Start from On Button
J4 = Fader Cancel Cue/PFL
J5 = Unused
J6A = Timer 1 B = Timer 2
J6
P17
Set VCA 0dB
Dual Stereo
Dual Stereo
with EQ
J1-J5
LK4
LK5
LK9
LK10
LK11
Trim L
P3
I/P 1 Trim L
P1
I/P 1 Trim R
P2
Trim R
P4
A
B
Jumper
Options
Analogue
S2CSE/S2CS DUAL STEREO LINE
CHANNEL WITH & WITHOUT EQ
S2CSE/S2CS DUAL STEREO LINE
CHANNEL WITH & WITHOUT EQ
