S2 User Handbook
heard via headphones and/or loudspeakers. The level may be checked on meters and
adjusted via the Trim control and balanced via the Bal control. The button is illuminated
in green when CUE/PFL is active. There is a jumper option to cancel the CUE/PFL selection
when the fader is raised. This button works with both a momentary and latched
operation. If held down, the selection is cancelled when released, otherwise the button
is alternate action.
Fader
The 100mm VCA fader provides unity gain when fully open. The channel input signal is
routed to the outputs whenever the fader is open, the ON button is selected and either or
both of the routing buttons are selected.
ON Selection
The ON button works in conjunction with the fader and is used to control channel remotes,
routing, timers, etc. The button shows various states. When unlit the channel is o. Flashing
green indicates that there is no valid digital input. Flashing red indicates that the channel
has been selected to ON but remains unrouted i.e. neither PGM or AUD is selected. Flashing
red and green indicates that both of the above states are valid. Steady red indicates that the
channel is ON and “armed”, ready for the fader to be raised. Raising the fader changes the
illumination to green indicating that the channel is live. Alternatively, with the button unlit
the fader may be raised and the channel can be operated simply by selecting ON.
The illumination in this case toggles between unlit, channel OFF and green, channel ON.
Remotes, etc, are triggered when the fader is up and the channel ON button shows green.
Scribble Pad
A scribble pad is provided at the bottom for user labelling of the channel
function e.g. “CD 1”

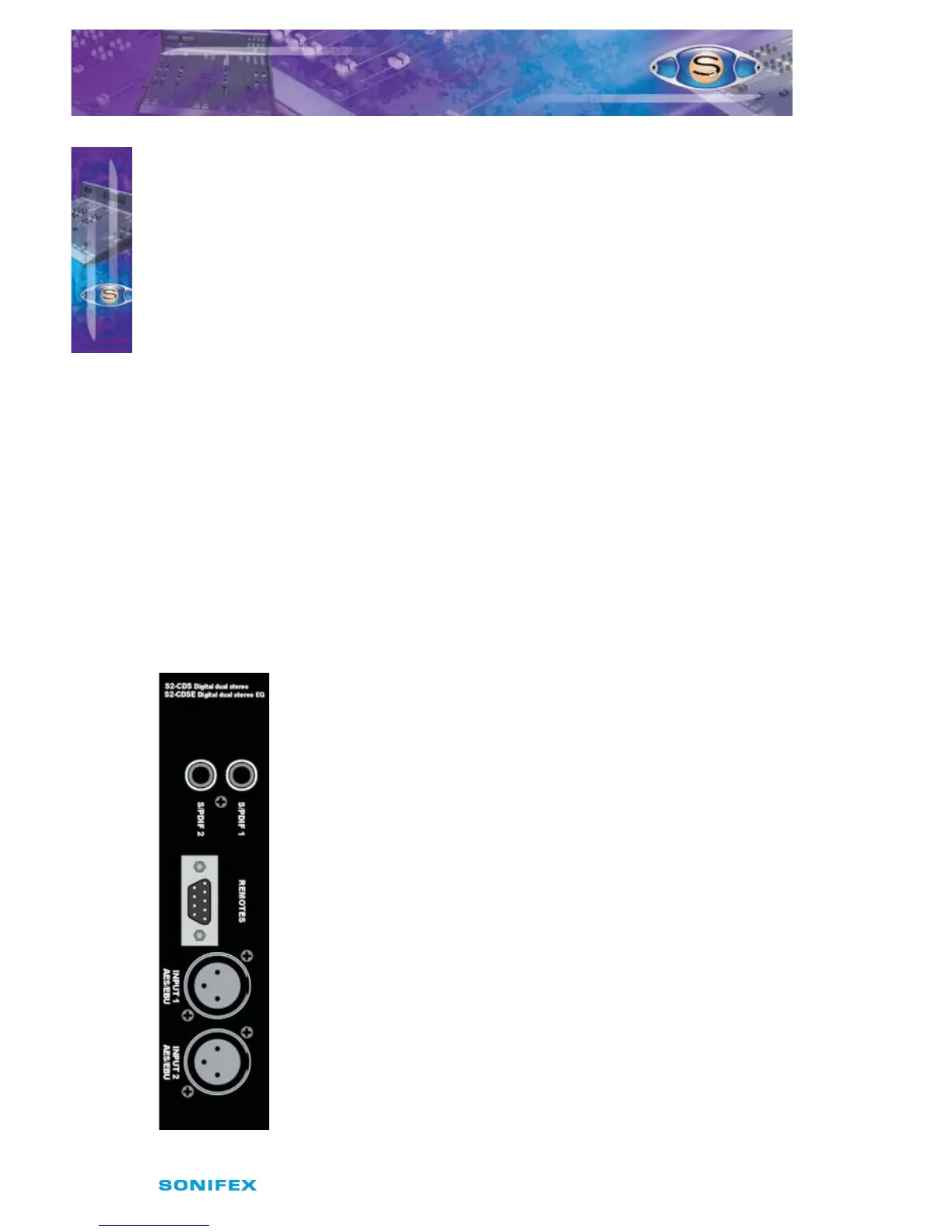

Rear Panel
S/PDIF Input Connector
Two phono connectors are used for S/PDIF Inputs 1 and 2. There are on
board jumpers to congure this input in place of the AES/EBU inputs .
Inner: Signal.
Outer: Screen.
Remotes Connector
This 9 pin D type plug provides inputs and outputs for the following
channel functions;
t -JOFSFNPUFTUBSU
t -JOFSFNPUFTUPQ
t -JOFSFNPUFTUBSU
t -JOFSFNPUFTUPQ
9
S2CDSE/S2CDS DIGITAL DUAL
STEREO LINE CHANNEL WITH &
WITHOUT EQ
S2CDSE/S2CDS DIGITAL DUAL STEREO
LINE CHANNEL WITH & WITHOUT EQ
