S2 User Handbook
8

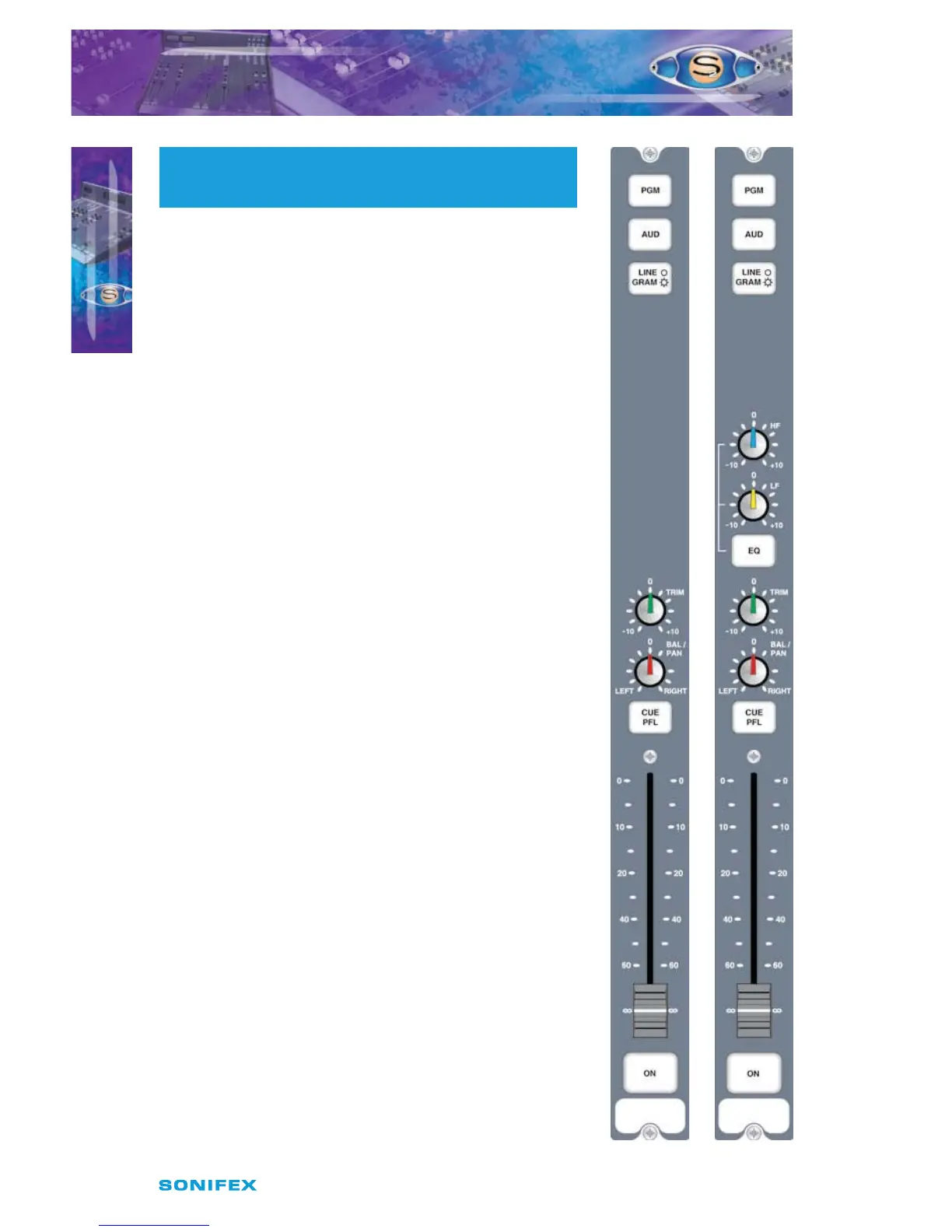

8 S2-CSGE/S2-CSG Stereo Line And Gram
Channel With & Without EQ
Panel Controls
PGM and AUD Selection
Selecting the PGM, AUD buttons routes the channel audio
output to the PGM and/or AUD mix busses. The buttons are
illuminated in green to indicate the routing status. Changing
the status of the PGM button is inhibited when the channel
is “live”.
LINE/GRAM Selection
Selecting the Line/Gram button changes the channel input
connection between Stereo Line on XLR and RIAA on phono.
The button is illuminated in red to indicate when Gram
(RIAA) is selected. The operation of the button is inhibited
when the channel is “live”.
Equalisation Controls (S2-CSGE only)
The HF and LF controls are used to adjust the equalisation of
the signal. The HF control boosts and cuts the signal by ±7dB
at 6.5kHz. The LF control boosts and cuts the signal by ±7dB
at 100Hz. The EQ button places the equalisation in and out
of the signal path. The button is illuminated in yellow when
the EQ is active.
TRIM Control
The TRIM pot provides an additional ±12dB of gain to ne
tune the input level.
BAL/PAN Control
The BAL/PAN control can be set to function as either a
Balance or Pan control, depending on the setting of
J12 & J13. As a balance control, full anti-clockwise shifts
the signal to the left and increases the signal by 6dB (right
channel reduces by 6dB); full clockwise shifts the signal
to the right and increases the signal by 6dB (left channel
reduces by 6dB). As a pan control, full anti-clockwise pans
the signal to the left and increases the signal by 6dB (right
channel reduces by 70dB); full clockwise pans the signal
to the right and increases the signal by 6dB (left channel
reduces by 70dB).
CUE/PFL Selection
Selecting the CUE/PFL button routes the pre-fader input
signal to the monitoring system where the signal can be
heard via headphones and/or loudspeakers. The level may
S2CSGE/S2CSG STEREO LINE AND
GRAM CHANNEL WITH & WITHOUT EQ
S2CSGE/S2CSG STEREO LINE AND
GRAM CHANNEL WITH & WITHOUT EQ
S2- CSG S2- CSGE
