S2 User Handbook

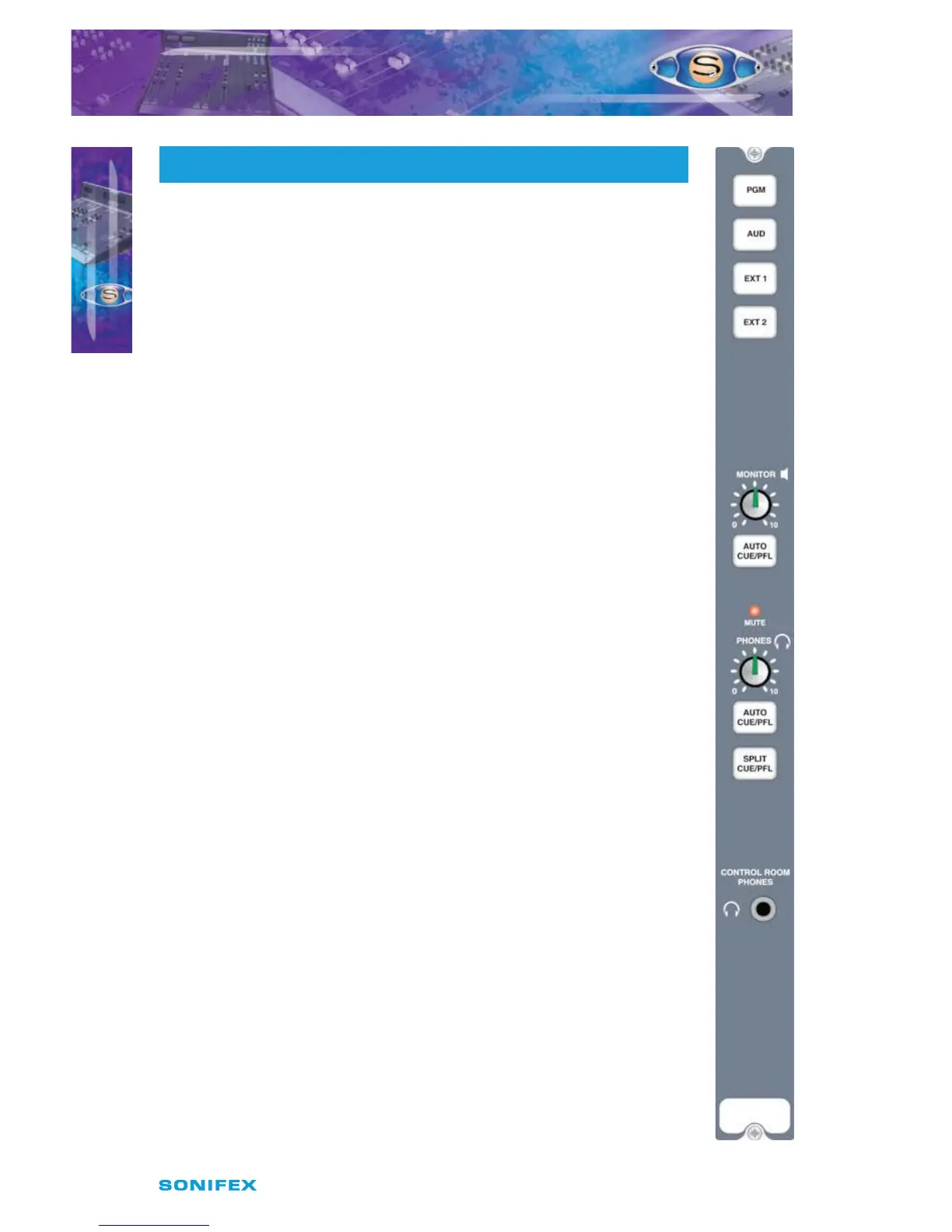

18 S2-OMC Control Room Monitor Channel
Panel Controls
PGM, AUD, EXT 1 & EXT 2 Selection
The electronically interlocking PGM, AUD, EXT 1 & EXT 2 buttons select the
monitor source for the control room headphones and loudspeaker monitors.
The buttons illuminate to show the selected source, PGM and AUD in green,
EXT 1 and EXT 2 in red. The External Inputs are used for monitoring an o air
signal or another studio output.
Monitor level
The control room monitor loudspeaker level can be variable between 0 (cut
o) and 10 (maximum). The output will need to be fed to a suitable power
amplier to drive the loudspeakers.
Monitor Auto Cue/PFL
When the yellow illuminated AUTO CUE/PFL button is selected, any input
channels selected to CUE/PFL are automatically routed to the control room
monitor loudspeakers.
Mute
The red mute LED will illuminate whenever a mic channel, which has been
designated to Control Room mute, goes live. This will mute the control
room monitors to prevent feedback. Two pairs of contacts on the remote
connector of the PGM output channel will close whenever the mute function
is active. These can be used to remotely illuminate “Mic Live” lights.
Phones
The control room headphone level can be varied between 0 (cut o) and
10 (maximum). Internal ampliers provide enough drive for headphone
impedances of 35 ohms and above.
Phones Auto Cue/PFL
When the yellow illuminated AUTO CUE/PFL button is selected, any input
channels selected to CUE/PFL are automatically routed to the control room
headphones.
Phones Split Cue/PFL
The control room headphones have the additional facility of SPLIT CUE/
PFL. When this button is selected, the monitor source will be heard in mono
in the left headphone, and CUE/PFL will be heard in mono in the right
headphone. The button is illuminated yellow when selected.
Control Room Phones
The control room headphones may be plugged into this standard 6.35mm
stereo jack socket or the parallel jack socket on the rear panel.
S2ODAF/S2ODA DIGITAL OUTPUT AUD CHANNEL
WITH & WITHOUT MASTER FADER VERSION 2
18
S2- OMC
S2OMC CONTROL ROOM
MONITOR CHANNEL
