11 S2-CT Telco Channel With EQ

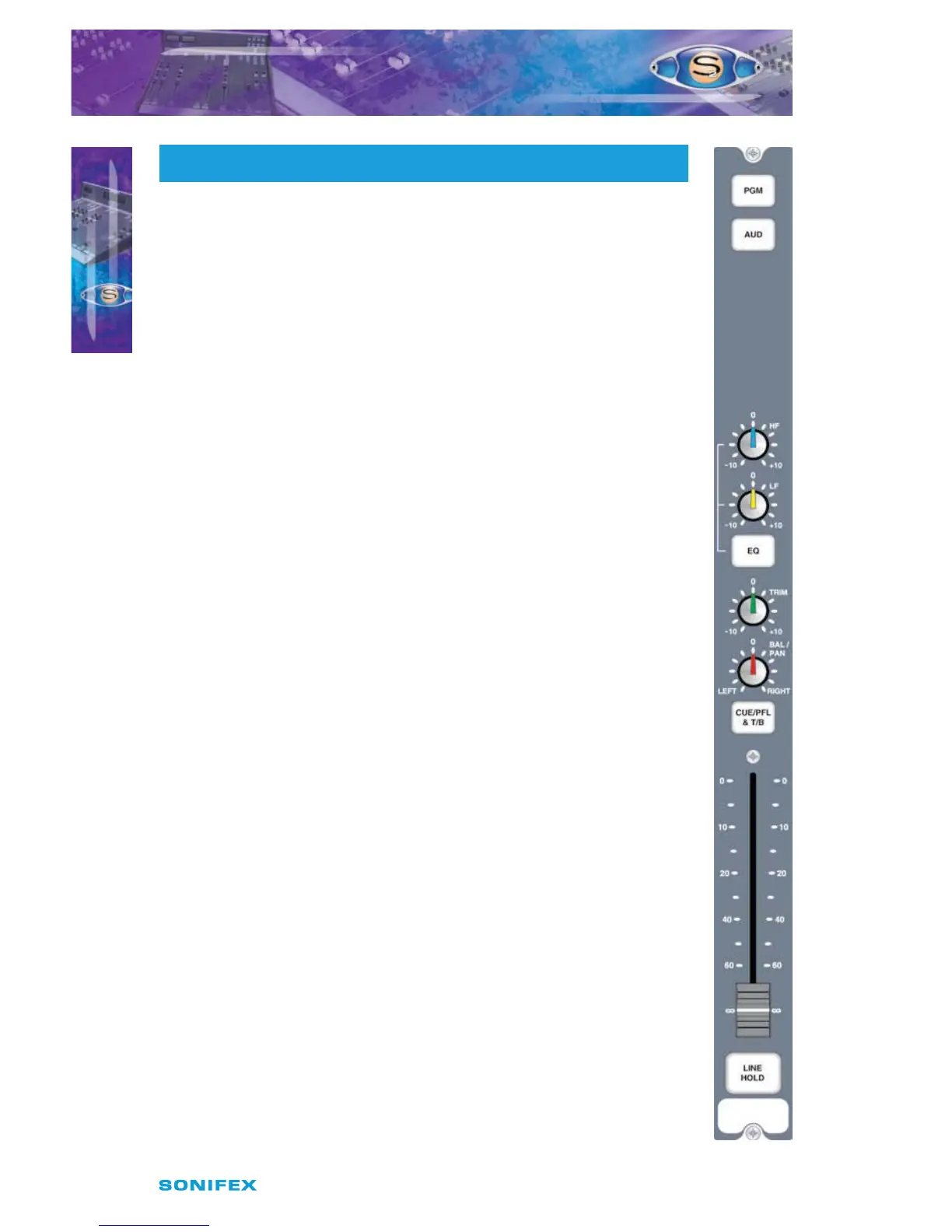

Panel Controls
PGM and AUD Selection
Selecting the PGM, AUD buttons routes the channel audio output to
the PGM and/or AUD mix busses. The buttons are illuminated in green
to indicate the routing status. Changing the status of the PGM button is
inhibited when the channel is “live”. Selecting the PGM button also routes the
channel to one of the two true cleanfeed busses. When selecting the AUD
button only, a cleanfeed is generated via the channel mix-minus system.
When both PGM and AUD are selected the channel operates in the true
cleanfeed mode, sending the PGM signal to the cleanfeed bus.
Equalisation Controls
The HF and LF controls are used to adjust the equalisation of the signal. The
HF control boosts and cuts the signal by ± 7dB at 6.5kHz. The LF control
boosts and cuts the signal by ± 7dB at 100Hz. The EQ button places the
equalisation in and out of the signal path. The button is illuminated in yellow
when the EQ is active.
TRIM control
The TRIM control provides an additional ± 12dB of gain to ne tune the input
signal level.
BAL/PAN Control
The BAL/PAN control is used to pan the mono input signal in the stereo
image. Full anti-clockwise pans the signal to the left and increases the signal
by 3dB (right channel reduces by 70dB); full clockwise pans the signal to the
right and increases the signal by 3dB (left channel reduces by 70dB).
CUE/PFL & T/B Selection
Selecting the CUE/PFL & T/B button routes the pre-fader input signal to the
monitoring system where the signal can be heard via headphones and/or
loudspeakers. The level may be checked on meters and adjusted via the TRIM
control and panned via the BAL/PAN control. In addition, talkback is routed
back to the caller via the cleanfeed system. This enables the presenter/
technical operator to communicate with the caller prior to putting the caller
live to air. The button is illuminated in green when CUE/PFL is active. There
is a jumper option to cancel the CUE/PFL selection when the fader is raised.
This button works with both a momentary and latched operation. If held
down, the selection is cancelled when released, otherwise the button is
alternate action.
Fader
The 100mm VCA fader provides unity gain when fully open. The channel
input signal is routed to the outputs whenever the fader is open, the ON
