S2 User Handbook
1
INTRODUCTION
INTRODUCTION
1
1 Introduction
S2 is a new breed of radio broadcast mixer. Using the latest technology components,
S2 oers digital audio quality with analogue reliability in a modular format. S2 has both
digital and analogue input channels, together with simultaneous analogue and digital
outputs.
Following on from the Sovereign range of audio mixers, S2 combines all the features needed
of a radio broadcast mixer in a stylish, ush-mounting chassis: a wide range of input and
output channels, PFL/Cue, fader-start operation of equipment, automatic monitor muting
on mic-live, light switching remote outputs, optional EQ on input modules, gram amp input
options and 2 main audio buses, allowing you to broadcast on the PGM bus while recording
on the AUD bus, with bus output selection on each module.

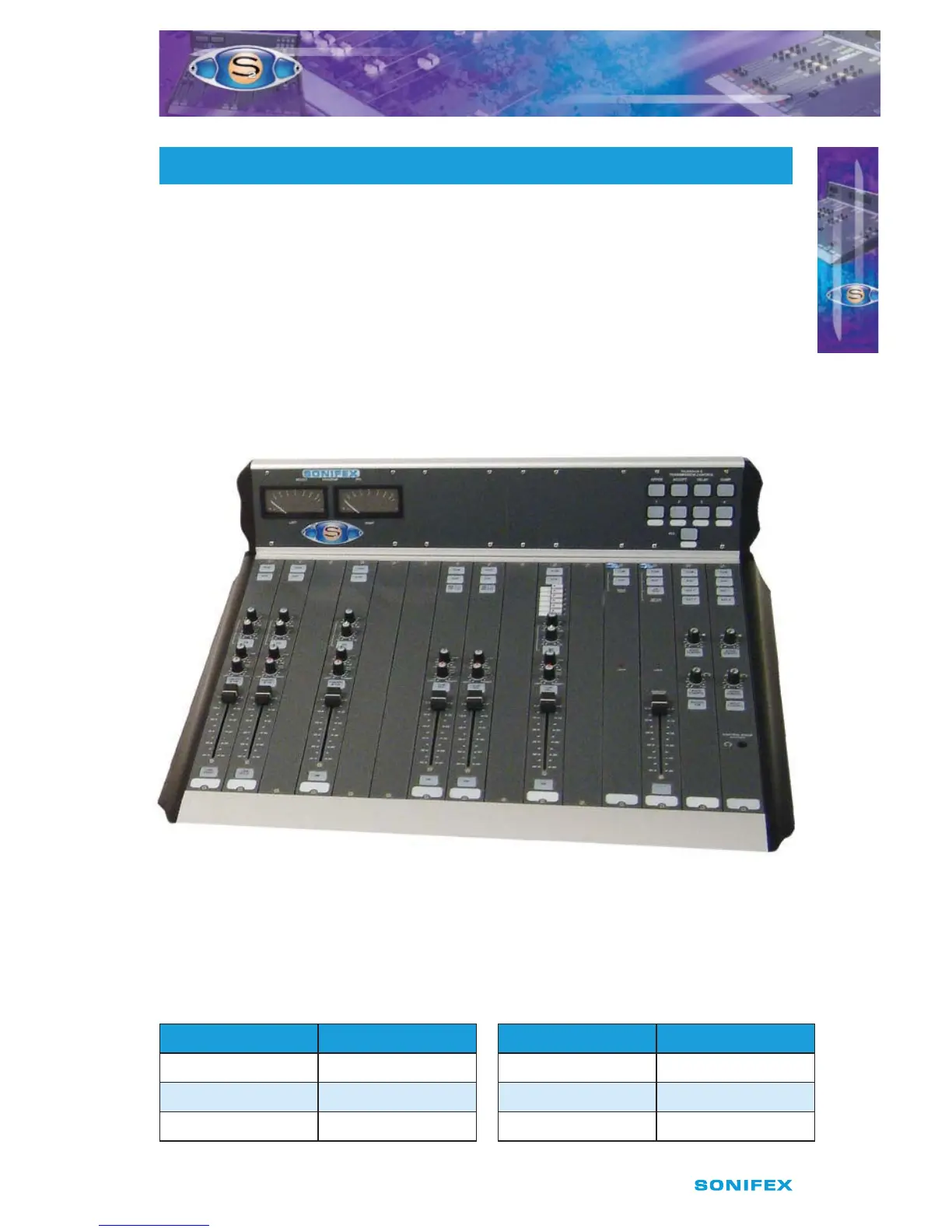

Fig 1-1 : S2-15 Chassis Complete with Channels.
Innovative Design
t 5IF4DIBTTJTJTBWBJMBCMFJODIBOOFMXJEUITFDUJPOTBMMPXJOH
and 30 channel width mixers. This means S2 can be used for small newsrooms or large
on-air situations. The following table shows the model number along with the total
channel width.
Model No. Number of Channels Model No. Number of Channels
S-05 5 S-20 20
S-10 10 S-25 25
S-15 15 S-30 30
