S2-MPPM Meterbridge PPM panel.
S2-MPPT Meterbridge true PPM meter panel. (This product has been discontinued)
S2-MVU Meterbridge VU meter panel.
S2-ML53 Meterbridge LED Meter panel.
S2-MPH Meterbridge Phase Meter panel.
S2-MT Meterbridge dual timer panel.
S2-ML Meterbridge loudspeaker monitor and talkback panel.
S2-MTB6 Meterbridge 6 way talkback panel.
S2-MTBS Meterbridge Station Master talkback panel.
S2-M6SS S2 Meterbridge 6 way source select panel.
S2-MSB1 Meterbridge 1 button switch panel.
S2-MSB3 Meterbridge 3 button switch panel.
S2-MB1-5 Meterbridge blanking plate channel width 1-5.
Meterbridge Distribution Board
The Meterbridge Distribution Board is situated in the rear section of the meterbridge
metalwork and is the interface between the channel area of the desk and the meterbridge
modules. Six connectors on the board provide power and various signals to the meterbridge
modules and it is therefore possible, where space permits, to install 1 x S2-ML, 1 x S2-MT,
and up to three of your chosen style of meter panels. Meters can be congured to display
PFL, PGM, or Monitor, which is the signal selected by the buttons on the PGM output
module. The sixth connector provides power only for customer option meterbridge units.
The meterbridge distribution board has active circuitry allowing a basic mixer set up with
one set of meters displaying the PGM output, or PGM output interrupted by PFL. Jumpers
J1 and J2 select between: PGM output, jumpers over pins 1 & 2, or PGM interrupted by PFL,
jumpers over pins 2 & 3. Meters should be plugged up to the “Output Meter” connector, PL6.
The red “PFL” led will illuminate when PFL is being displayed.
When the S2 is used for a split frame installation, a meterbridge distribution board is tted
to each meterbridge section.

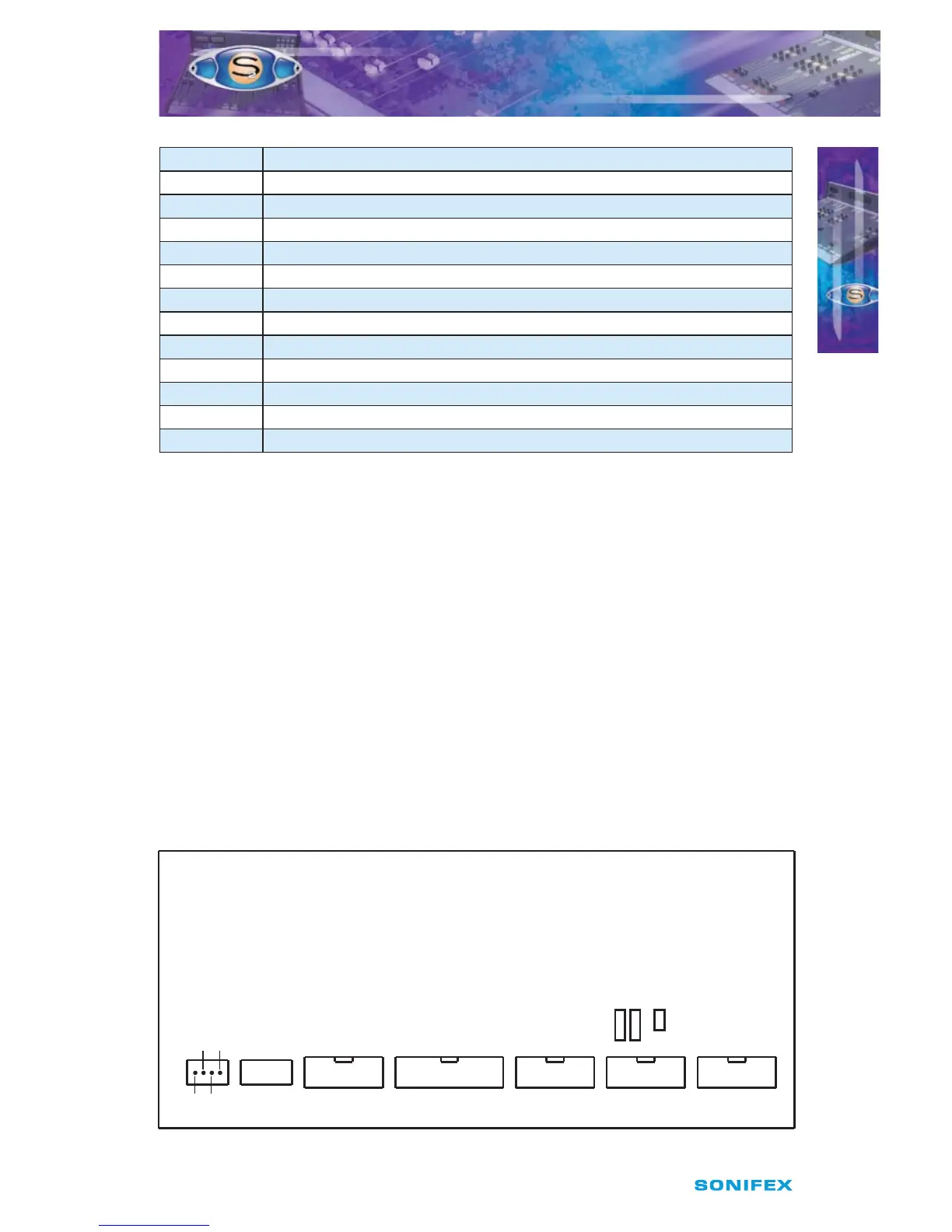

Fig 20-1 : Meterbridge Distribution Board Layout.
J2
B
A
B
A
J1 J3
Spare Power
Timer PFL/ T/B LS From Output Module Monitor Meter PGM Output Meter PFL Meter
J1, J2 In Position A Output Meter Reads Stereo PGM
J1, J2 In Position B Output Meter Reads Stereo PGM Interrupted By PFL
J3 On Enables PFL LED On Output Meter Board
