S2 User Handbook
METERBRIDGE MODULES
METERBRIDGE MODULES
20
S2-MTB6 Meterbridge 6 Way Talkback Panel

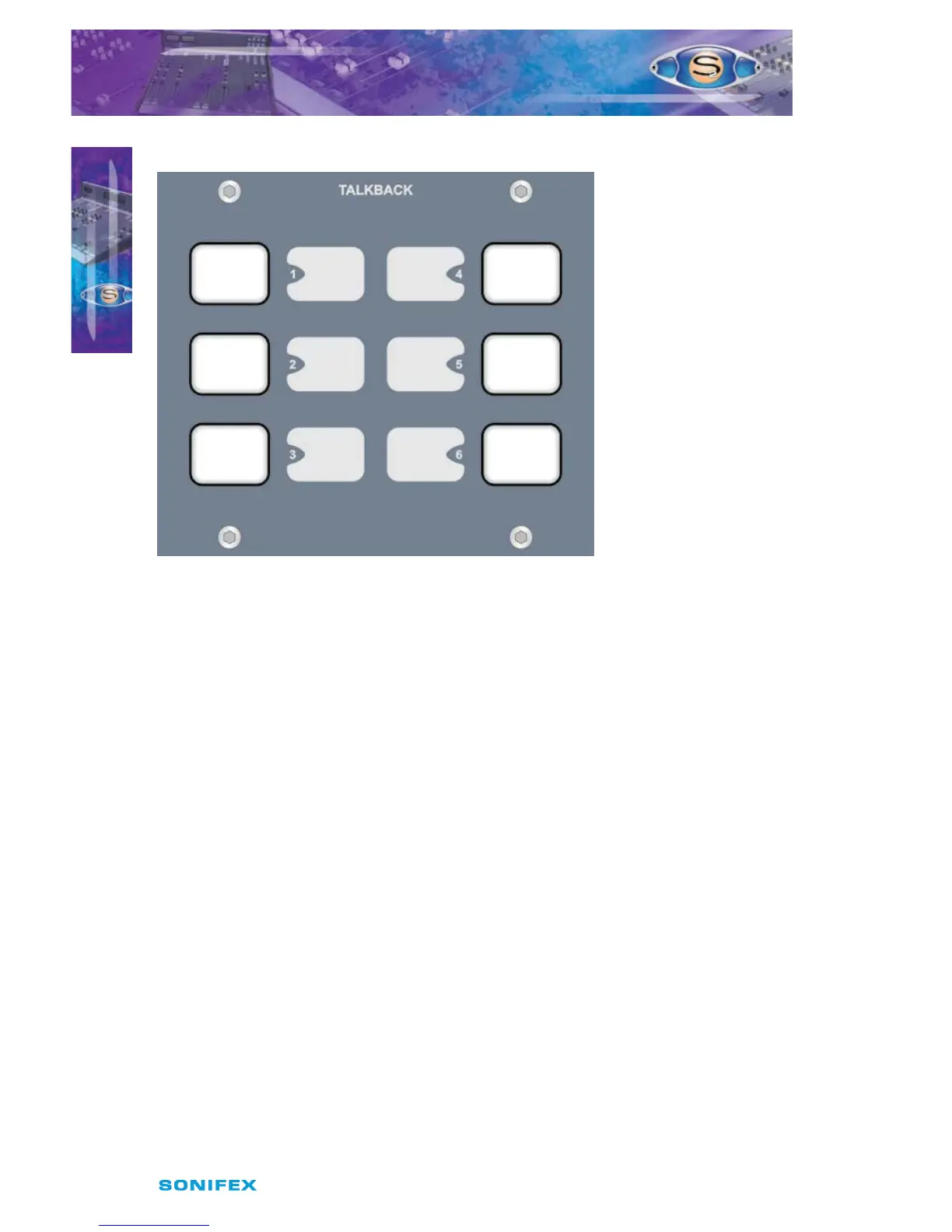

Fig 20-8 : Meterbridge 6 Way Talkback Panel.
The S2-MTB6 Meterbridge Talkback Panel is used for communicating with up to 6 other
locations. While a button is pressed, the switch is illuminated and the talkback is active. The
buttons work with both a momentary and latched operation. If held down, the selection is
cancelled when released, otherwise the button is alternate action.
Rear Panel
External Talkback Connector
This 15 pin D type plug is used for connecting to other talkback panels in other mixers,
or dedicated talkback systems.
The connector pin-out is as follows;
Pin 1: Talkback 1 out phase.
Pin 2: Talkback 2 out phase.
Pin 3: Talkback 3 out phase.
Pin 4: Talkback 4 out phase.
Pin 5: Talkback 5 out phase.
Pin 6: Talkback 6 out phase.
Pin 7: Talkback in phase.
Pin 8: Ground.
Pin 9: Talkback 1 out non-phase.
Pin 10: Talkback 2 out non-phase.
Pin 11: Talkback 3 out non-phase.
Pin 12: Talkback 4 out non-phase.
Pin 13: Talkback 5 out non-phase.
Pin 14: Talkback 6 out non-phase.
Pin 15: Talkback in non-phase.
