9 S2 -CDSE/S2-CDS Digital Dual Stereo
Line Channel With & Without EQ
Panel Controls

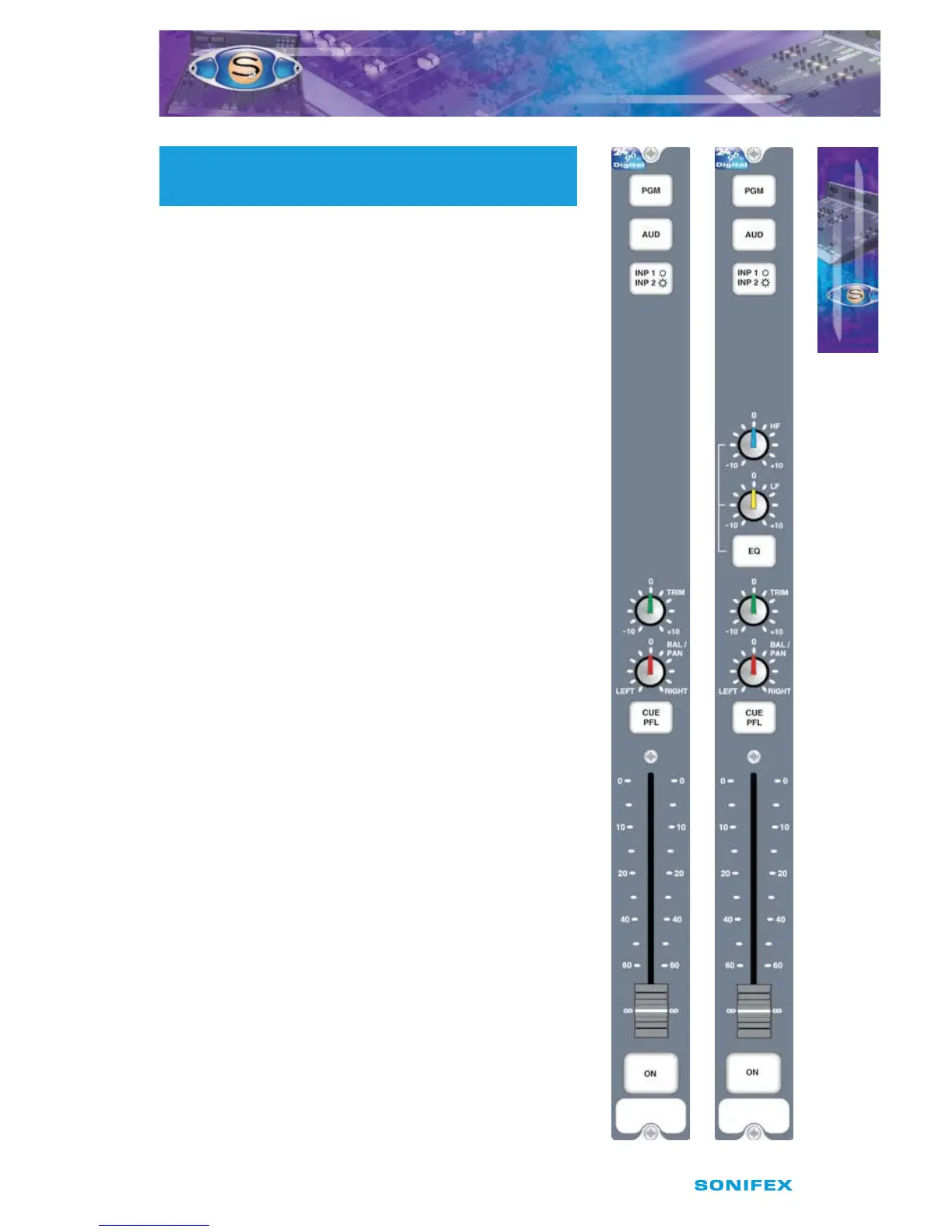

PGM and AUD Selection
Selecting the PGM, AUD buttons routes the channel
analogue audio output to the PGM and/or AUD mix busses.
The buttons illuminate green to indicate the routing status.
Changing the status of the PGM button is inhibited for a
“live” channel.
INP 1/INP 2 Selection
Selecting the INP 1/INP 2 button changes the channel input
connection between Input 1 and Input 2. The digital inputs
can be congured by internal jumpers to be either AES/
EBUor S/PDIF. The button is illuminated in red to indicate
when Input 2 is selected. The operation of the button is
inhibited for a “live” channel.
Equalisation Controls (S2-CDSE only)
The HF and LF controls are used to adjust the equalisation of
the signal. The HF control boosts and cuts the signal by
± 7dB at 6.5kHz. The LF control boosts and cuts the signal by
±7dB at 100Hz. The EQ button places the equalisation in and
out of the signal path. The button is illuminated in yellow
when the EQ is active.
TRIM Control
The TRIM pot provides an additional ±12dB of gain to ne
tune the input level.
BAL/PAN Control
The BAL/PAN control can be set to function as either a
Balance or Pan control, depending on the setting of
J12 & J13. As a balance control, full anti-clockwise shifts
the signal to the left and increases the signal by 6dB (right
channel reduces by 6dB); full clockwise shifts the signal
to the right and increases the signal by 6dB (left channel
reduces by 6dB). As a pan control, full anti-clockwise pans
the signal to the left and increases the signal by 6dB (right
channel reduces by 70dB); full clockwise pans the signal
to the right and increases the signal by 6dB (left channel
reduces by 70dB).
CUE/PFL Selection
Selecting the CUE/PFL button routes the pre-fader input
signal to the monitoring system where the signal can be
