S2 User Handbook
43
7
7 S2-CSE/S2-CS Dual Stereo Line
Channel With & Without EQ
Panel Controls
PGM and AUD Selection
Selecting the PGM, AUD buttons routes the channel audio
output to the PGM and/or AUD mix busses. The buttons are
illuminated in green to indicate the routing status. Changing
the status of the PGM button is inhibited when the channel
is “live”.
INP 1/INP 2 Selection
Selecting the INP 1/INP 2 button changes the channel input
connection between Input 1 and Input 2. The button is
illuminated in red to indicate when Input 2 is selected.
The operation of the button is inhibited when the channel
is “live”.
Equalisation Controls (S2-CSE only)
The HF and LF controls are used to adjust the equalisation of
the signal. The HF control boosts and cuts the signal by ±7dB
at 6.5kHz. The LF control boosts and cuts the signal by ±7dB
at 100Hz. The EQ button places the equalisation in and out
of the signal path. The button is illuminated in yellow when
the EQ is active.
TRIM control
The TRIM control provides an additional ±12dB of gain to
ne tune the input signal level.
BAL/PAN Control
The BAL/PAN control can be set to function as either a
Balance or Pan control, depending on the setting of J12 &
J13. As a balance control, full anti-clockwise shifts the signal
to the left and increases the signal by 6dB (right channel
reduces by 6dB); full clockwise shifts the signal to the right
and increases the signal by 6dB (left channel reduces by
6dB). As a pan control, full anti-clockwise pans the signal
to the left and increases the signal by 6dB (right channel
reduces by 70dB); full clockwise pans the signal to the
right and increases the signal by 6dB (left channel
reduces by 70dB).
CUE/PFL Selection
Selecting the CUE/PFL button routes the pre-fader input
signal to the monitoring system where the signal can be
heard via headphones and/or loudspeakers. The level may
S2CSE/S2CS DUAL STEREO LINE
CHANNEL WITH & WITHOUT EQ
S2CSE/S2CS DUAL STEREO LINE
CHANNEL WITH & WITHOUT EQ

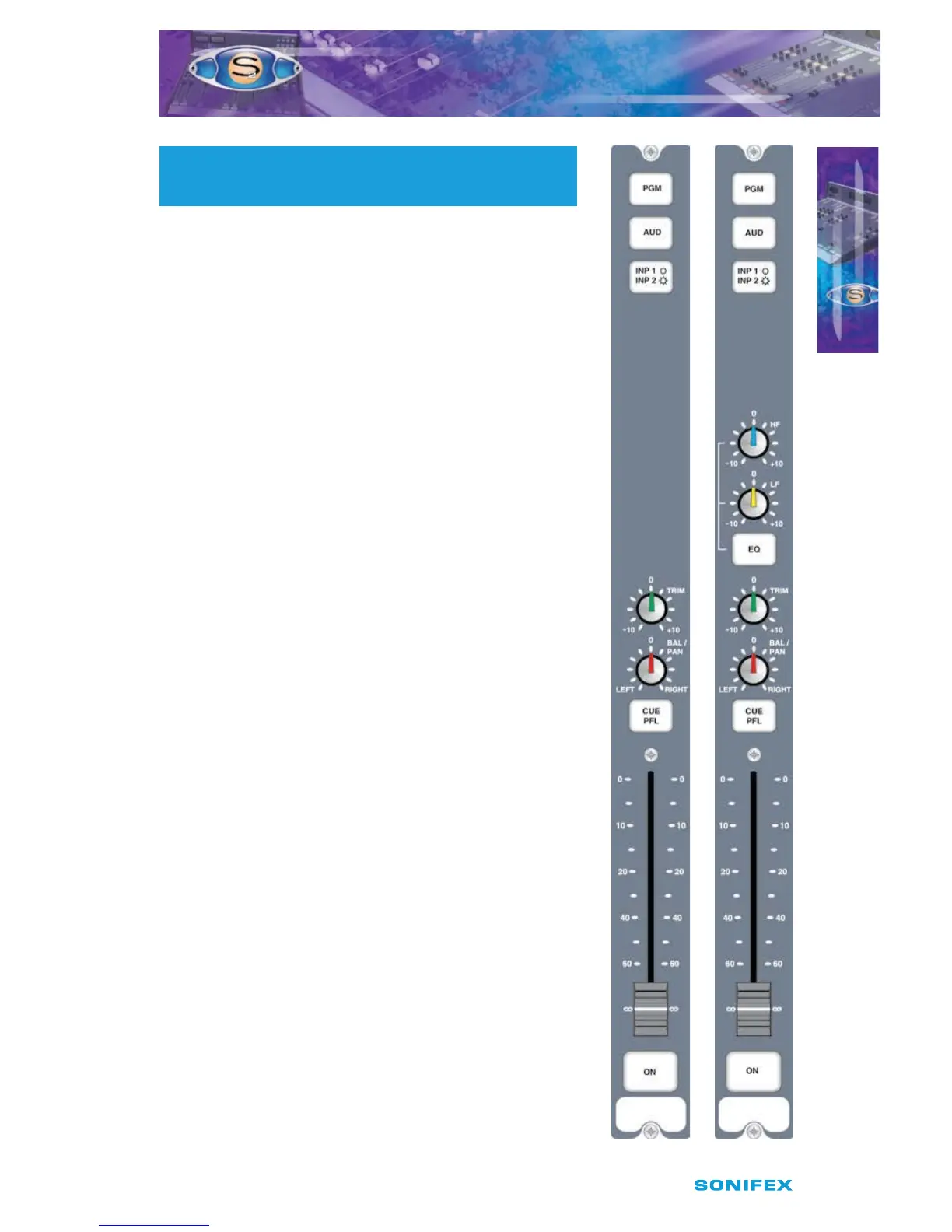

S2- CS S2 -CSE
