S2OMS STUDIO MONITOR CHANNEL
S2OMS STUDIO MONITOR CHANNEL

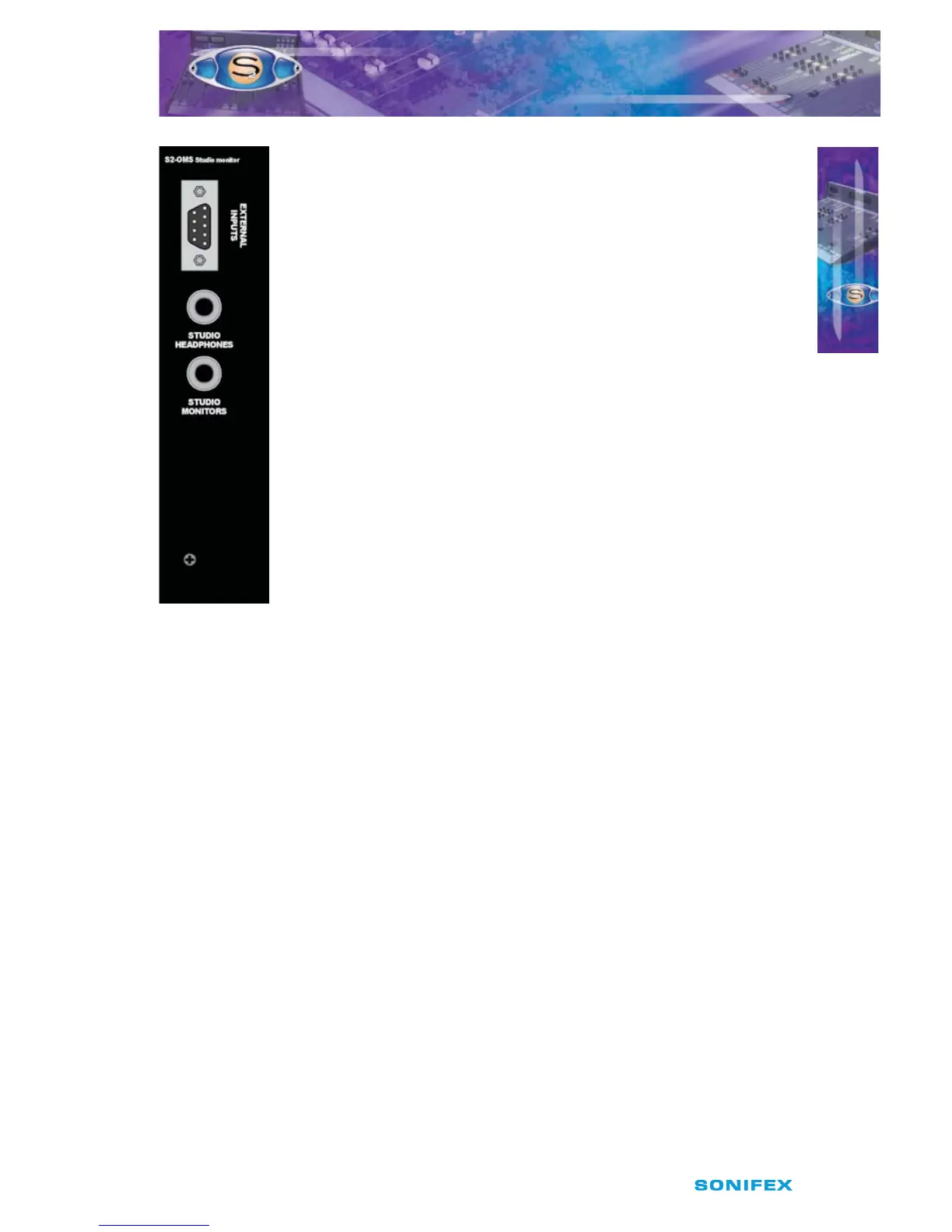

Rear Panel
External Inputs Connector
This 9 pin D type plug is used for the stereo balanced external input
signals.
The connector pin-out is as follows;
Pin 1: Chassis ground.
Pin 2: Ext 1 left phase.
Pin 3: Ext 1 right phase.
Pin 4: Ext 2 left phase.
Pin 5: Ext 2 right phase.
Pin 6: Ext 1 left non-phase.
Pin 7: Ext 1 right non-phase.
Pin 8: Ext 2 left non-phase.
Pin 9: Ext 2 right non-phase.
Studio Headphones Connector
This standard 6.35mm jack socket is the output for the studio
headphones, and has the following connections;
Tip: Left channel.
Ring: Right channel.
Sleeve: Screen.
Studio Monitor Connector
This standard 6.35mm jack socket is the output for the studio monitor
loudspeakers, and has the following connections;
Tip: Left channel.
Ring: Right channel.
Sleeve: Screen.
A suitable amplier should be used to send this signal to the
loudspeakers, or connect active loudspeakers directly to this output.
