S2 User Handbook
115
17 S2-ODAF/S2-ODA Digital Output AUD
Channel With & Without Master Fader
(Version 2)
A change was made to the hardware and rmware of the
S2-ODAF/S2-ODA modules around January 2008. Modules
prior to this date are likely to be Version 1, modules after
this date are likely to be Version 2. Externally, the only way
to check the Version number of this module which has been
tted into your S2, is to look at the layout of the connectors
on the rear panel. If the OUTPUTS AND REMOTES connector
is at the bottom of the panel (see page 113), then you have a
Version 2 module. If these connectors are nearer the middle
of the panel (see page 106), then it is Version 1.
Panel Controls
Meter Display Selection
When the meters in the meterbridge are plugged up to
the “Monitor Meter” position they will display the selected
signal from the electronically interlocking PGM, AUD, or CR
MON buttons. The CR MON signal source is the presenter’s
headphone on the control room monitor channel, pre
talkback and level control. This signal could be PGM, AUD,
EXT 1, EXT 2, or PFL, as selected by the presenter.
Lock Indicator
The illuminated lock indicator shows that the digital output
is locked to the onboard master clock, incoming Word
clock or AES/EBU, S/PDIF compatible sync signal. If sync is
lost then the indicator will ash. The channel automatically
searches for a sync signal on the Word Clock, or the selected
digital input, and automatically locks to a valid sync clock.
To disable locking to the AES/EBU or S/PDIF input, simply
remove jumpers J10 and J11.
Fader (S2-ODAF only)
The 100mm VCA fader provides unity gain when fully open.
Rear Panel
AES/EBU AUD Output Connector
This XLR 3 pin socket is used for the AES/EBU Output, and
has the following connections;
Pin 1: Screen.
Pin 2: Phase.
Pin 3: Non-phase.

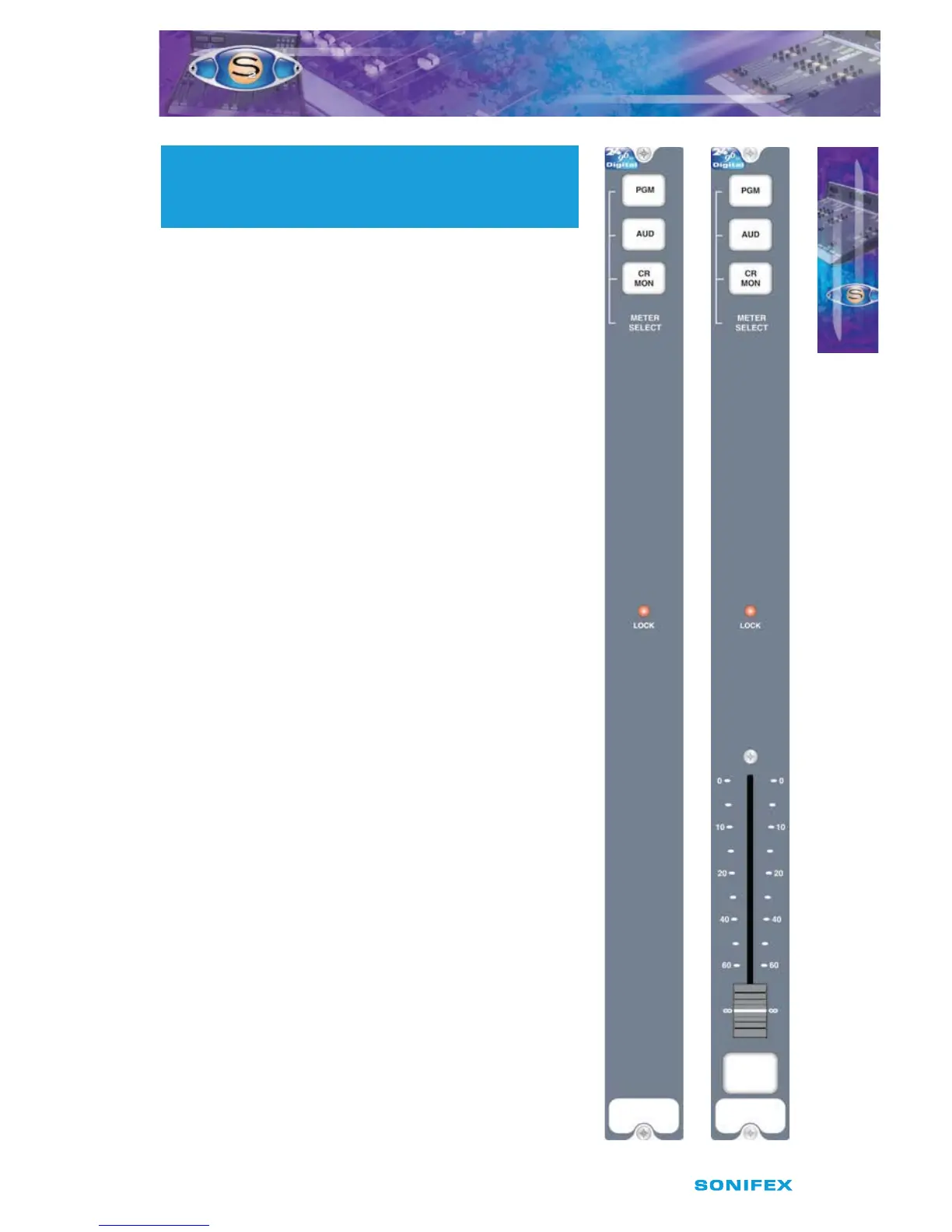

S2- ODA S2- ODAF
17
S2ODAF/S2ODA DIGITAL OUTPUT AUD CHANNEL
WITH & WITHOUT MASTER FADER VERSION 2
S2ODAF/S2ODA DIGITAL OUTPUT
AUD CHANNEL WITH & WITHOUT
MASTER FADER VERSION 2
