116
S2 User Handbook
17
S/PDIF AUD Output Connector
This phono connector is used for the S/PDIF Output. There are on board
jumpers to set up this output in place of the AES/EBU output.
Inner: Signal.
Outer: Screen.
S/PDIF Sync Input Connector
This phono connector is used for the S/PDIF sync input. There is an on
board jumper to set up this input in place of the AES/EBU sync input.
Inner: Signal.
Outer: Screen.
Output & Remotes Connector
This 15 pin D type socket provides outputs for the following
channel functions;
t "6%BOBMPHVFPVUQVUT
t 4UVEJPNVUJOHSFMBZT5IFNVUFSFMBZJTBEPVCMFQPMFSFMBZ"
at 30VDC max
The connector pin-out is as follows;
Pin 1: Chassis ground.
Pin 2: AUD left output phase.
Pin 3: AUD right output phase.
Pin 4: No connection.
Pin 5: No connection.
Pin 6: No connection.
Pin 7: Studio mute relay contact 1A (makes to pin 14).
Pin 8: Studio mute relay contact 2A (makes to pin 15).
Pin 9: AUD left output non-phase.
Pin 10: AUD right output non-phase.
Pin 11: No connection.
Pin 12: No connection.
Pin 13: No connection.
Pin 14: Studio mute relay contact 1B.
Pin 15: Studio mute relay contact 2B.
Meterbridge Interconnect
An internal ribbon cable to the meterbridge is tted to the AUD output channel and appears
via the rear panel.
Word Clock Input Connector
This 75 ohm BNC socket is used for the word clock input, and has the following connections;
Inner: Signal.
Outer: Screen.
AES/EBU Sync Input Connector
This XLR 3 pin socket is used for AES/EBU Sync Input, and has the following connections;

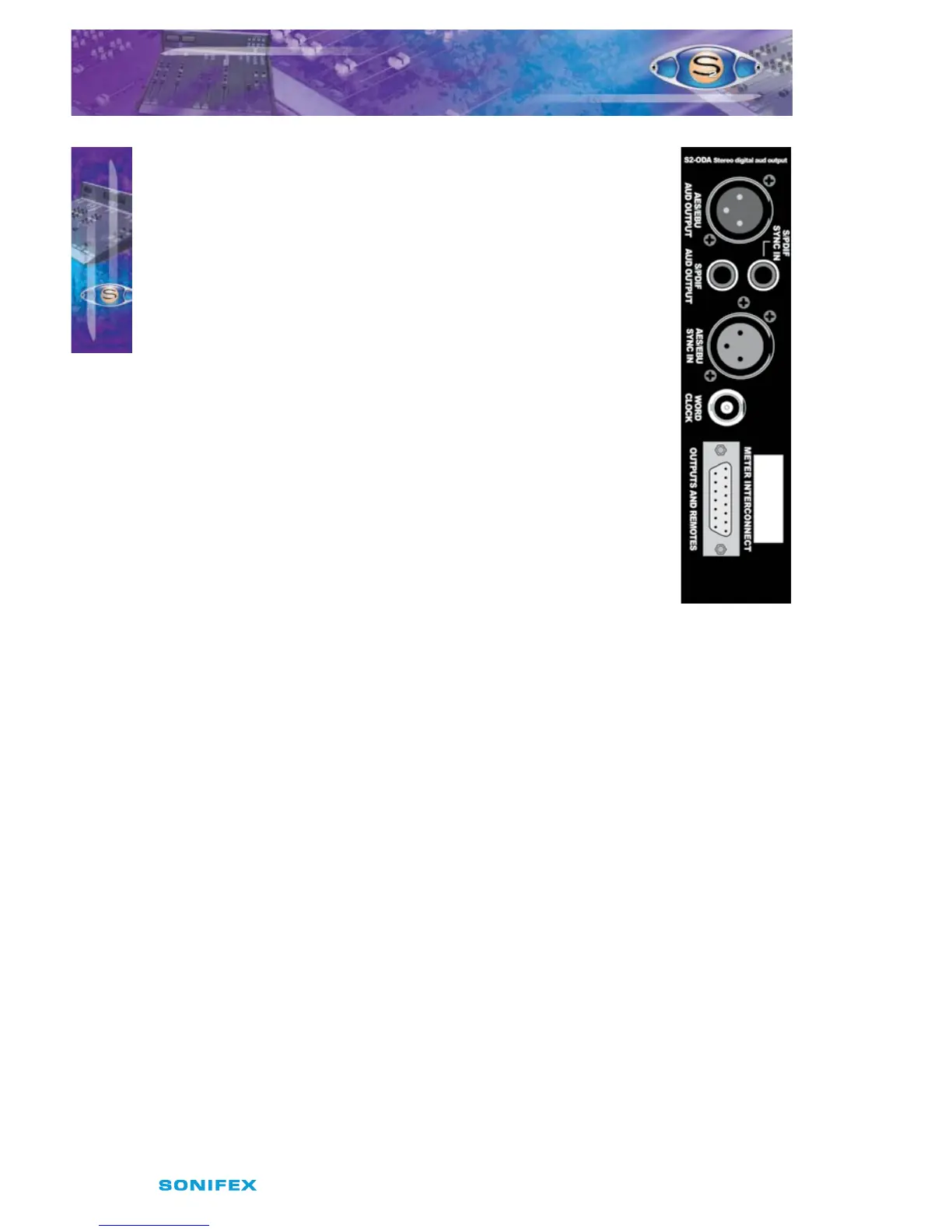

S2ODAF/S2ODA DIGITAL OUTPUT AUD CHANNEL
WITH & WITHOUT MASTER FADER VERSION 2
S2ODAF/S2ODA DIGITAL OUTPUT
AUD CHANNEL WITH & WITHOUT
MASTER FADER VERSION 2
