S2ODAF/S2ODA DIGITAL OUTPUT AUD CHANNEL
WITH & WITHOUT MASTER FADER VERSION 1
S2ODAF/S2ODA DIGITAL OUTPUT
AUD CHANNEL WITH & WITHOUT
MASTER FADER VERSION 1

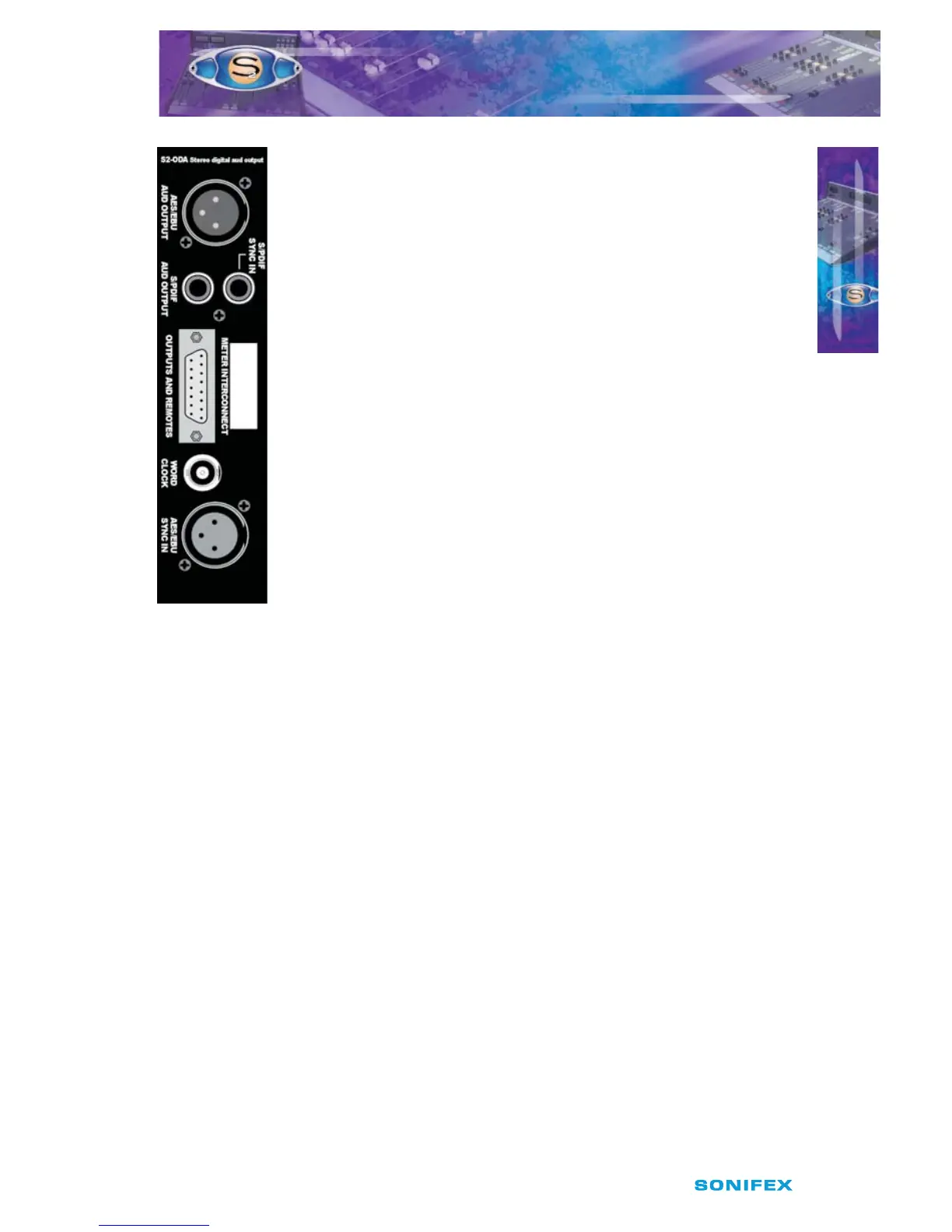

Rear Panel
AES/EBU AUD Output Connector
This XLR 3 pin socket is used for the AES/EBU Output, and has the
following connections;
Pin 1: Screen.
Pin 2: Phase.
Pin 3: Non-phase.
S/PDIF AUD Output Connector
This phono connector is used for the S/PDIF Output. There are on board
jumpers to set up this output in place of the AES/EBU output.
Inner: Signal.
Outer: Screen.
S/PDIF Sync Input Connector
This phono connector is used for the S/PDIF sync input. There is an on
board jumper to set up this input in place of the AES/EBU sync input.
Inner: Signal.
Outer: Screen.
Output & Remotes Connector
This 15 pin D type socket provides outputs for the following channel
functions;
t "6%BOBMPHVFPVUQVUT
t 4UVEJPNVUJOHSFMBZT5IFNVUFSFMBZJTBEPVCMFQPMFSFMBZ"BU
30VDC max
The connector pin-out is as follows;
Pin 1: Chassis ground.
Pin 2: AUD left output phase.
Pin 3: AUD right output phase.
Pin 4: No connection.
Pin 5: No connection.
Pin 6: No connection.
Pin 7: Studio mute relay contact 1A (makes to pin 14).
Pin 8: Studio mute relay contact 2A (makes to pin 15).
Pin 9: AUD left output non-phase.
Pin 10: AUD right output non-phase.
Pin 11: No connection.
Pin 12: No connection.
Pin 13: No connection.
Pin 14: Studio mute relay contact 1B.
Pin 15: Studio mute relay contact 2B.
