Sonifex S2 - Fig 15-1: S2 Digital PGM Output Board Layout; Fig 15-2: S2 Digital PGM Output with Fader Board Layout

S2 User Handbook
105
Right Lim
SYM
Set Gain Set Threshold
Left Lim
SYM
P6
P8
P9
Right SYM
Left SYM
P2
P1
P7
P3
Set VCA
0dB
P4
P5
J1 J2
J3J5 J7
J4J6 J8
J13 J9
LK46
LK42
Fader
Program
J11
J12
J10
AES
SPDIF
AES
SPDIF
J11
J10
J12
AES
SPDIF
AES
SPDIF
J3J5 J7
J4J6 J8
J9
J13
LK42
Program
P4
P5
P6
Right Lim
SYM
Left Lim
SYM
P8
P9
Set Gain Set Threshold
P7
J1 J2

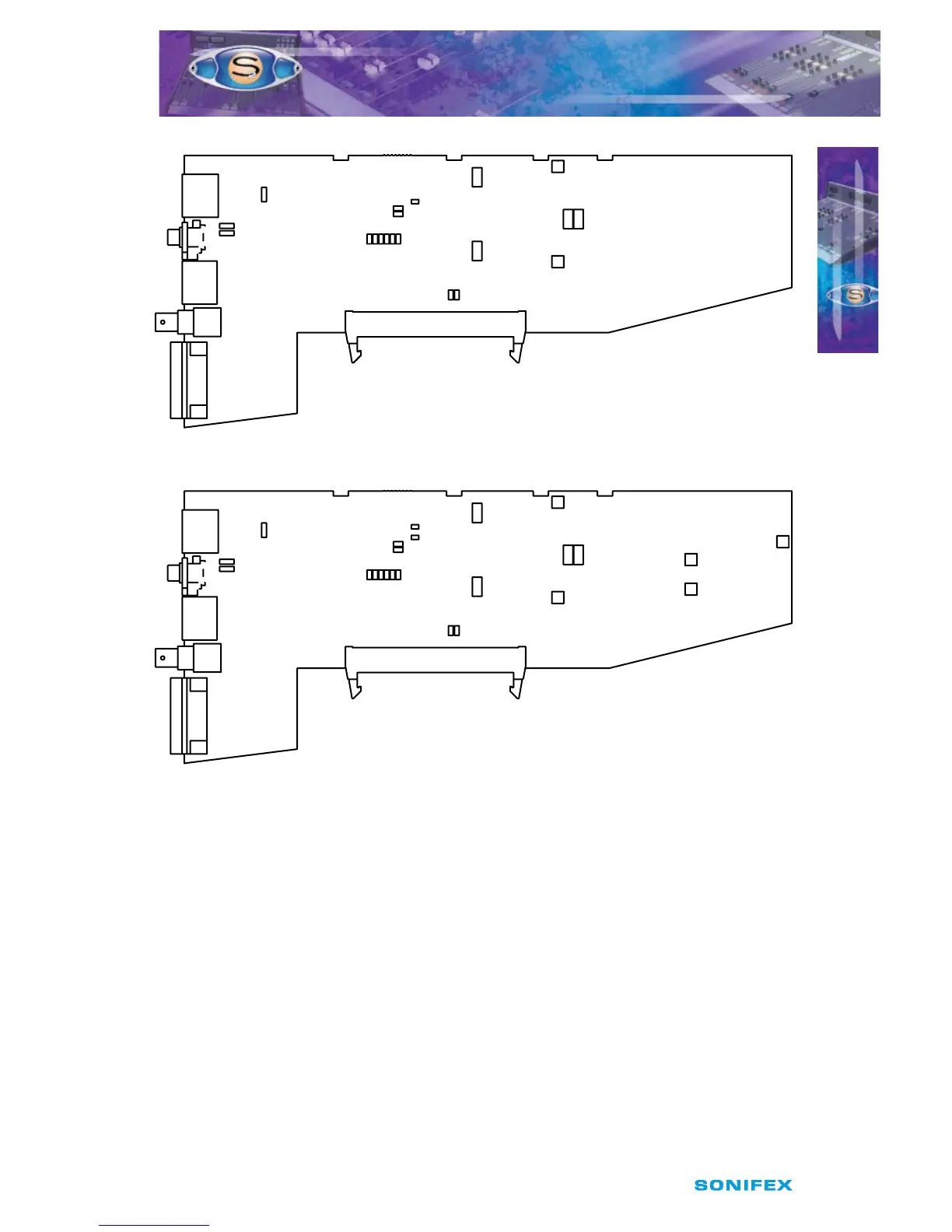

Fig 15-1 : S2 Digital PGM Output Board Layout.
Fig 15-2 : S2 Digital PGM Output With Fader Board Layout.
Cleanfeed Terminations
If the console is supplied without Telco channels then J1 and J2 will be tted to terminate
the cleanfeed mix busses. With one Telco channel only J2 is tted and with two Telco
channels no jumpers are tted. There is no default setting.
Synchronisation Mode and Sample Rate
The following jumpers, J3 to J6 and J9 on V2, are used for setting the Sync Mode and Sample
Rate of the digital output.
In Master mode, the digital output sample rate is simply set by, and locked to, the internal
on-board clock generator. No sync signal is used or required.
In Auto mode the sample rate follows the sync input. When the sync signal is not present
the sample rate will be set by, and locked to, the internal on-board clock generator at a
frequency determined by the jumpers.
S2ODPF/S2ODP DIGITAL OUTPUT
PGM CHANNEL WITH & WITHOUT
MASTER FADER VERSION 2
S2ODPF/S2ODP DIGITAL OUTPUT PGM CHANNEL
WITH & WITHOUT MASTER FADER VERSION 2
