6 S2-CMM Mic/Mic Channel With EQ

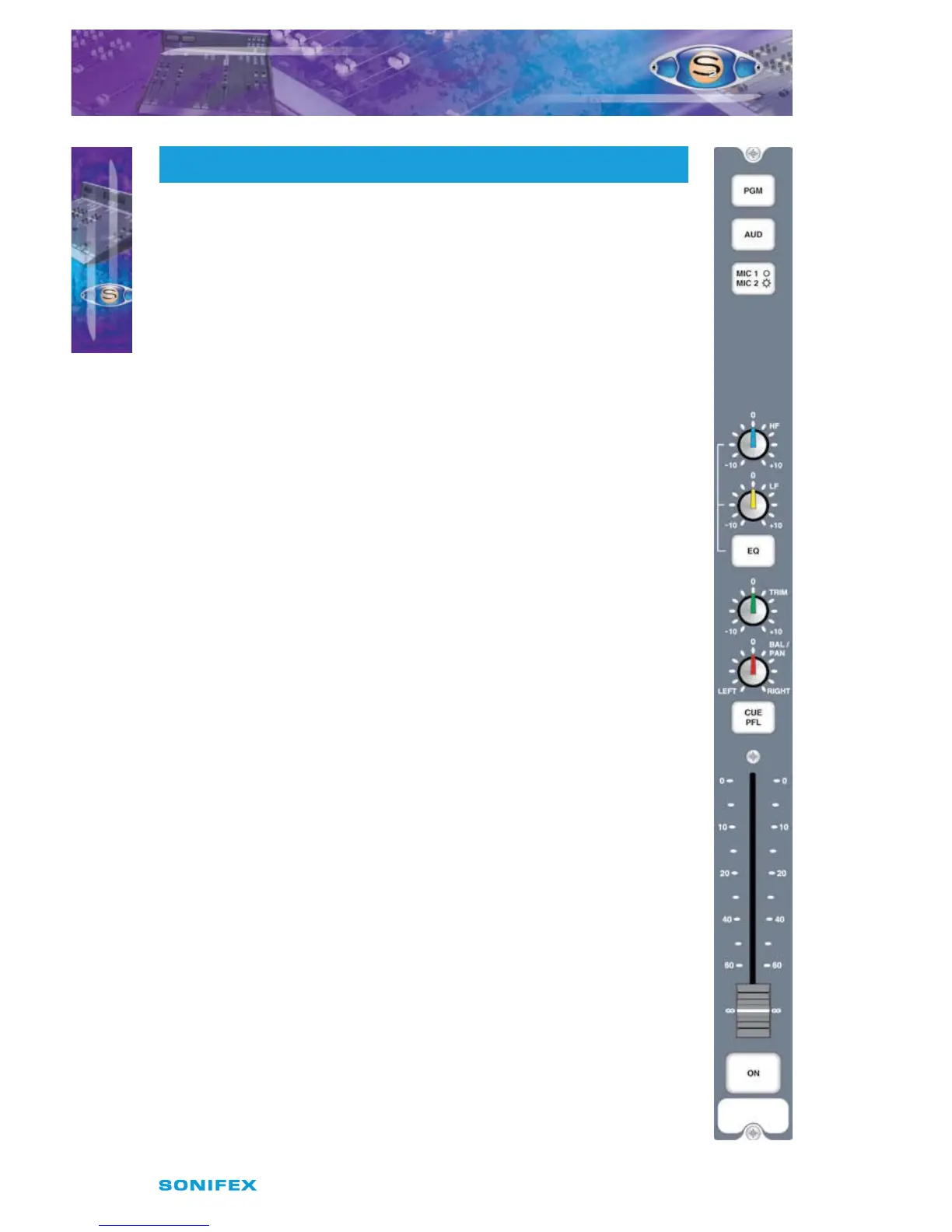

Panel Controls
PGM and AUD Selection
Selecting the PGM, AUD buttons routes the channel audio output to
the PGM and/or AUD mix busses. The buttons are illuminated in green
to indicate the routing status. Changing the status of the PGM button is
inhibited when the channel is “live”.
MIC 1/MIC 2 Selection
Selecting the MIC 1/MIC 2 button changes the channel input connection
between MIC 1 and MIC 2. The button is illuminated in red to indicate when
MIC 2 is selected. The operation of the button is inhibited when the channel
is “live”.
Equalisation Controls
The HF and LF controls are used to adjust the equalisation of the signal.
The HF control boosts and cuts the signal by ±7dB at 6.5kHz. The LF control
boosts and cuts the signal by ±7dB at 100Hz. The EQ button places the
equalisation in and out of the signal path. The button is illuminated in yellow
when the EQ is active.
TRIM Control
The TRIM control provides an additional ±12dB of gain to ne tune the input
signal level.
BAL/PAN Control
The BAL/PAN control is used to pan the mono input signal in the stereo
image. Full anti-clockwise pans the signal to the left and increases the signal
by 3dB (right channel reduces by 70dB); full clockwise pans the signal to the
right and increases the signal by 3dB (left channel reduces by 70dB).
CUE/PFL Selection
Selecting the CUE/PFL button routes the pre-fader input signal to the
monitoring system where the signal can be heard via headphones and/or
loudspeakers. The level may be checked on meters and adjusted via the Trim
control and panned via the Bal control. The button is illuminated in green
when CUE/PFL is active. There is a jumper option to cancel the CUE/PFL
selection when the fader is raised. This button works with both a momentary
and latched operation. If held down, the selection is cancelled when
released, otherwise the button is alternate action.
Fader
The 100mm VCA fader provides unity gain when fully open. The channel
input signal is routed to the outputs whenever the fader is open, the ON
button is selected and either or both of the routing buttons are selected.
